MACHINE LIGHT | SLIM LED

Slim LED - Industrial, IP67-rated, linear, machine LED light



SLIM LED – LEDs are directly attached to a flexible circuit board, making it impervious to vibration or impact. With a small form factor, lengths from 7.7- to 46-inches and measures a mere 1-inch in diameter, it is ideal for areas where space is limited. With a protection rating of IP67, the Slim LED is a complete waterproof machine light, however, it is not suitable for situations where coolants or lubricants are present.

  • Minimal installation dimensions
  • 5400K color temperature
  • May be connected directly to 24V current
  • 50,000 hours of optimum light due to latest LED technology
  • Voltage: 22-29V DC
  • Impact and vibration resistant
  • Lighting direction individually adjustable
  • Lengths of 7.7 to 46 inches available
  • IP67 rated
  • *Not suitable for environments where coolants or lubricants are present



Description Part Number Spec
Sheet
IES
 EXTERNAL OPERATING DEVICES
SLIM LED, LIQ 6, 24V DC, 4W LED, 7.7", IP67, adjustable, clear lens
112544000-00001328
SLIM LED, LIQ 6, 24V DC, 4W LED, 7.7", IP67, adjustable, satine lens
112544005-00011100
SLIM LED, LIQ 6, 24V DC, 4W LED, 7.7", IP67, adjustable, no lens
112544010-00011101
SLIM LED, LIQ 6, 24V DC, 4W LED, 7.7", IP67, non-adjustable w/flange, clear lens
112545000-00001351
SLIM LED, LIQ 6, 24V DC, 4W LED, 7.7", IP 67,non-adjustable w/flange, satine lens
112545005-00011120
SLIM LED, LIQ 6, 24V DC, 4W LED, 7.7", IP67, non-adjustable w/flange, no lens
112545010-00011121
SLIM LED, LIQ 12, 24V DC, 8W LED, 13.2", IP67, adjustable, clear lens
112544001-00011081
SLIM LED, LIQ 12, 24V DC, 8W LED, 13.2", IP67, adjustable, satine lens
112544006-00011088
SLIM LED, LIQ 12, 24V DC, 8W LED, 13.2", IP67, adjustable, no lens
112544011-00011102
SLIM LED, LIQ 12, 24V DC, 8W LED, 13.2", IP67, non-adjustable w/flange, clear lens
112545001-00011125
SLIM LED, LIQ 12, 24V DC, 8W LED, 13.2", IP67, non-adjustable w/flange, satine lens
112545006-00011128
SLIM LED, LIQ 12, 24V DC, 8W LED, 13.2", IP67, non-adjustable w/flange, no lens
112545011-00011129
SLIM LED, LIQ 24, 24V DC, 15W LED, 24.2", IP67, adjustable, clear lens
112544002-00011082
SLIM LED, LIQ 24, 24V DC, 15W LED, 24.2", IP67, adjustable, satine lens
112544007-00011085
SLIM LED, LIQ 24, 24V DC, 15W LED, 24.2", IP67, adjustable, no lens
112544012-00011103
SLIM LED, LIQ 24, 24V DC, 15W LED, 24.2", IP67, non-adjustable w/flange, clear lens
112545002-00011130
SLIM LED, LIQ 24, 24V DC, 15W LED, 24.2", IP67, non-adjustable w/flange, satine lens
112545007-00011131
SLIM LED, LIQ 24, 24V DC, 15W LED, 24.2", IP67, non-adjustable w/flange, no lens
112545012-00011132
SLIM LED, LIQ 36, 24V DC, 22W LED, 35.2", IP67, adjustable, clear lens
112544003-00011083
SLIM LED, LIQ 36, 24V DC, 22W LED, 35.2", IP67, adjustable, satine lens
112544008-00011086
SLIM LED, LIQ 36, 24V DC, 22W LED, 35.2", IP67, adjustable, no lens
112544013-00011104
SLIM LED, LIQ 36, 24V DC, 22W LED, 35.2", IP67, non-adjustable w/flange, clear lens
112545003-00011133
SLIM LED, LIQ 36, 24V DC, 22W LED, 35.2", IP67, non-adjustable w/flange, satine lens
112545008-00011134
SLIM LED, LIQ 36, 24V DC, 22W LED, 35.2", IP67, non-adjustable w/flange, no lens
112545013-00011135
SLIM LED, LIQ 48, 24V DC, 29W LED, 46.3", IP67, adjustable, clear lens
112544004-00011084
SLIM LED, LIQ 48, 23-25V DC, 29W LED, 46.3", IP67, adjustable, satine lens
112544009-00011087
SLIM LED, LIQ 48, 24V DC, 29W LED, 46.3", IP67, adjustable, no lens
112544014-00011105
SLIM LED, LIQ 48, 24V DC, 29W LED, 46.3", IP67, non-adjustable w/flange, clear lens
112545004-00011136
SLIM LED, LIQ 48, 24V DC, 29W LED, 46.3", IP67,non-adjustable w/flange, satine lens
112545009-00011137
SLIM LED, LIQ 48, 24V DC, 29W LED, 46.3", IP67, non-adjustable w/flange, no lens
112545014-00011138

Narrow your search [ Reset Selections ]

Choose the right part number by selecting the correct options below. Reset your selection to start over.

Length




Housing

Lens Type


Wattage





Part No: 112544000-00001328
Model: LIQ 6
Length: 7.7"
Housing: Adjustable
Lens Type: Clear Lens
Wattage: 3.5W
Spec Sheet:  112544000-00001328.pdf



Part No: 112544005-00011100
Model: LIQ 6
Length: 7.7"
Housing: Adjustable
Lens Type: Satine Lens
Wattage: 3.5W
Spec Sheet:  112544005-00011100.pdf



Part No: 112544010-00011101
Model: LIQ 6
Length: 7.7"
Housing: Adjustable
Lens Type: No Lens
Wattage: 3.5W
Spec Sheet:  112544010-00011101.pdf



Part No: 112545000-00001351
Model: LIQ 6
Length: 7.7"
Housing: Non Adjustable, w/Flange
Lens Type: Clear Lens
Wattage: 3.5W
Spec Sheet:  112545000-00001351.pdf



Part No: 112545005-00011120
Model: LIQ 6
Length: 7.7"
Housing: Non Adjustable, w/Flange
Lens Type: Satine Lens
Wattage: 3.5W
Spec Sheet:  112545005-00011120.pdf



Part No: 112545010-00011121
Model: LIQ 6
Length: 7.7"
Housing: Non Adjustable, w/Flange
Lens Type: No Lens
Wattage: 3.5W
Spec Sheet:  112545010-00011121.pdf



Part No: 112544001-00011081
Model: LIQ 12
Length: 13.2"
Housing: Adjustable
Lens Type: Clear Lens
Wattage: 7W
Spec Sheet:  112544001-00011081.pdf



Part No: 112544006-00011088
Model: LIQ 12
Length: 13.2"
Housing: Adjustable
Lens Type: Satine Lens
Wattage: 7W
Spec Sheet:  112544006-00011088.pdf



Part No: 112544011-00011102
Model: LIQ 12
Length: 13.2"
Housing: Adjustable
Lens Type: No Lens
Wattage: 7W
Spec Sheet:  112544011-00011102.pdf



Part No: 112545001-00011125
Model: LIQ 12
Length: 13.2"
Housing: Non Adjustable, w/Flange
Lens Type: Clear Lens
Wattage: 7W
Spec Sheet:  112545001-00011125.pdf



Part No: 112545006-00011128
Model: LIQ 12
Length: 13.2"
Housing: Non Adjustable, w/Flange
Lens Type: Satine Lens
Wattage: 7W
Spec Sheet:  112545006-00011128.pdf



Part No: 112545011-00011129
Model: LIQ 12
Length: 13.2"
Housing: Non Adjustable, w/Flange
Lens Type: No Lens
Wattage: 7W
Spec Sheet:  112545011-00011129.pdf



Part No: 112544002-00011082
Model: LIQ 24
Length: 24.2"
Housing: Adjustable
Lens Type: Clear Lens
Wattage: 14W
Spec Sheet:  112544002-00011082.pdf



Part No: 112544007-00011085
Model: LIQ 24
Length: 24.2"
Housing: Adjustable
Lens Type: Satine Lens
Wattage: 14W
Spec Sheet:  112544007-00011085.pdf



Part No: 112544012-00011103
Model: LIQ 24
Length: 24.2"
Housing: Adjustable
Lens Type: No Lens
Wattage: 14W
Spec Sheet:  112544012-00011103.pdf



Part No: 112545002-00011130
Model: LIQ 24
Length: 24.2"
Housing: Non Adjustable, w/Flange
Lens Type: Clear Lens
Wattage: 14W
Spec Sheet:  112545002-00011130.pdf



Part No: 112545007-00011131
Model: LIQ 24
Length: 24.2"
Housing: Non Adjustable, w/Flange
Lens Type: Satine Lens
Wattage: 14W
Spec Sheet:  112545007-00011131.pdf



Part No: 112545012-00011132
Model: LIQ 24
Length: 24.2"
Housing: Non Adjustable, w/Flange
Lens Type: No Lens
Wattage: 14W
Spec Sheet:  112545012-00011132.pdf



Part No: 112544003-00011083
Model: LIQ 36
Length: 35.2"
Housing: Adjustable
Lens Type: Clear Lens
Wattage: 21W
Spec Sheet:  112544003-00011083.pdf



Part No: 112544008-00011086
Model: LIQ 36
Length: 35.2"
Housing: Adjustable
Lens Type: Satine Lens
Wattage: 21W
Spec Sheet:  112544008-00011086.pdf



Part No: 112544013-00011104
Model: LIQ 36
Length: 35.2"
Housing: Adjustable
Lens Type: No Lens
Wattage: 21W
Spec Sheet:  112544013-00011104.pdf



Part No: 112545003-00011133
Model: LIQ 36
Length: 35.2"
Housing: Non Adjustable, w/Flange
Lens Type: Clear Lens
Wattage: 21W
Spec Sheet:  112545003-00011133.pdf



Part No: 112545008-00011134
Model: LIQ 36
Length: 35.2"
Housing: Non Adjustable, w/Flange
Lens Type: Satine Lens
Wattage: 21W
Spec Sheet:  112545008-00011134.pdf



Part No: 112545013-00011135
Model: LIQ 36
Length: 35.2"
Housing: Non Adjustable, w/Flange
Lens Type: No Lens
Wattage: 21W
Spec Sheet:  112545013-00011135.pdf



Part No: 112544004-00011084
Model: LIQ 48
Length: 46.3"
Housing: Adjustable
Lens Type: Clear Lens
Wattage: 28W
Spec Sheet:  112544004-00011084.pdf



Part No: 112544009-00011087
Model: LIQ 48
Length: 46.3"
Housing: Adjustable
Lens Type: Satine Lens
Wattage: 28W
Spec Sheet:  112544009-00011087.pdf



Part No: 112544014-00011105
Model: LIQ 48
Length: 46.3"
Housing: Adjustable
Lens Type: No Lens
Wattage: 28W
Spec Sheet:  112544014-00011105.pdf



Part No: 112545004-00011136
Model: LIQ 48
Length: 46.3"
Housing: Non Adjustable, w/Flange
Lens Type: Clear Lens
Wattage: 28W
Spec Sheet:  112545004-00011136.pdf



Part No: 112545009-00011137
Model: LIQ 48
Length: 46.3"
Housing: Non Adjustable, w/Flange
Lens Type: Satine Lens
Wattage: 28W
Spec Sheet:  112545009-00011137.pdf



Part No: 112545014-00011138
Model: LIQ 48
Length: 46.3"
Housing: Non Adjustable, w/Flange
Lens Type: No Lens
Wattage: 28W
Spec Sheet:  112545014-00011138.pdf



Part NoModelLengthHousingLens TypeWattage  Spec Sheet
112544000-00001328 LIQ 6 7.7" Adjustable Clear Lens 3.5W
112544005-00011100 LIQ 6 7.7" Adjustable Satine Lens 3.5W
112544010-00011101 LIQ 6 7.7" Adjustable No Lens 3.5W
112545000-00001351 LIQ 6 7.7" Non Adjustable, w/Flange Clear Lens 3.5W
112545005-00011120 LIQ 6 7.7" Non Adjustable, w/Flange Satine Lens 3.5W
112545010-00011121 LIQ 6 7.7" Non Adjustable, w/Flange No Lens 3.5W
112544001-00011081 LIQ 12 13.2" Adjustable Clear Lens 7W
112544006-00011088 LIQ 12 13.2" Adjustable Satine Lens 7W
112544011-00011102 LIQ 12 13.2" Adjustable No Lens 7W
112545001-00011125 LIQ 12 13.2" Non Adjustable, w/Flange Clear Lens 7W
112545006-00011128 LIQ 12 13.2" Non Adjustable, w/Flange Satine Lens 7W
112545011-00011129 LIQ 12 13.2" Non Adjustable, w/Flange No Lens 7W
112544002-00011082 LIQ 24 24.2" Adjustable Clear Lens 14W
112544007-00011085 LIQ 24 24.2" Adjustable Satine Lens 14W
112544012-00011103 LIQ 24 24.2" Adjustable No Lens 14W
112545002-00011130 LIQ 24 24.2" Non Adjustable, w/Flange Clear Lens 14W
112545007-00011131 LIQ 24 24.2" Non Adjustable, w/Flange Satine Lens 14W
112545012-00011132 LIQ 24 24.2" Non Adjustable, w/Flange No Lens 14W
112544003-00011083 LIQ 36 35.2" Adjustable Clear Lens 21W
112544008-00011086 LIQ 36 35.2" Adjustable Satine Lens 21W
112544013-00011104 LIQ 36 35.2" Adjustable No Lens 21W
112545003-00011133 LIQ 36 35.2" Non Adjustable, w/Flange Clear Lens 21W
112545008-00011134 LIQ 36 35.2" Non Adjustable, w/Flange Satine Lens 21W
112545013-00011135 LIQ 36 35.2" Non Adjustable, w/Flange No Lens 21W
112544004-00011084 LIQ 48 46.3" Adjustable Clear Lens 28W
112544009-00011087 LIQ 48 46.3" Adjustable Satine Lens 28W
112544014-00011105 LIQ 48 46.3" Adjustable No Lens 28W
112545004-00011136 LIQ 48 46.3" Non Adjustable, w/Flange Clear Lens 28W
112545009-00011137 LIQ 48 46.3" Non Adjustable, w/Flange Satine Lens 28W
112545014-00011138 LIQ 48 46.3" Non Adjustable, w/Flange No Lens 28W

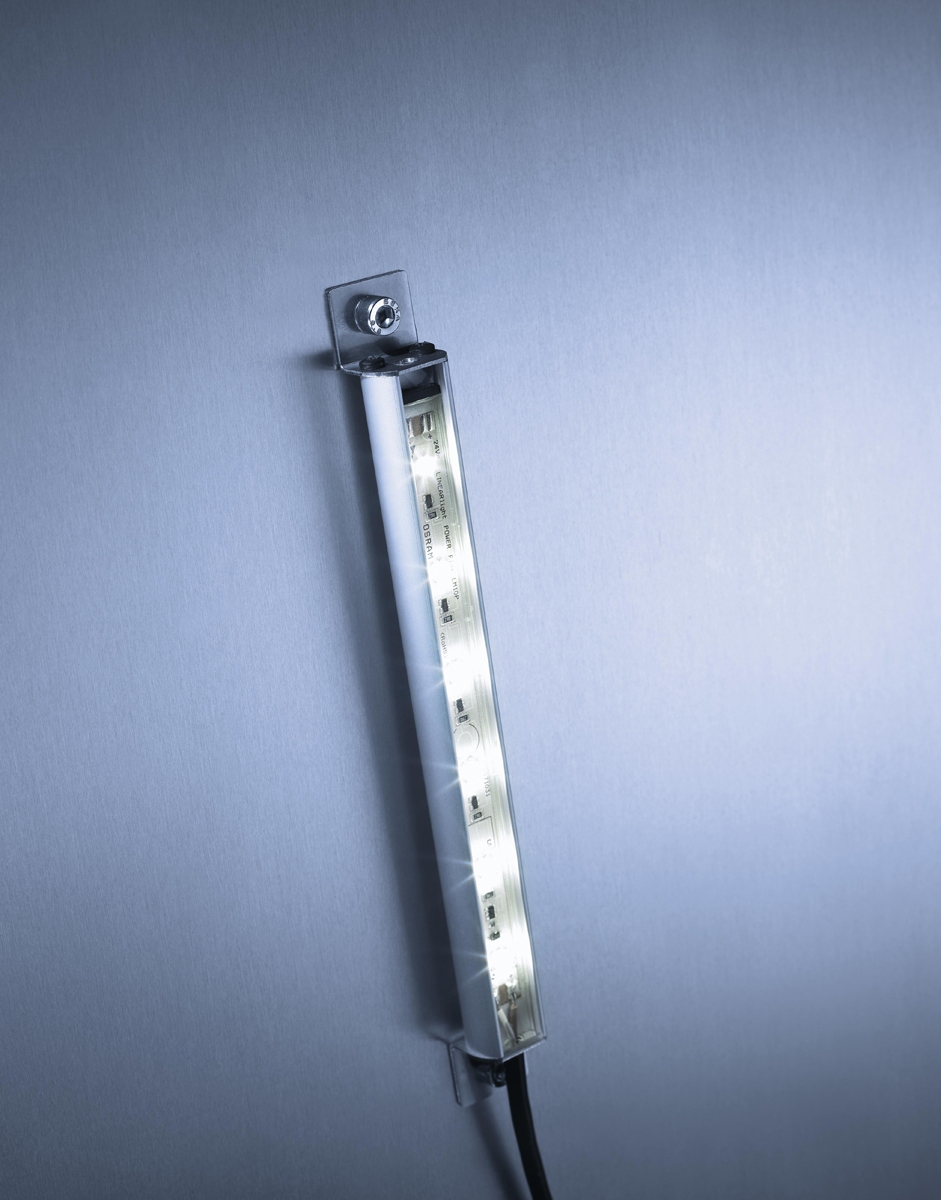

Slim LED fixed

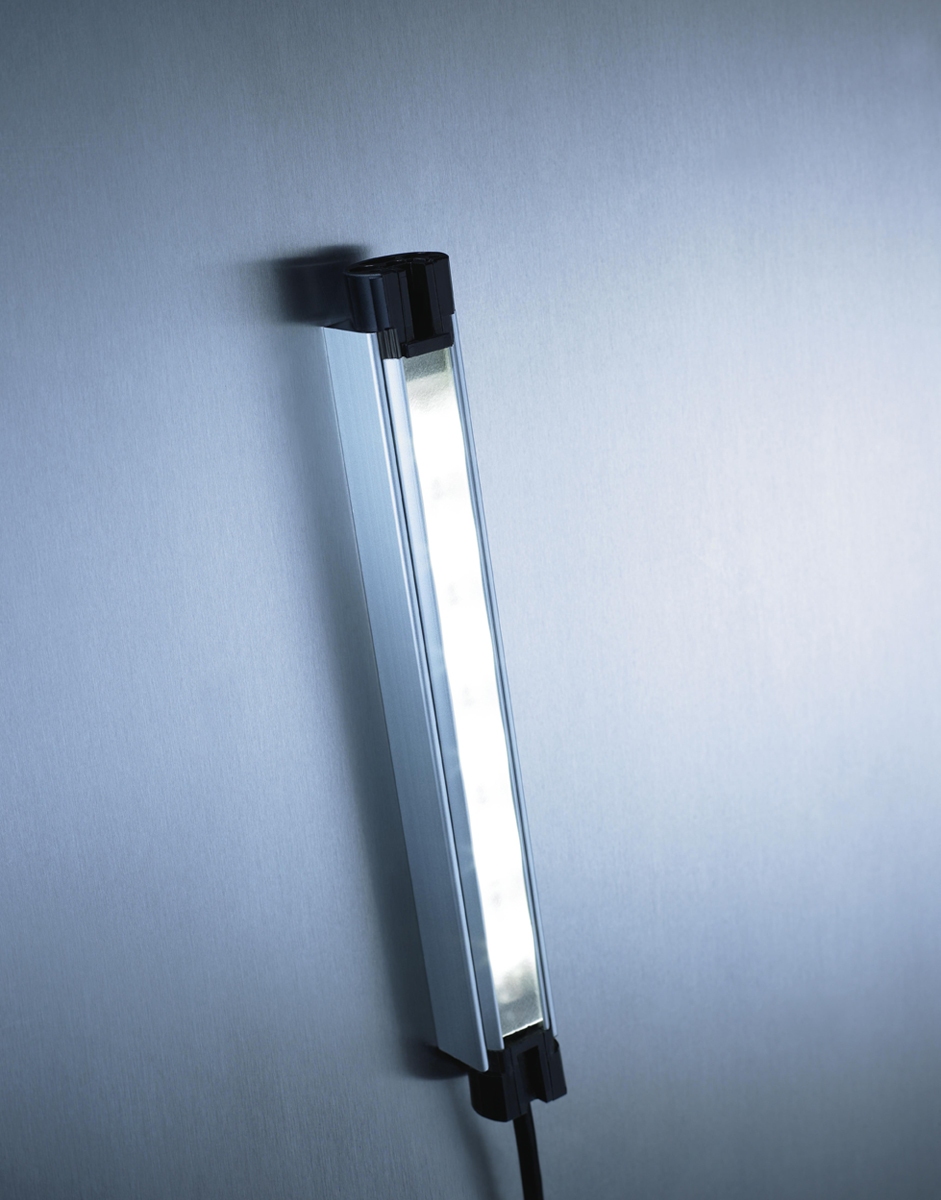

Slim LED adjustable

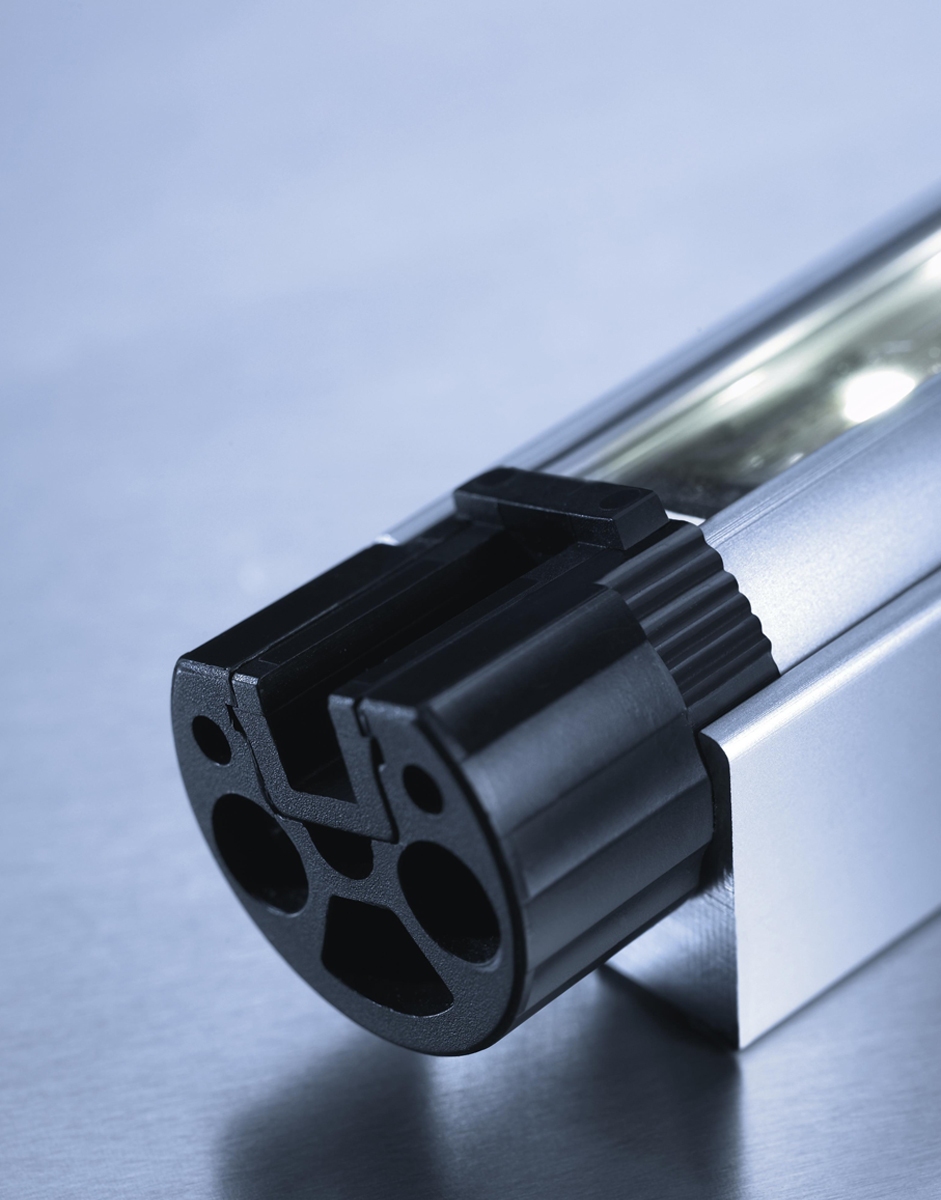

Slim LED CU
Description Part Number  Image
EXTERNAL OPERATING DEVICES
Max Wattage = 20W to run at 100V-277V, 50/60Hz 209585029
Max Wattage = 50W to run at 120V, 50/60Hz 209585030
Max Wattage = 96W to run at 120-277V, 50/60Hz 209585032
