MACHINE LIGHT | MACH LED PLUS.seventy



MACH LED PLUS - LED cnc machine lighting for tight space, LED robotic cell lighting, LED automation lighting

    Features

  • Designed as a simple replacement for classic fluorescent tube lights

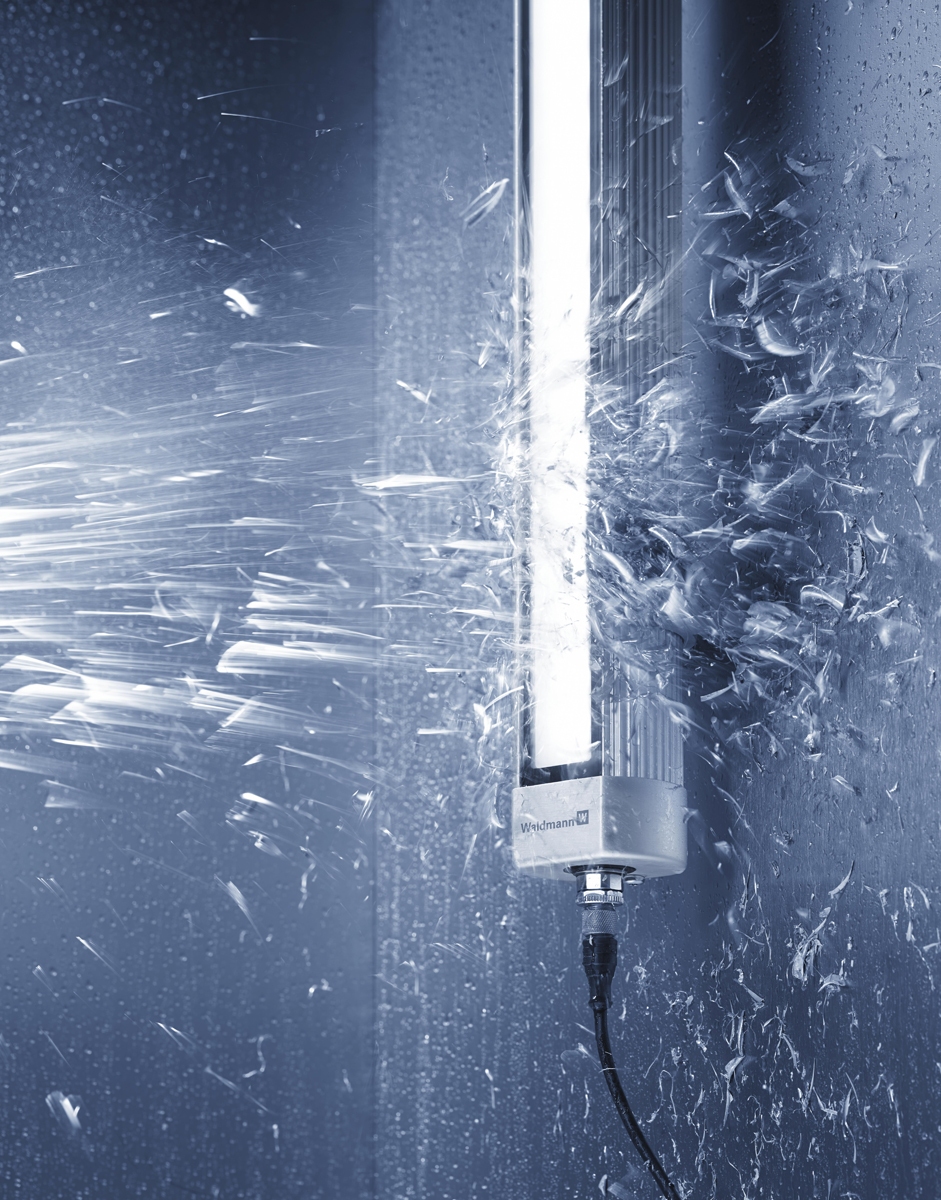

  • Sealed IP67 Rated - highly resistant to coolants and lubricants
  • Up to 70% energy savings in comparison to luminaires with fluorescent lamps
  • 60,000 hour maintenance-free LED light source
  • Specially designed optics for optimum light direction and higher efficiency



  • Six lengths to accommodate any machine configuration

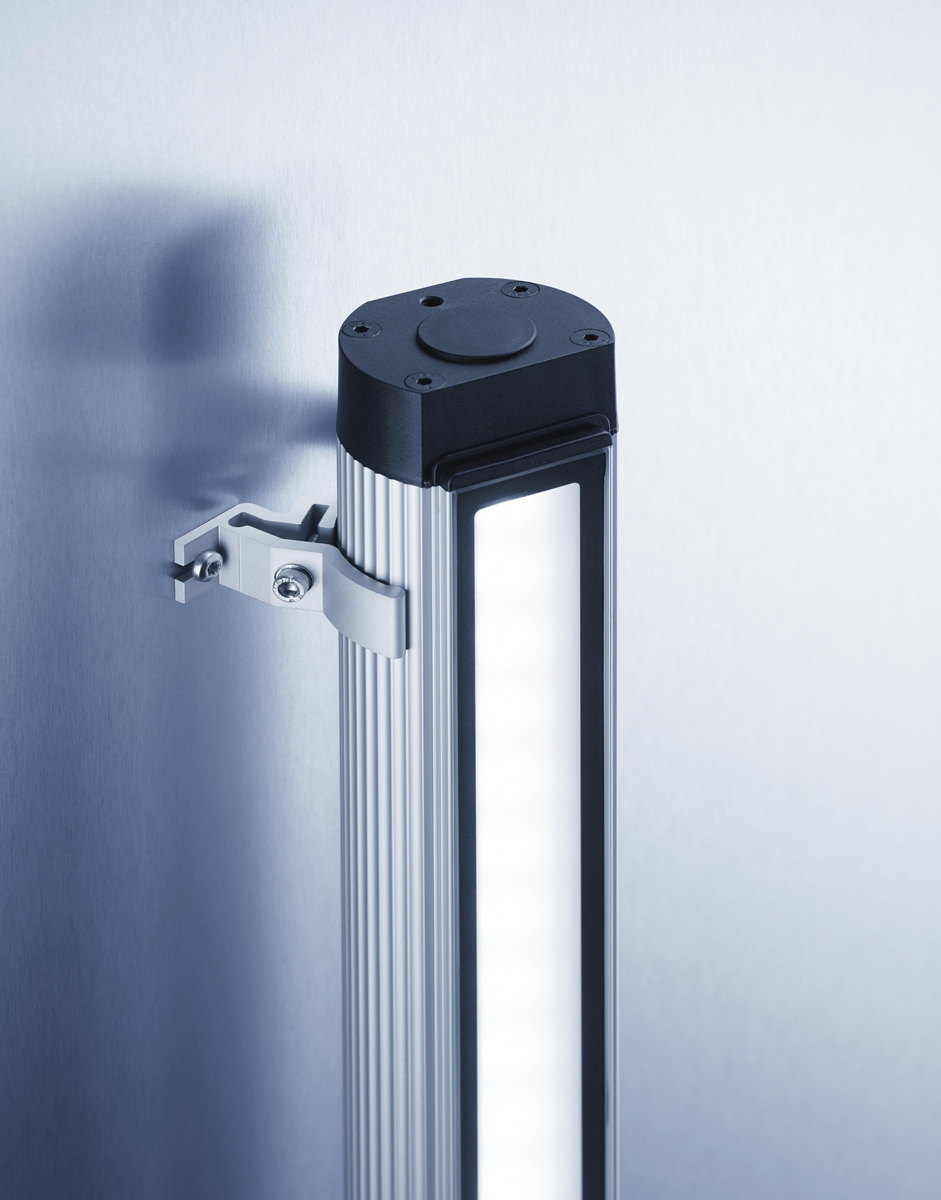

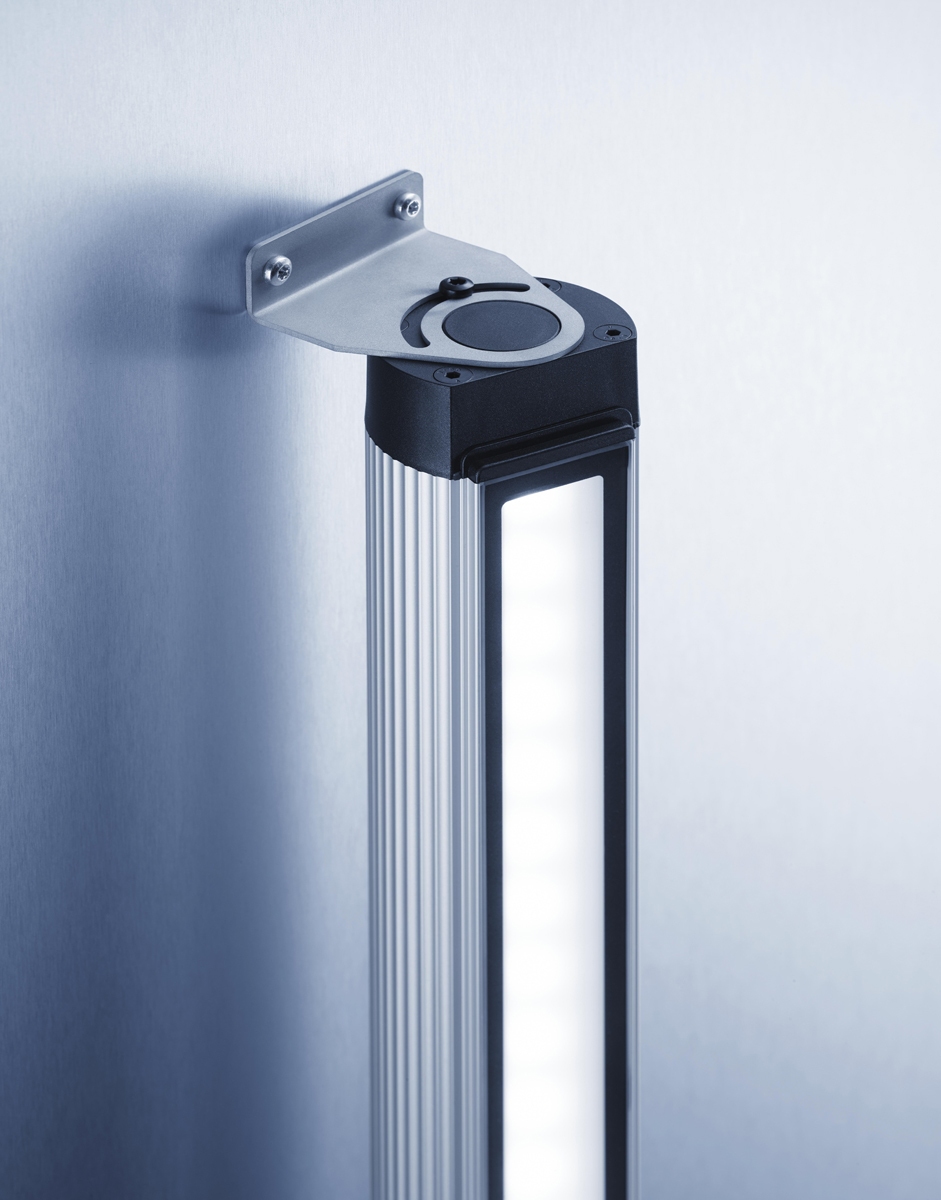

  • Adjustable light direction with various brackets available (see Accessories)

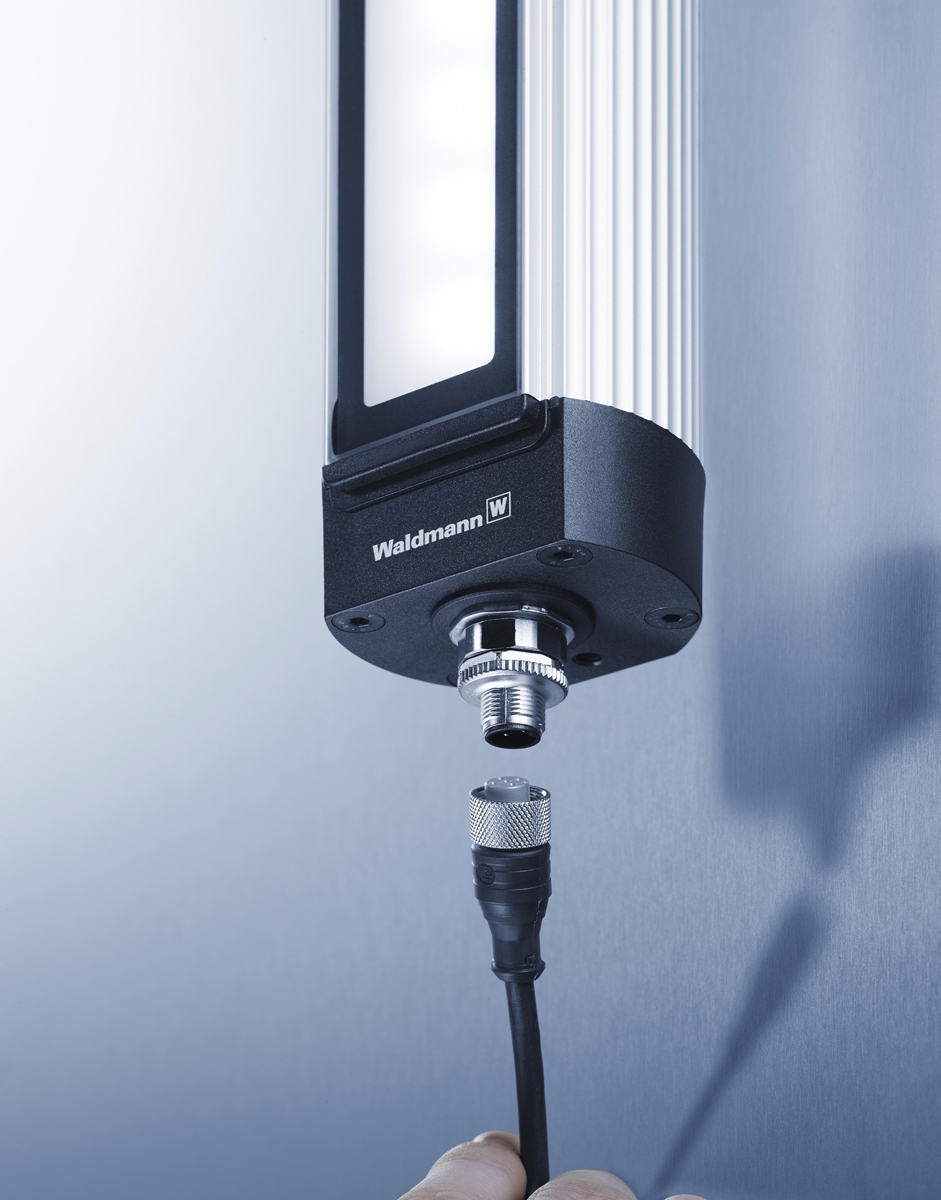

  • 24V or 100-240V with convenient M12 plug connector and cord (included)
  • Robust anodized aluminum housing and 4mm safety glass
  •  ETL /cETL approved

Parts and Specifications

Description Part Number Spec
Sheet
IES


 24V DC VERSIONS


MACH LED PLUS, MQAL 12 S, 7W, ECO VERSION,14.5 in.
113045000-00580702
MACH LED PLUS, MQAL 24 S, 12W, HIGH OUTPUT, 14.5 in.
113047000-00580693
MACH LED PLUS, MQAL 18 S, 10W, ECO, 20.1 in.
113053000-00580588
MACH LED PLUS, MQAL 36 S, 18W, HIGH OUTPUT, 20.1 in.
113055000-00580594
MACH LED PLUS, MQAL 18 S, 10W, ECO VERSION, 22.2 in. 113061000-00580612
MACH LED PLUS, MQAL 36 S, 18W, HIGH OUTPUT, 22.2 in. 113063000-00580618
MACH LED PLUS, MQAL 24 S, 13W, ECO VERSION, 25.6 in. 113069000-00580639
MACH LED PLUS, MQAL 48 S, 24W, HIGH OUTPUT, 25.6 in. 113071000-00580645
MACH LED PLUS, MQAL 30 S, 16W, ECO VERSION, 31.1 in. 113077000-00580663
MACH LED PLUS, MQAL 60 S, 30W, HIGH OUTPUT, 31.1 in.  113124000-00611855
MACH LED PLUS, MQAL 42 S, 22W, ECO VERSION, 42.1 in. 113081000-00580675
MACH LED PLUS, MQAL 84 S, 42W, HIGH OUTPUT, 42.1 in.  113126000-00612973
  **THRU-WIRE VERSIONS AVAILABLE FOR DAISY CHAINING.
     PLEASE CONSULT FACTORY FOR MORE INFORMATION.


100-240V, 50/60Hz VERSIONS


MACH LED PLUS, MQAL 12 N, 9W, ECO VERSION, 14.5 in.  113049000-00580576
MACH LED PLUS, MQAL 24 N, 15W, HIGH OUTPUT,14.5 in.  113051000-00580582
MACH LED PLUS, MQAL 18 N, 12W, ECO VERSION, 20.1 in.  113057000-00580600
MACH LED PLUS, MQAL 36 N, 21W, HIGH OUTPUT, 20.1 in.  113059000-00580606
MACH LED PLUS, MQAL 18 N, 12W, ECO VERSION, 22.2 in.  113065000-00580624
MACH LED PLUS, MQAL 36 N, 21W, HIGH OUTPUT, 22.2 in.  113067000-00580633
MACH LED PLUS, MQAL 24 N, 15W, ECO VERSION, 25.6 in.  113073000-00580651
MACH LED PLUS, MQAL 48 N, 27W, HIGH OUTPUT, 25.6 in.  113075000-00580657
MACH LED PLUS, MQAL 30 N, 20W, ECO VERSION, 31.1 in.  113079000-00580669
MACH LED PLUS, MQAL 42 N, 26W, ECO VERSION, 42.1 in.  113083000-00580684
  **THRU-WIRE VERSIONS AVAILABLE FOR DAISY CHAINING.
     PLEASE CONSULT FACTORY FOR MORE INFORMATION.


Narrow your search [ Reset Selections ]

Choose the right part number by selecting the correct options below. Reset your selection to start over.

Voltage

Length





Light Output



Wattage





Part No: 113053000-00580588
Model: MQAL 18 S
Voltage: 24V DC
Length: 20.1"
Light Output: Eco Version
Wattage: 7W-10W
Spec Sheet:  113053000-00580588.pdf



Part No: 113061000-00580612
Model: MQAL 18 S
Voltage: 24V DC
Length: 22.2"
Light Output: Eco Version
Wattage: 7W-10W
Spec Sheet:  113061000-00580612.pdf



Part No: 113047000-00580693
Model: MQAL 24 S
Voltage: 24V DC
Length: 14.6"
Light Output: High Output Version
Wattage: 11W-15W
Spec Sheet:  113047000-00580693.pdf



Part No: 113065000-00580624
Model: MQAL 18 N
Voltage: 100-240V
Length: 22.2"
Light Output: Eco Version
Wattage: 11W-15W
Spec Sheet:  113065000-00580624.pdf



Part No: 113077000-00580663
Model: MQAL 30 S
Voltage: 24V DC
Length: 31.1"
Light Output: Eco Version
Wattage: 16W-20W
Spec Sheet:  113077000-00580663.pdf



Part No: 113063000-00580618
Model: MQAL 36 S
Voltage: 24V DC
Length: 22.2"
Light Output: High Output Version
Wattage: 16W-20W
Spec Sheet:  113063000-00580618.pdf



Part No: 113079000-00580669
Model: MQAL 30 N
Voltage: 100-240V
Length: 31.1"
Light Output: Eco Version
Wattage: 16W-20W
Spec Sheet:  113079000-00580669.pdf



Part No: 113126000-00612973
Model: MQAL 84 S
Voltage: 24V DC
Length: 42.1"
Light Output: High Output Version
Wattage: 27W-42W
Spec Sheet:  113126000-00612973.pdf



Part No: 113045000-00580702
Model: MQAL 12 S
Voltage: 24V DC
Length: 14.6"
Light Output: Eco Version
Wattage: 7W-10W
Spec Sheet:  113045000-00580702.pdf



Part No: 113049000-00580576
Model: MQAL 12 N
Voltage: 100-240V
Length: 14.6"
Light Output: Eco Version
Wattage: 7W-10W
Spec Sheet:  113049000-00580576.pdf



Part No: 113067000-00580633
Model: MQAL 36 N
Voltage: 100-240V
Length: 22.2"
Light Output: High Output Version
Wattage: 21W-26W
Spec Sheet:  113067000-00580633.pdf



Part No: 113081000-00580675
Model: MQAL 42 S
Voltage: 24V DC
Length: 42.1"
Light Output: Eco Version
Wattage: 21W-26W
Spec Sheet:  113081000-00580675.pdf



Part No: 113083000-00580684
Model: MQAL 42 N
Voltage: 100-240V
Length: 42.1"
Light Output: Eco Version
Wattage: 21W-26W
Spec Sheet:  113083000-00580684.pdf



Part No: 113124000-00611855
Model: MQAL 60 S
Voltage: 24V DC
Length: 31.1"
Light Output: High Output Version
Wattage: 27W-42W
Spec Sheet:  113124000-00611855.pdf



Part No: 113057000-00580600
Model: MQAL 18 N
Voltage: 100-240V
Length: 20.1"
Light Output: Eco Version
Wattage: 11W-15W
Spec Sheet:  113057000-00580600.pdf



Part No: 113069000-00580639
Model: MQAL 24 S
Voltage: 24V DC
Length: 25.6"
Light Output: Eco Version
Wattage: 11W-15W
Spec Sheet:  113069000-00580639.pdf



Part No: 113073000-00580651
Model: MQAL 24 N
Voltage: 100-240V
Length: 25.6"
Light Output: Eco Version
Wattage: 11W-15W
Spec Sheet:  113073000-00580651.pdf



Part No: 113051000-00580582
Model: MQAL 24 N
Voltage: 100-240V
Length: 14.6"
Light Output: High Output Version
Wattage: 11W-15W
Spec Sheet:  113051000-00580582.pdf



Part No: 113055000-00580594
Model: MQAL 36 S
Voltage: 24V DC
Length: 20.1"
Light Output: High Output Version
Wattage: 16W-20W
Spec Sheet:  113055000-00580594.pdf



Part No: 113059000-00580606
Model: MQAL 36 N
Voltage: 100-240V
Length: 20.1"
Light Output: High Output Version
Wattage: 21W-26W
Spec Sheet:  113059000-00580606.pdf



Part No: 113071000-00580645
Model: MQAL 48 S
Voltage: 24V DC
Length: 25.6"
Light Output: High Output Version
Wattage: 21W-26W
Spec Sheet:  113071000-00580645.pdf



Part No: 113048000-00580573
Model: MQAL 24 SD
Voltage: 24V DC
Length: 14.6"
Light Output: High Output,Thru-wire
Wattage: 11W-15W
Spec Sheet:  113048000-00580573.pdf



Part No: 113082000-00580681
Model: MLAQ 42 SD
Voltage: 24V DC
Length: 42.1"
Light Output: Eco,Thru-wire
Wattage: 21W-26W
Spec Sheet:  113082000-00580681.pdf



Part No: 113054000-00580591
Model: MQAL 18 SD
Voltage: 24V DC
Length: 20.1"
Light Output: Eco,Thru-wire
Wattage: 7W-10W
Spec Sheet:  113054000-00580591.jpg



Part No: 113056000-00580597
Model: MLAL 36 SD
Voltage: 24V DC
Length: 20.1"
Light Output: High Output,Thru-wire
Wattage: 16W-20W
Spec Sheet:  113056000-00580597.pdf



Part No: 113062000-00580615
Model: MQAL 18 SD
Voltage: 24V DC
Length: 22.2"
Light Output: Eco,Thru-wire
Wattage: 7W-10W
Spec Sheet:  113062000-00580615.pdf



Part No: 113064000-00580621
Model: MQAL 36 SD
Voltage: 24V DC
Length: 22.2"
Light Output: High Output,Thru-wire
Wattage: 16W-20W
Spec Sheet:  113064000-00580621.pdf



Part No: 113070000-00580642
Model: MQAL 24 SD
Voltage: 24V DC
Length: 25.6"
Light Output: Eco,Thru-wire
Wattage: 11W-15W
Spec Sheet:  113070000-00580642.pdf



Part No: 113066000-00580630
Model: MQAL 18 ND
Voltage: 100-240V
Length: 22.2"
Light Output: Eco,Thru-wire
Wattage: 11W-15W
Spec Sheet:  113066000-00580630.pdf



Part No: 113072000-00580648
Model: MQAL 48 SD
Voltage: 24V DC
Length: 25.6"
Light Output: High Output,Thru-wire
Wattage: 21W-26W
Spec Sheet:  113072000-00580648.pdf



Part No: 113078000-00580666
Model: MQAL 30 SD
Voltage: 24V DC
Length: 31.1"
Light Output: Eco,Thru-wire
Wattage: 16W-20W
Spec Sheet:  113078000-00580666.pdf



Part No: 113125000-00612844
Model: MQAL 60 SD
Voltage: 24V DC
Length: 31.1"
Light Output: High Output,Thru-wire
Wattage: 27W-42W
Spec Sheet:  113125000-00612844.pdf



Part No: 113122000-00609807
Model: MQAL 84 SD
Voltage: 24V DC
Length: 42.1"
Light Output: High Output,Thru-wire
Wattage: 27W-42W
Spec Sheet:  113122000-00609807.pdf



Part No: 113068000-00580636
Model: MQAL 36 ND
Voltage: 100-240V
Length: 22.2"
Light Output: High Output,Thru-wire
Wattage: 21W-26W
Spec Sheet:  113068000-00580636.pdf



Part No: 113074000-00580654
Model: MQAL 24 ND
Voltage: 100-240V
Length: 25.6"
Light Output: Eco,Thru-wire
Wattage: 11W-15W
Spec Sheet:  113074000-00580654.pdf



Part No: 113076000-00580660
Model: MQAL 48 ND
Voltage: 100-240V
Length: 25.6"
Light Output: High Output,Thru-wire
Wattage: 27W-42W
Spec Sheet:  113076000-00580660.pdf



Part No: 113080000-00580672
Model: MQAL 30 ND
Voltage: 100-240V
Length: 31.1"
Light Output: Eco,Thru-wire
Wattage: 16W-20W
Spec Sheet:  113080000-00580672.pdf



Part No: 113084000-00580690
Model: MQAL 42 ND
Voltage: 100-240V
Length: 42.1"
Light Output: Eco,Thru-wire
Wattage: 21W-26W
Spec Sheet:  113084000-00580690.pdf



Part No: 113075000-00580657
Model: MQAL 48 N
Voltage: 100-240V
Length: 25.6"
Light Output: High Output Version
Wattage: 27W-42W
Spec Sheet:  113075000-00580657.pdf



Part No: 113050000-00580579
Model: MQAL 12 ND
Voltage: 100-240V
Length: 14.6"
Light Output: Eco,Thru-wire
Wattage: 7W-10W
Spec Sheet:  113050000-00580579.pdf



Part No: 113058000-00580603
Model: MQAL 18 ND
Voltage: 100-240V
Length: 20.1"
Light Output: Eco,Thru-wire
Wattage: 11W-15W
Spec Sheet:  113058000-00580603.pdf



Part No: 113060000-00580609
Model: MQAL 36 ND
Voltage: 100-240V
Length: 20.1"
Light Output: High Output,Thru-wire
Wattage: 21W-26W
Spec Sheet:  113060000-00580609.pdf



Part No: 113046000-00580696
Model: MQAL 12 SD
Voltage: 24V DC
Length: 14.6"
Light Output: Eco,Thru-wire
Wattage: 7W-10W
Spec Sheet:  113046000-00580696.pdf



Part No: 113052000-00580585
Model: MQAL 24 ND
Voltage: 100-240V
Length: 14.6"
Light Output: High Output,Thru-wire
Wattage: 11W-15W
Spec Sheet:  113052000-00580585.pdf



Part NoModelVoltageLengthLight Output WattageSpec Sheet
113053000-00580588MQAL 18 S24V DC20.1"Eco Version 10W
113061000-00580612MQAL 18 S24V DC22.2"Eco Version 10W
113047000-00580693MQAL 24 S24V DC14.6"High Output Version 12W
113065000-00580624MQAL 18 N100-240V 22.2"Eco Version 12W
113077000-00580663MQAL 30 S24V DC31.1"Eco Version 16W
113063000-00580618MQAL 36 S24V DC22.2"High Output Version 18W
113079000-00580669MQAL 30 N100-240V 31.1"Eco Version 20W
113126000-00612973MQAL 84 S24V DC42.1"High Output Version 42W
113045000-00580702MQAL 12 S24V DC14.6"Eco Version 7W
113049000-00580576MQAL 12 N100-240V 14.6"Eco Version 9W
113067000-00580633MQAL 36 N100-240V 22.2"High Output Version 21W
113081000-00580675MQAL 42 S24V DC42.1"Eco Version 22W
113083000-00580684MQAL 42 N100-240V 42.1"Eco Version 26W
113124000-00611855MQAL 60 S24V DC31.1"High Output Version 30W
113057000-00580600MQAL 18 N100-240V 20.1"Eco Version 12W
113069000-00580639MQAL 24 S24V DC25.6"Eco Version 13W
113073000-00580651MQAL 24 N100-240V 25.6"Eco Version 15W
113051000-00580582MQAL 24 N100-240V 14.6"High Output Version 15W
113055000-00580594MQAL 36 S24V DC20.1"High Output Version 18W
113059000-00580606MQAL 36 N100-240V 20.1"High Output Version 21W
113071000-00580645MQAL 48 S24V DC25.6"High Output Version 24W
113048000-00580573MQAL 24 SD24V DC14.6"High Output,Thru-wire 12W
113082000-00580681MLAQ 42 SD24V DC42.1"Eco,Thru-wire 22W
113054000-00580591MQAL 18 SD24V DC20.1"Eco,Thru-wire 10W
113056000-00580597MLAL 36 SD24V DC20.1"High Output,Thru-wire 18W
113062000-00580615MQAL 18 SD24V DC22.2"Eco,Thru-wire 10W
113064000-00580621MQAL 36 SD24V DC22.2"High Output,Thru-wire 18W
113070000-00580642MQAL 24 SD24V DC25.6"Eco,Thru-wire 13W
113066000-00580630MQAL 18 ND100-240V22.2"Eco,Thru-wire 12W
113072000-00580648MQAL 48 SD24V DC25.6"High Output,Thru-wire 24W
113078000-00580666MQAL 30 SD24V DC31.1"Eco,Thru-wire 16W
113125000-00612844MQAL 60 SD24V DC31.1"High Output,Thru-wire 30W
113122000-00609807MQAL 84 SD24V DC42.1"High Output,Thru-wire 42W
113068000-00580636MQAL 36 ND100-240V22.2"High Output,Thru-wire 21W
113074000-00580654MQAL 24 ND100-240V25.6"Eco,Thru-wire 15W
113076000-00580660MQAL 48 ND100-240V25.6"High Output,Thru-wire 27W
113080000-00580672MQAL 30 ND100-240V31.1"Eco,Thru-wire 20W
113084000-00580690MQAL 42 ND100-240V42.1"Eco,Thru-wire 26W
113075000-00580657MQAL 48 N100-240V 25.6"High Output Version 27W
113050000-00580579MQAL 12 ND100-240V14.6"Eco,Thru-wire 9W
113058000-00580603MQAL 18 ND100-240V20.1"Eco,Thru-wire 12W
113060000-00580609MQAL 36 ND100-240V20.1"High Output,Thru-wire 21W
113046000-00580696MQAL 12 SD24V DC14.6"Eco,Thru-wire 7W
113052000-00580585MQAL 24 ND100-240V14.6"High Output,Thru-wire 15W

Parts and Specifications

Description Part Number Image
MOUNTING OPTION: End Bracket Set, Adjustable, +/- 65º
 408001876-  00582065
MOUNTING OPTION: Clip Bracket, Adjustable, +/- 30º (sold separately)
 408001878-  00585535
MOUNTING OPTION: Protective Cap Set (not for use with end brackets)
 408001875-  00582072
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz
 209585029
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz
 209585030
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz
 209585032
CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, straight (included with 24V models)
 US0009001
CONNECTOR/CABLE: 16' cord with 4-pin, S-coded for 120V, M12 connector, straight (included with 120V models)
 US0009201
CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, angled
 US0009011
CONNECTOR/CABLE: 16' cord with 4-pin, S-coded for 120V, M12 connector, angled
 US0009211
 CONNECTOR: M12 Connector, A-coded, 4 pin, female (included for 24V)  336883010-  00597530
 CONNECTOR: M12 Connector, A-coded, 4 pin, male (for 24V)  336884010-  00597520
 CONNECTOR: M12 Connector, S-coded, 4 pin, female (included for 120-230V)  336885010-  00597538
 CONNECTOR: M12 Connector, S-coded, 4 pin, male (for 120-230V)  336886010-  00597535



Mach LED Plus - LED automation lighting, robotic cell lighting
Mach LED Plus - LED cnc machine lighting for tight spaces
Mach LED Plus - LED cnc machine lighting, LED robotic cell lighting, LED automation lighting
Mach LED Plus - cnc machine lighting, machine lighting for tight space, automation lighting, robotic cell lighting
Mach LED Plus - LED machine lighting, LED cnc machine lighting
Mach LED Plus - LED machine lighting, LED cnc machine lighting

MACH LED PLUS.seventy




MACH LED PLUS.seventy Video
