MACHINE LIGHT | MACH LED PLUS.seventy with side mount

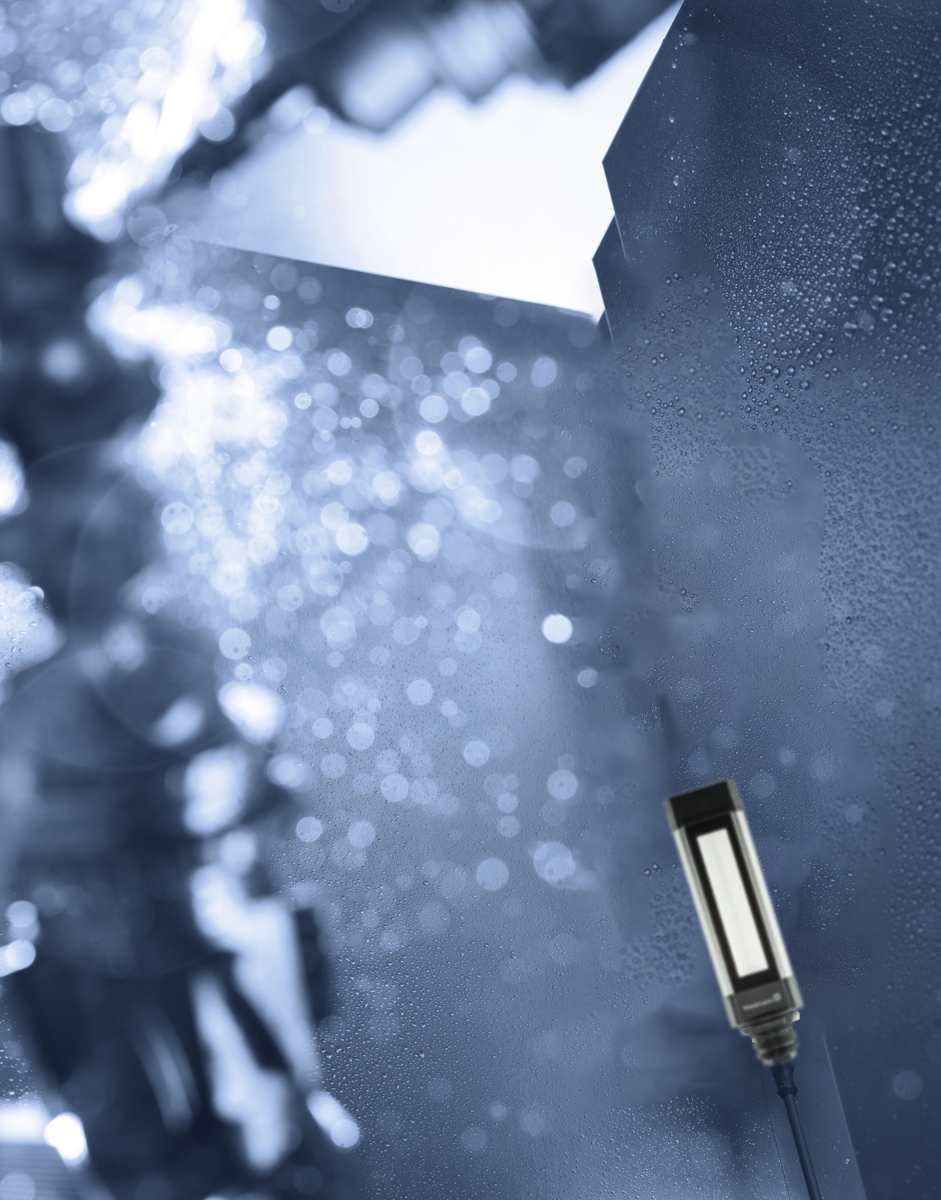

This MACH LED PLUS.seventy side mount LED machine light is optimal for smaller industrial applications requiring a very compact, high-output light source. Measuring just 10 inches in length, it is fully sealed against dust, water, petroleum based fluids, and high-pressure fluid impingement. Its solid construction is built to withstand volatile machine environments where the most demanding conditions require a safe and reliable light fixture and is also suitable for applications where vibration and impact may be present.
- Ideal where easy connection in tight space is essential
- Fully sealed against dust, water, petroleum-based fluids, and high-pressure fluid impingement
- Essential low-glare technology offers safety in machining environments
- 60,000 hours of maintenance-free LED service life
- Strong anodized aluminum housing protects from volatile machine conditions
- Impervious to shock and vibration
- Potted M12 connector or screwed cable gland for simple installation
IP67-rated
IP67 stands for “Ingress Protection 67.” It is a standard rating that indicates the level of protection an electronic device or enclosure offers against the intrusion of solid particles (like dust) and liquids (such as water). The IP rating is followed by two numbers:
First Digit (6):
This digit represents the level of protection against solid particles. The “6” indicates that the device is dust-tight, meaning it offers complete protection against the entry of dust or other solid particles.
Second Digit (7):
This digit represents the level of protection against liquids. The “7” indicates that the device is capable of withstanding immersion in water up to 1 meter (about 3.3 feet) deep for at least 30 minutes without any harmful effects.
IP67-rated machine light is completely dust-tight and can be submerged in water for a limited time without being damaged. This rating is often used for devices that need to operate in challenging environments or conditions where exposure to dust and water is a concern.Â
Ordering Information
Images
Downloads
Accessories
Ordering Information
| wdt_ID | Part No | Model | Voltage | Length | Connection | Wattage | Spec Sheet |
|---|---|---|---|---|---|---|---|
| 1 | 113710000-00804713 | MQAL 12 N | 100-240V AC | 10″ | Cable | 7W | |
| 2 | 113709000-00804709 | MQAL 12 S | 20-28V DC | 10″ | Cable | 5W | Download |
| 3 | 113710000-00804714 | MQAL 12 N | 100-240V AC | 10″ | M12 Connector | 7W | |
| 4 | 113709000-00804711 | MQAL 12 S | 20-28V DC | 10″ | M12 Connector | 5W | Download |
Images
Downloads
Accessories
| Part Number | Description | Image | ||
| 191092019- 00086727 | Luminaire bracket (only for variants with screwed cable gland) |  | ||
| US0009101 | 24V DC, 5-pin A-coded 5 m; 5 x 0.34 mm² Cable diam. 5 mm Included with 113709000-00804711 |  | ||
| US0009201 | 120V AC, 4-pin S-coded 5 m; 4 x 1.5mm² Cable diam. 8.8 mm Included with 113710000-00804714 | |||
| US0009111 | 24V DC, 5-pin A-coded 5 m; 5 x 0.34 mm² Cable diam. 5 mm 90° Angle |  | ||
| US0009211 | 120V AC, 4-pin S-coded 5 m; 4 x 1.5mm² Cable diam. 8.8 mm 90° Angle | |||
| 950900084 | Cord, SJOOW, 18/3, Black, 90C, 300V, UL,CSA |  | ||
 – Further Variants –Â
