PROCEDURE LIGHT |  TRIANGO 100





Triango 100 LED Exam Light Series offers many benefits for both the practitioner and patient. The unusual concave shape allows the physician to position the light directly above the patient. This design minimizes shadowing that may occur from the practitioner's hands or equipment. Triango 100 also features a specially designed spring arm system for flexible movement in all directions as well as the ability to fold down tight for storage. Triango 100 can also boast optimum light conditions at 100,000 lux at 1 meter, and a precise color rendering of >95 as well as four dimming levels. In addition, special focusable and endo models are available where specialties are practiced with specific needs.

  • Four dimming levels (40/ 60/ 80/ 100%) featured on all models
  • Specially designed spring arm system offers flexible movement in all directions as well as the ability to fold tight for storage when not in use
  • Unique LED design helps alleviate shadows and allows light to be positioned directly over the patient
  • Precise color rendering of Ra>95
  • Fully functional keypad easily accessible
  • Available with 4300K color temperature or with adjustable color temps: 3700K/ 4300K/ 4700K
  • Diamond optics offer wide field of illumination with diameter of 7 inches (optional Focus feature allows for expanded field of up to an 11-inch diameter)
  • Detachable and sterilizable handle
  • Optional Endo Mode allows for optimal adjustment for endoscopic procedures
  • Meets standards EN 60601-1 and EN 60601-2-41

Narrow your search [ Reset Selections ]

Choose the right part number by selecting the correct options below. Reset your selection to start over.

Mounting


Color Temps

Focusable

Endo Mode


Part No: D16074000
Connection: Triango Fokus 100-1 C
Mounting: Ceiling
Color Temps: 4300K
Focusable: Yes
Endo Mode: No
Color Temp:
Spec Sheet:  D16074000.pdf
IES:


Part No: D16075000
Connection: Triango Fokus 100-3 C
Mounting: Ceiling
Color Temps: 3700K/ 4300K/ 4700K
Focusable: Yes
Endo Mode: No
Color Temp:
Spec Sheet:  D16075000.pdf
IES:


Part No: D16076000
Connection: Triango Endo 100-1 C
Mounting: Ceiling
Color Temps: 4300K
Focusable: No
Endo Mode: Yes
Color Temp:
Spec Sheet:  D16076000.pdf
IES:


Part No: D16073000
Connection: Triango 100-3 C
Mounting: Ceiling
Color Temps: 3700K/ 4300K/ 4700K
Focusable: No
Endo Mode: No
Color Temp:
Spec Sheet:  D16073000.pdf
IES:


Part No: D16077000
Connection: Triango 100-1 W
Mounting: Wall Mount
Color Temps: 4300K
Focusable: No
Endo Mode: No
Color Temp:
Spec Sheet:  D16077000.pdf
IES:


Part No: D16078000
Connection: Triango 100-3 W
Mounting: Wall Mount
Color Temps: 3700K/ 4300K/ 4700K
Focusable: No
Endo Mode: No
Color Temp:
Spec Sheet:  D16078000.pdf
IES:


Part No: D15915000
Connection: Triango 100-1 F
Mounting: Mobile Floor Stand
Color Temps: 4300K
Focusable: No
Endo Mode: No
Color Temp:
Spec Sheet:  D15915000.pdf
IES:


Part No: D15917000
Connection: Triango Fokus 100-1 F
Mounting: Mobile Floor Stand
Color Temps: 4300K
Focusable: Yes
Endo Mode: No
Color Temp:
Spec Sheet:  D15917000.pdf
IES:


Part No: D16080000
Connection: Triango Fokus 100-3 W
Mounting: Wall Mount
Color Temps: 3700K/ 4300K/ 4700K
Focusable: Yes
Endo Mode: No
Color Temp:
Spec Sheet:  D16080000.pdf
IES:


Part No: D16072000
Connection: Triango 100-1 C
Mounting: Ceiling
Color Temps: 4300K
Focusable: No
Endo Mode: No
Color Temp:
Spec Sheet:  D16072000.pdf
IES:


Part No: D16079000
Connection: Triango Fokus 100-1 W
Mounting: Wall Mount
Color Temps: 4300K
Focusable: Yes
Endo Mode: No
Color Temp:
Spec Sheet:  D16079000.pdf
IES:


Part No: D15918000
Connection: Triango Fokus 100-3 F
Mounting: Mobile Floor Stand
Color Temps: 3700K/ 4300K/ 4700K
Focusable: Yes
Endo Mode: No
Color Temp:
Spec Sheet:  D15918000.pdf
IES:


Part No: D15976000
Connection: Triango Endo 100-1 F
Mounting: Mobile Floor Stand
Color Temps: 4300K
Focusable: No
Endo Mode: Yes
Color Temp:
Spec Sheet:  D15976000.pdf
IES:


Part No: D15916000
Connection: Triango 100-3 F
Mounting: Mobile Floor Stand
Color Temps: 3700K/ 4300K/ 4700K
Focusable: No
Endo Mode: No
Color Temp:
Spec Sheet:  D15916000.pdf
IES:


Part No: D16081000
Connection: Triango Endo 100-1 W
Mounting: Wall Mount
Color Temps: 4300K
Focusable: No
Endo Mode: Yes
Color Temp:
Spec Sheet:  D16081000.pdf
IES:


Part NoMounting     Color TempsFocusableEndo Mode   Spec SheetIES
D16074000Ceiling4300KYesNo
D16075000Ceiling3700K/ 4300K/ 4700KYesNo
D16076000Ceiling4300KNoYes
D16073000Ceiling3700K/ 4300K/ 4700KNoNo
D16077000Wall Mount4300KNoNo
D16078000Wall Mount3700K/ 4300K/ 4700KNoNo
D15915000Mobile Floor Stand4300KNoNo
D15917000Mobile Floor Stand4300KYesNo
D16080000Wall Mount3700K/ 4300K/ 4700KYesNo
D16072000Ceiling4300KNoNo
D16079000Wall Mount4300KYesNo
D15918000Mobile Floor Stand3700K/ 4300K/ 4700KYesNo
D15976000Mobile Floor Stand4300KNoYes
D15916000Mobile Floor Stand3700K/ 4300K/ 4700KNoNo
D16081000Wall Mount4300KNoYes

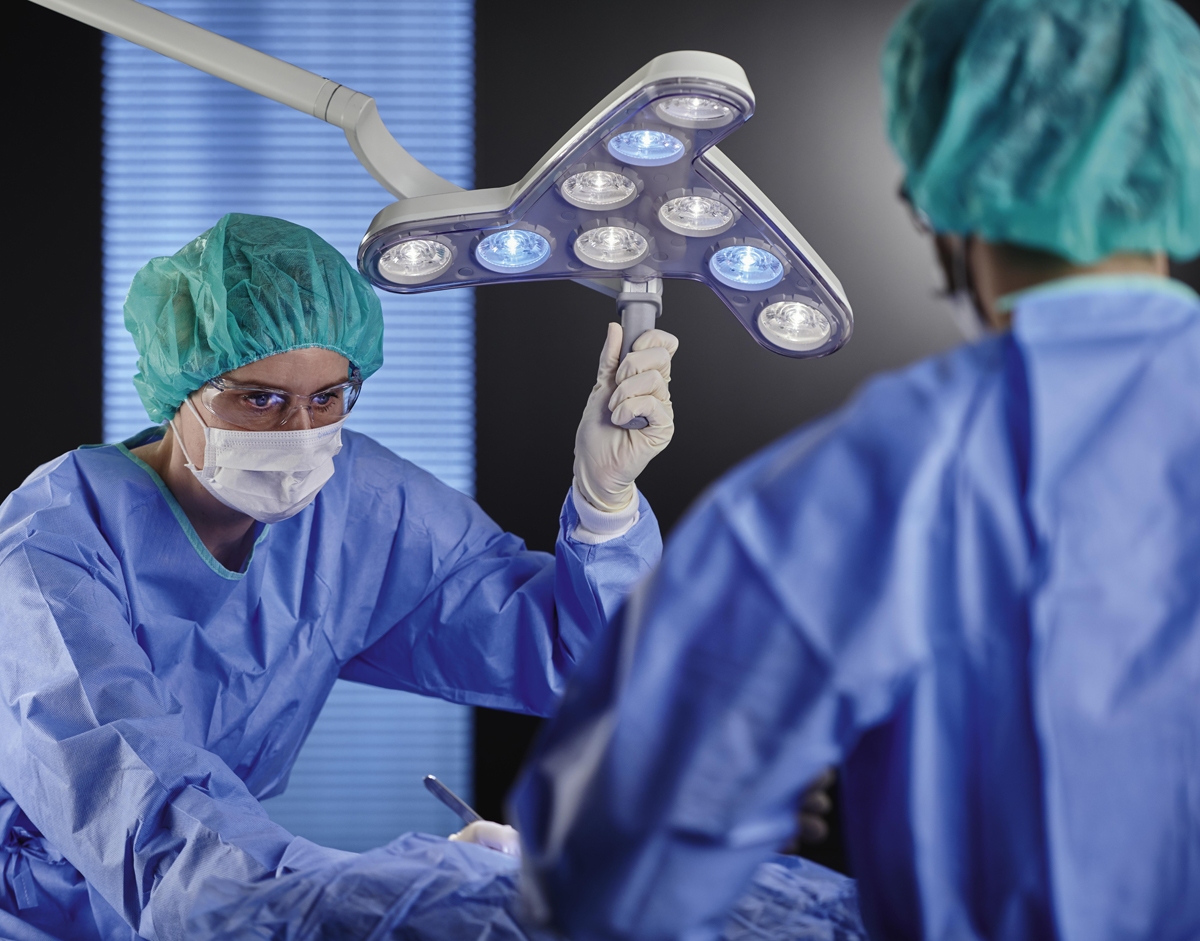

TRIANGO 100 appl 1

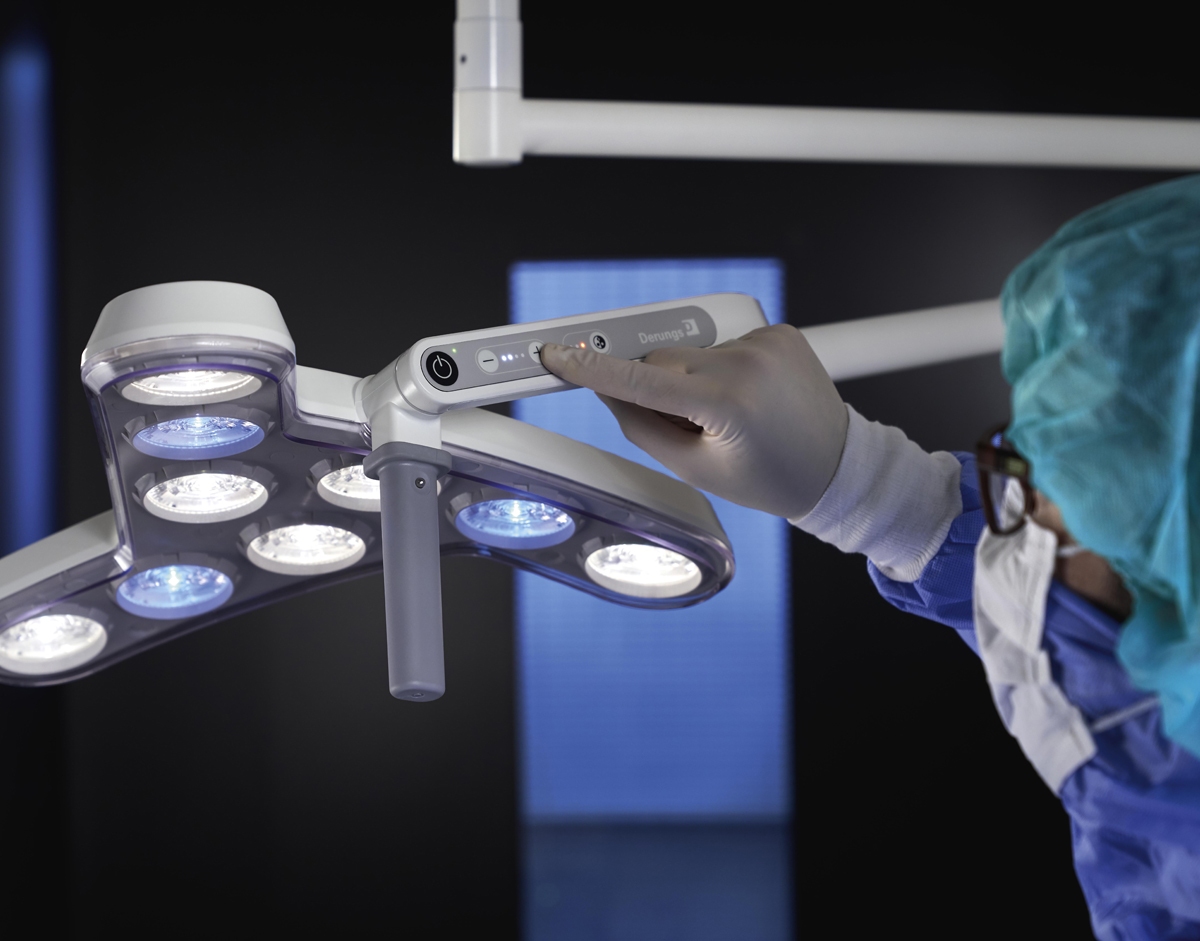

TRIANGO 100 appl 2
TRIANGO 100 appl 3

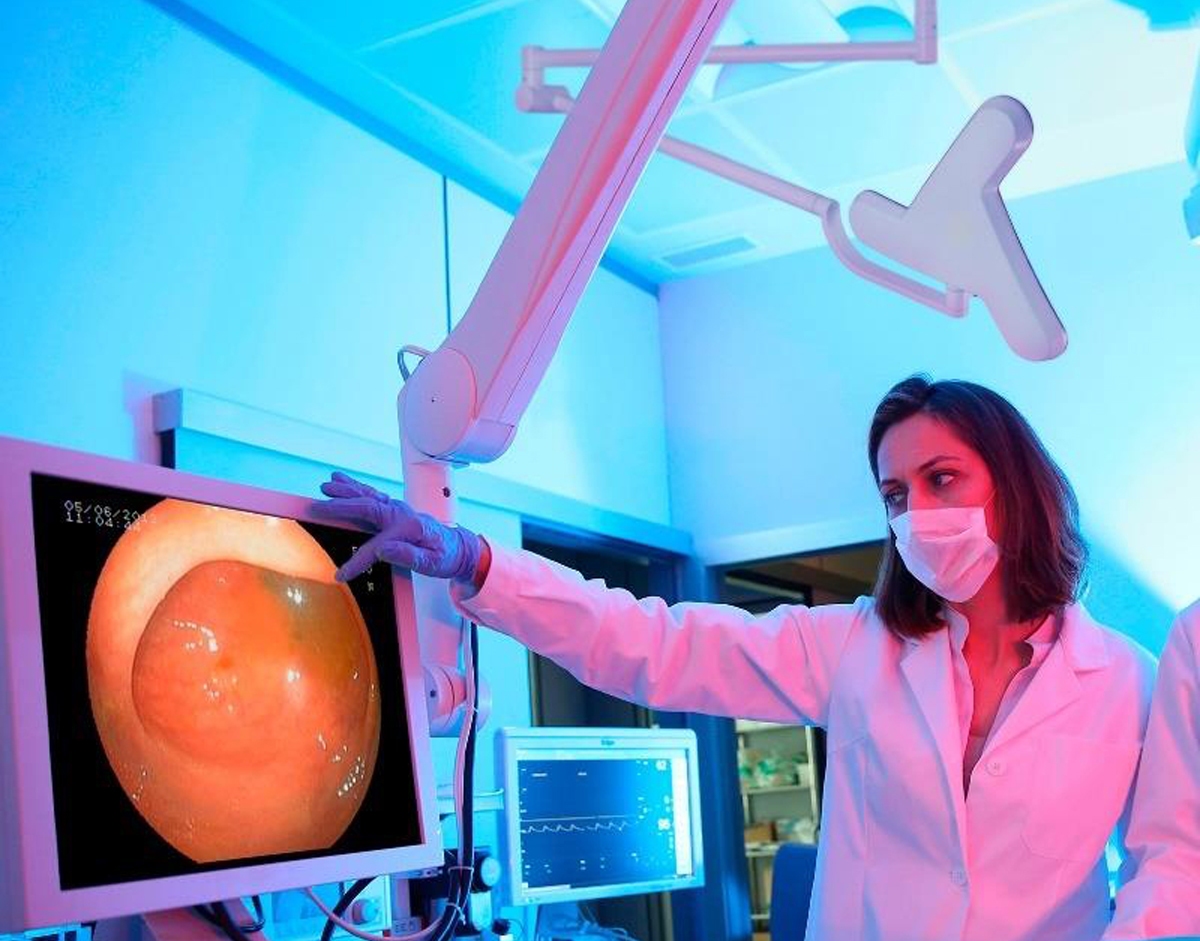

TRIANGO 100 endo appl 4
Description Part Number Images
ACCESSORY: Triango 100 Handle, Gray D10442000
ACCESSORY: Triango Sterile Handle Covers (25)  US4001501
ACCESSORY: Ceiling Mount Adapter D15074000
