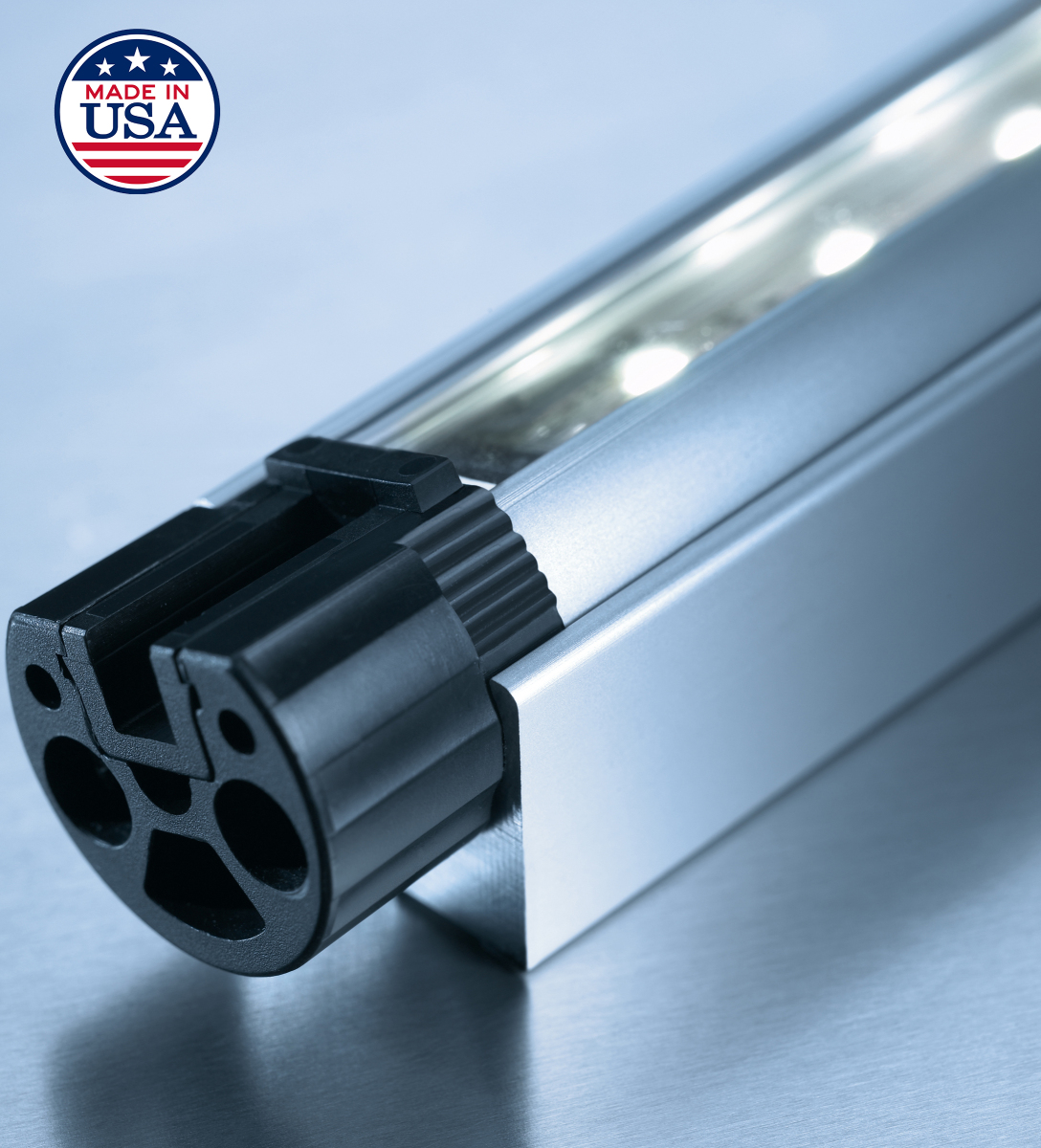

SLIM LED 2.0 is an affordable LED lighting solution ideal for areas where space is limited. With a small form factor and a mere 1-inch in diameter, it is available in an adjustable configuration. The adjustable model movement is upwards or downwards out of center position approximately 24°. SLIM LED 2.0 is encapsulated and therefore maintenance-free. It is available with free strand ends for connection to safety extra low voltage (SELV). For easy ordering, two bundle options are available. Bundle 120V which includes M12 cord, in-line switch,120-24V transformer, NEMA 1-15P. And Bundle 24V which includes M12 Cord and in-line switch. With a protection rating of IP54, SLIM LED 2.0 is protected against dust and splashing of water from any angle. Although not dust tight it does offer significant protection from dust.
Minimal installation dimensions
Standard Voltage: 24VDC
Two bundle options available: 24VDC or 120VAC

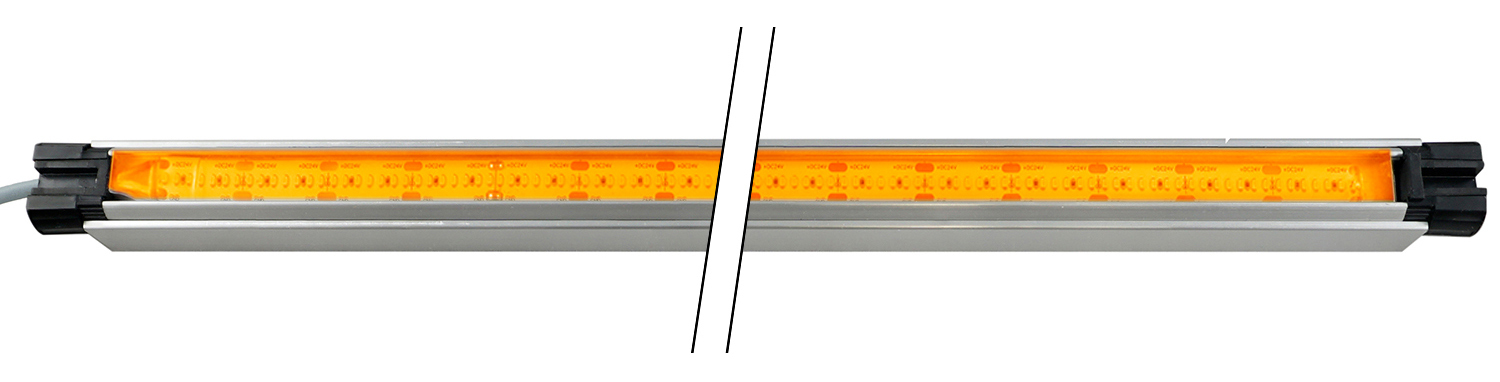

5000K color temperature or Amber, 590NM

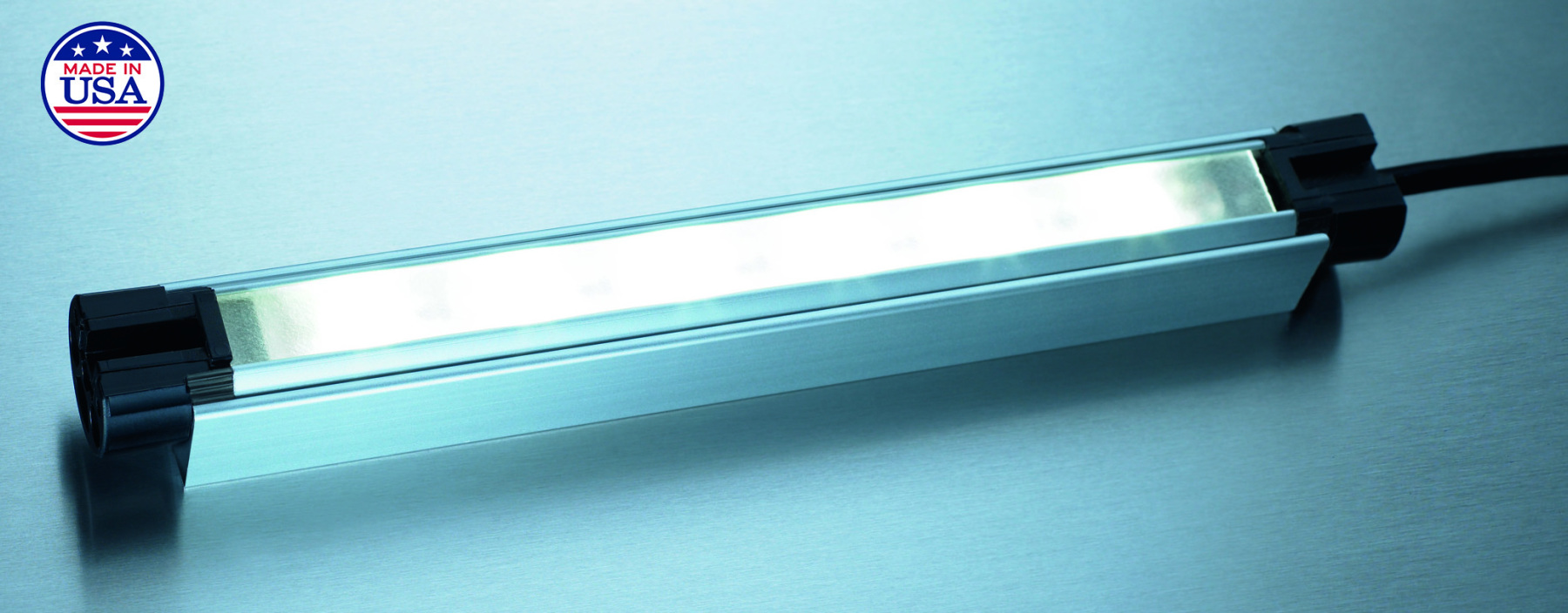

Satine and clear lens configurations
50,000 hours of optimum light due to latest LED technology
Impact and vibration resistant
Lighting direction individually adjustable
Lengths of 7.7 to 46 inches available
IP54 rated
Bundle Details
Bundle options make ordering easy! SLIM LED 2.0 has two bundle options available.

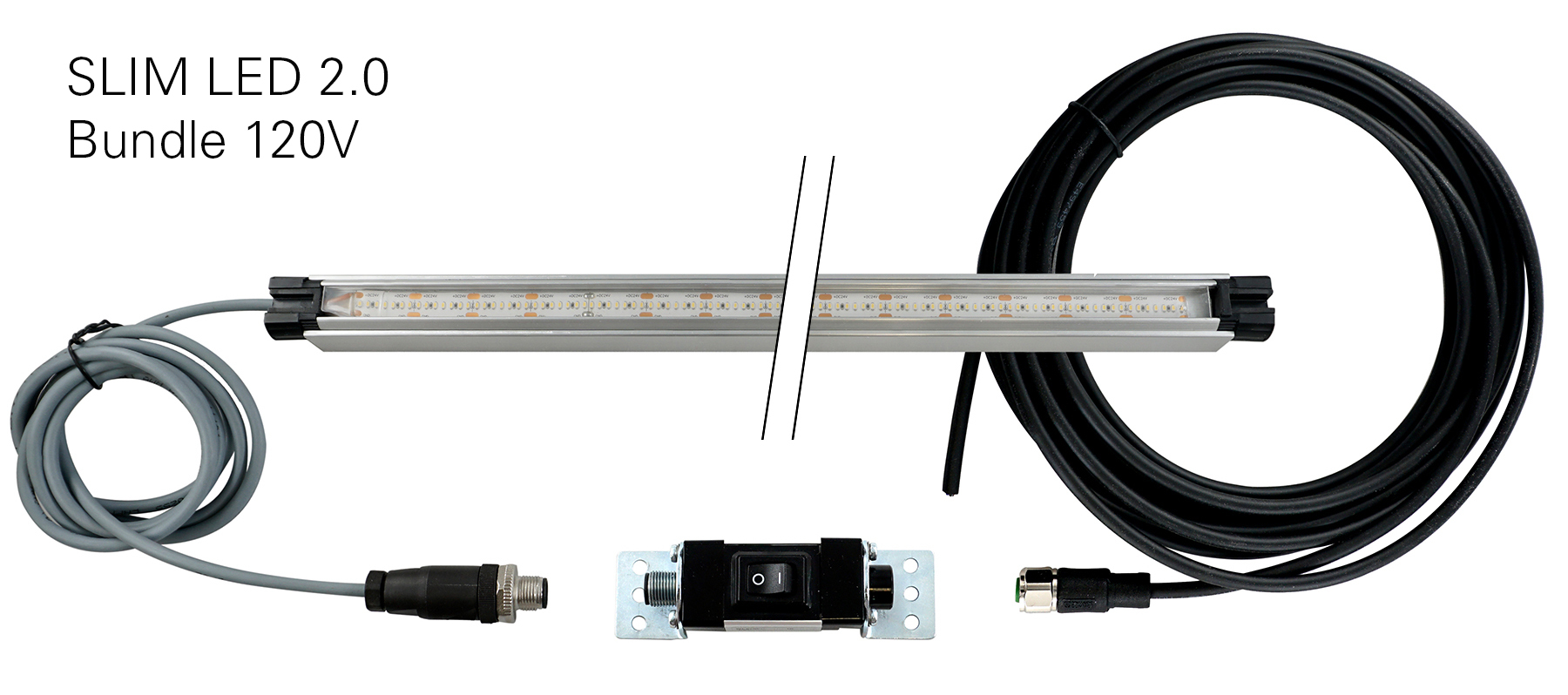

Bundle 120V includes M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
Bundle 24V includes M12 Cord and In-line switch
Ordering Information
wdt_ID
wdt_created_by
wdt_created_at
wdt_last_edited_by
wdt_last_edited_at
PART NO
MODEL
LENGTH
LENS TYPE
WATTAGE
LUMENS
COLOR
CONFIGURATION
Bundle Parts
SPEC SHEETS
1
evoadmin
01/05/2024 09:34 PM
evoadmin
16/09/2025 06:33 PM
SLM501000
SLM-C 7
7.72"
Clear
2.8W
252
5000K
Standard - 24V
None
2
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM502000
SLM-C 13
13.23"
Clear
5.6W
504
5000K
Standard - 24V
None
3
evoadmin
01/05/2024 09:34 PM
evoadmin
16/09/2025 09:42 PM
SLM503000
SLM-C 24
24.25"
Clear
11.2W
1,008
5000K
Standard - 24V
None
4
evoadmin
01/05/2024 09:34 PM
evoadmin
16/09/2025 09:42 PM
SLM504000
SLM-C 35
35.28"
Clear
16.8W
1,512
5000K
Standard - 24V
None
5
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM505000
SLM-C 46
46.30"
Clear
22.4W
2016
5000K
Standard - 24V
None
6
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM501001
SLM-S 7
7.72"
Satine
2.8W
252
5000K
Standard - 24V
None
7
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM502001
SLM-S 13
13.23"
Satine
5.6W
504
5000K
Standard - 24V
None
8
evoadmin
01/05/2024 09:34 PM
evoadmin
16/09/2025 09:43 PM
SLM503001
SLM-S 24
24.25"
Satine
11.2W
1,008
5000K
Standard - 24V
None
9
evoadmin
01/05/2024 09:34 PM
evoadmin
16/09/2025 09:44 PM
SLM504001
SLM-S 35
35.28"
Satine
16.8W
1,512
5000K
Standard - 24V
None
10
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM505001
SLM-S 46
46.30"
Satine
22.4W
2016
5000K
Standard - 24V
None
11
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLMAM1000
SLM-C 7
7.72"
Clear
2.8W
45
Amber, 590NM
Standard - 24V
None
12
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLMAM2000
SLM-C 13
13.23"
Clear
5.6W
90
Amber, 590NM
Standard - 24V
None
13
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLMAM3000
SLM-C 24
24.25"
Clear
11.2W
179
Amber, 590NM
Standard - 24V
None
14
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLMAM4000
SLM-C 35
35.28"
Clear
16.8W
269
Amber, 590NM
Standard - 24V
None
15
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLMAM5000
SLM-C 46
46.30"
Clear
22.4W
358
Amber, 590NM
Standard - 24V
None
16
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM501SW0-120
SLM-C 7
7.72"
Clear
2.8W
252
5000K
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
17
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM502SW0-120
SLM-C 13
13.23"
Clear
5.6W
504
5000K
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
18
evoadmin
01/05/2024 09:34 PM
evoadmin
16/09/2025 09:43 PM
SLM503SW0-120
SLM-C 24
24.25"
Clear
11.2W
1,008
5000K
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
19
evoadmin
01/05/2024 09:34 PM
evoadmin
16/09/2025 09:44 PM
SLM504SW0-120
SLM-C 35
35.28"
Clear
16.8W
1,512
5000K
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
20
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM505SW0-120
SLM-C 46
46.30"
Clear
22.4W
2016
5000K
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
21
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM501SW1-120
SLM-S 7
7.72"
Satine
2.8W
252
5000K
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
22
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM502SW1-120
SLM-S 13
13.23"
Satine
5.6W
504
5000K
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
23
evoadmin
01/05/2024 09:34 PM
evoadmin
16/09/2025 09:43 PM
SLM503SW1-120
SLM-S 24
24.25"
Satine
11.2W
1,008
5000K
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
24
evoadmin
01/05/2024 09:34 PM
evoadmin
16/09/2025 09:44 PM
SLM504SW1-120
SLM-S 35
35.28"
Satine
16.8W
1,512
5000K
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
25
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLM505SW1-120
SLM-S 46
46.30"
Satine
22.4W
2016
5000K
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
26
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLMAM1SW0-120
SLM-C 7
7.72"
Clear
2.8W
45
Amber, 590NM
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
27
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLMAM2SW0-120
SLM-C 13
13.23"
Clear
5.6W
90
Amber, 590NM
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
28
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLMAM3SW0-120
SLM-C 24
24.25"
Clear
11.2W
179
Amber, 590NM
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
29
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLMAM4SW0-120
SLM-C 35
35.28"
Clear
16.8W
269
Amber, 590NM
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
30
evoadmin
01/05/2024 09:34 PM
evoadmin
01/05/2024 09:34 PM
SLMAM5SW0-120
SLM-C 46
46.30"
Clear
22.4W
358
Amber, 590NM
Bundle 120V
M12 Cord, In-line switch, 120-24V Transformer, NEMA 1-15P
SWITCH, 2-POSITION IN-LINE, ROCKER ON/OFF, M12
NOTE: Switch Included in all Bundles
309414020
TRANSFORMER, 120V-24V, NEMA 1-15P
For 120V models
US0009001
CORDSET, M12 CONNECTOR
For 24V models
336615M19
5-PIN, A-CODED CONNECTOR, FOR CABLE DIAM. 4-6MM, 60VDC MAX (THROUGH-WIRE)
NOTE: Connector Included in all Bundles
