EXAMINATION LIGHTS | HALUX N30

HALUX N30 is suitable for anyone who is on a budget but doesn’t want to compromise on quality. With an illumination intensity up to 30,000 lux at 0.5 meter and a 7.1 inch light field, HALUX N30 is perfectly equipped for versatile everyday use. HALUX N30 is also particularly versatile in terms of the possible arm systems: flexible arm or spring arm in combination with various mounting accessories or rolling stand. Nothing stands in the way of versatile use.

Light output – 30 000 Lux at 0.5 meter**
93+ CRI – for accurate color rendering
4400 K Color temperature
Continuous Dimming – for more flexibility
Sealed Construction – for easy sanitizing

**-10% / +20% tolerance

Light field: 7.1 inch
Maintenance-free – High-quality materials and durable LED technology with 5 year warranty
Safe and easy positioning
Large homogeneous light field for maximum visual comfort
Meets normative requirements EN 60601-1 & EN 60601-2-41

TECHNICAL DATA AT A GLANCE

Illumination power **	30,000 lux at 0.5 m
Light field **	Ø 7.1″ at 0.5 m
Dimming	Continuously dimmable
Color rendering Ra	93
Color temperature	Fixed 4400 K
Operating unit	External power adapter
Degree of protection	IP 20 (luminaire head)
Arm system	Flex arm or spring-balanced arm
Operation	Switch at luminaire head
Accessories	Standard wall rail system, extension arm, table clamp,
	universal fastener, rail clamp, wall bracket, pipe clamp, rolling stand

**-10% / +20% tolerance

Ordering Information

Images

Downloads

Accessories

Ordering Information

HALUX N30

Part No:

Model:

Mounting Type:

Arm Type:

Color Temp:

Spec Sheet:

wdt_ID	Part No	Model	Mounting Type	Arm Type	Color Temp	Spec Sheet
38	D15990110	HALUX N30-1 P SV	FLOORSTAND	GOOSENECK	4400K
39	D15990120	HALUX N30-1 P SV	WALL MOUNT	GOOSENECK	4400K
40	D15990130	HALUX N30-1 P SV	WALL MOUNT, EXT Arm	GOOSENECK	4400K
41	D15990150	HALUX N30-1 P SV	RAIL MOUNT	GOOSENECK	4400K

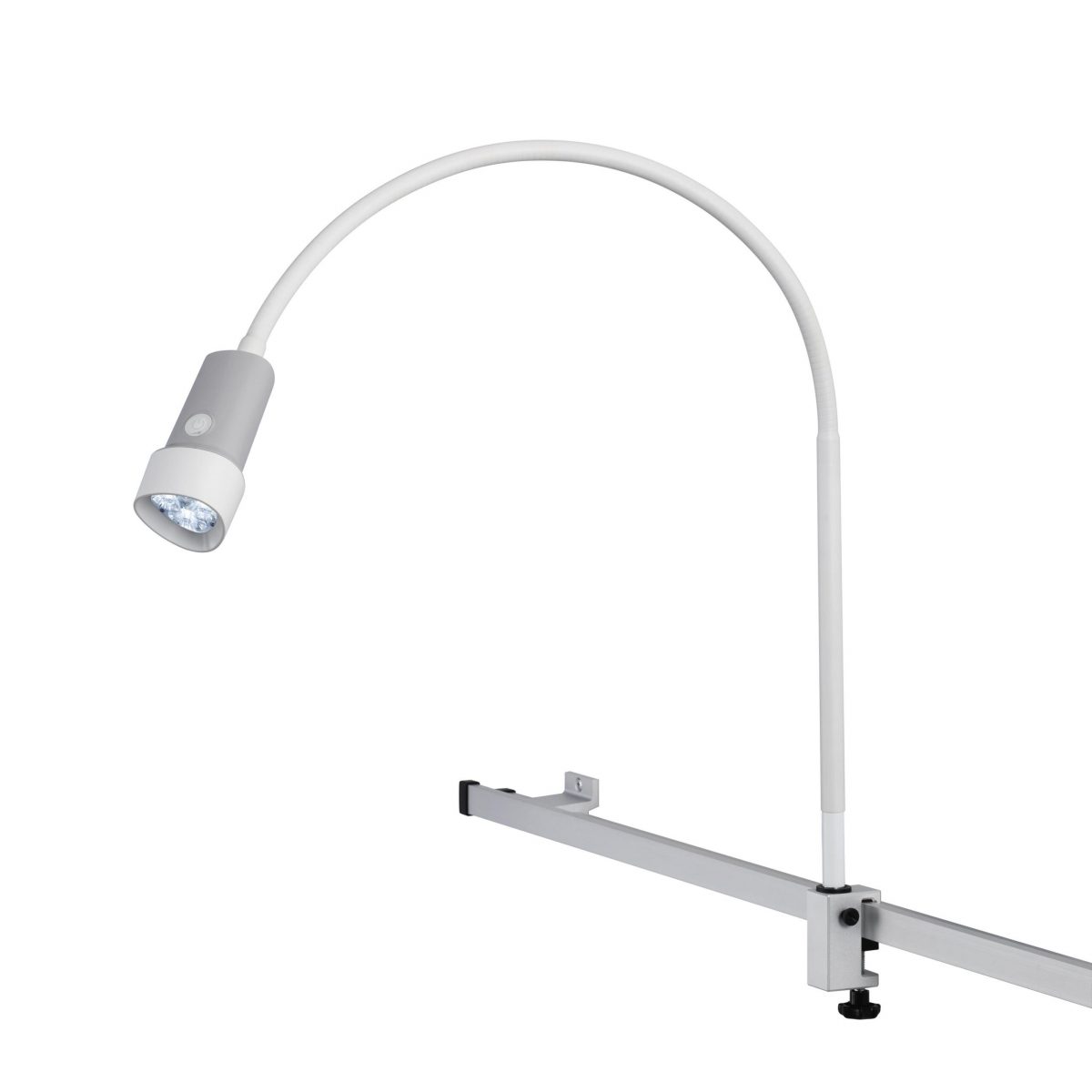

33	D15991110	HALUX N30-1 P SH	FLOORSTAND	GOOSENECK	4400K
34	D15991120	HALUX N30-1 P SH	WALL MOUNT	GOOSENECK	4400K
35	D15991130	HALUX N30-1 P SH	WALL MOUNT, EXT Arm	GOOSENECK	4400K
36	D15991150	HALUX N30-1 P SH	RAIL MOUNT	GOOSENECK	4400K
37	D15990100	HALUX N30-1 P SV	W/CLAMP	GOOSENECK	4400K
28	D15992110	HALUX N30-1 P SGV	FLOORSTAND	GOOSENECK, BASE JOINT	4400K

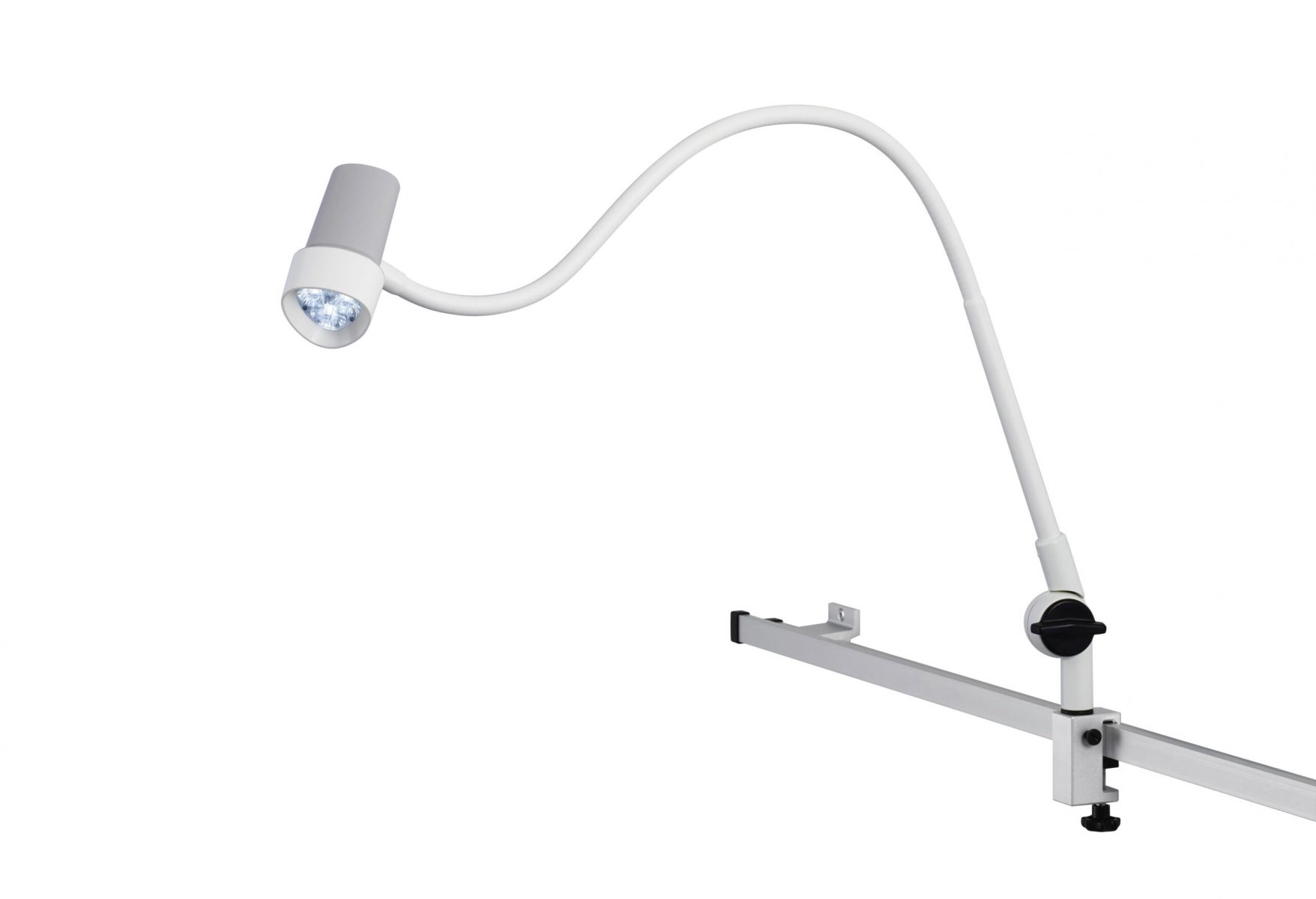

29	D15992120	HALUX N30-1 P SGV	WALL MOUNT	GOOSENECK, BASE JOINT	4400K
30	D15992130	HALUX N30-1 P SGV	WALL MOUNT, EXT Arm	GOOSENECK, BASE JOINT	4400K
31	D15992150	HALUX N30-1 P SGV	RAIL MOUNT	GOOSENECK, BASE JOINT	4400K
32	D15991100	HALUX N30-1 P SH	W/CLAMP	GOOSENECK	4400K
23	D15993110	HALUX N30 -1 P SGH	FLOORSTAND	GOOSENECK, BASE JOINT	4400K

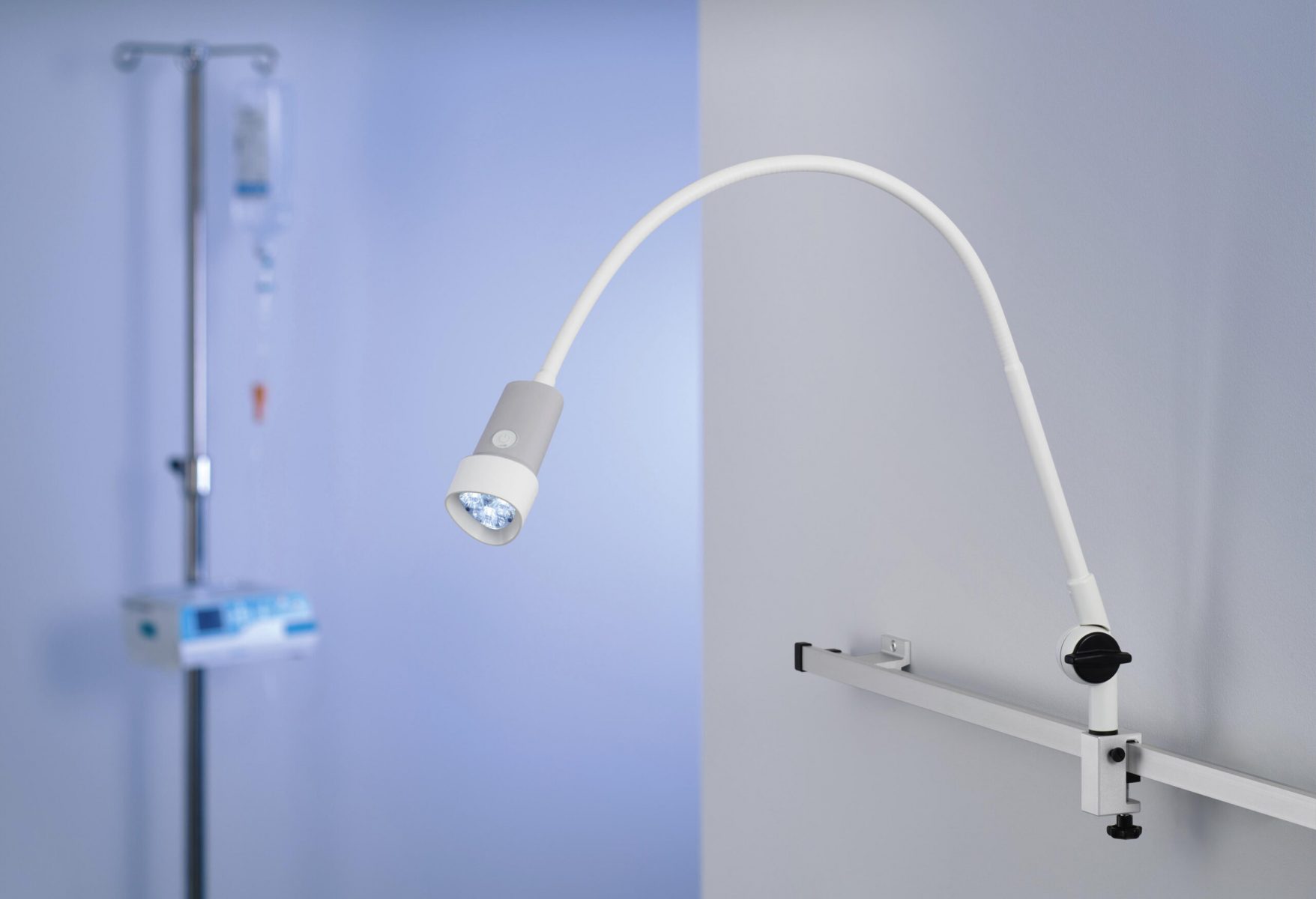

24	D15993120	HALUX N30 -1 P SGH	WALL MOUNT	GOOSENECK, BASE JOINT	4400K
25	D15993130	HALUX N30 -1 P SGH	WALL MOUNT, EXT Arm	GOOSENECK, BASE JOINT	4400K
26	D15993150	HALUX N30 -1 P SGH	RAIL MOUNT	GOOSENECK, BASE JOINT	4400K
27	D15992100	HALUX N30-1 P SGV	W/CLAMP	GOOSENECK, BASE JOINT	4400K

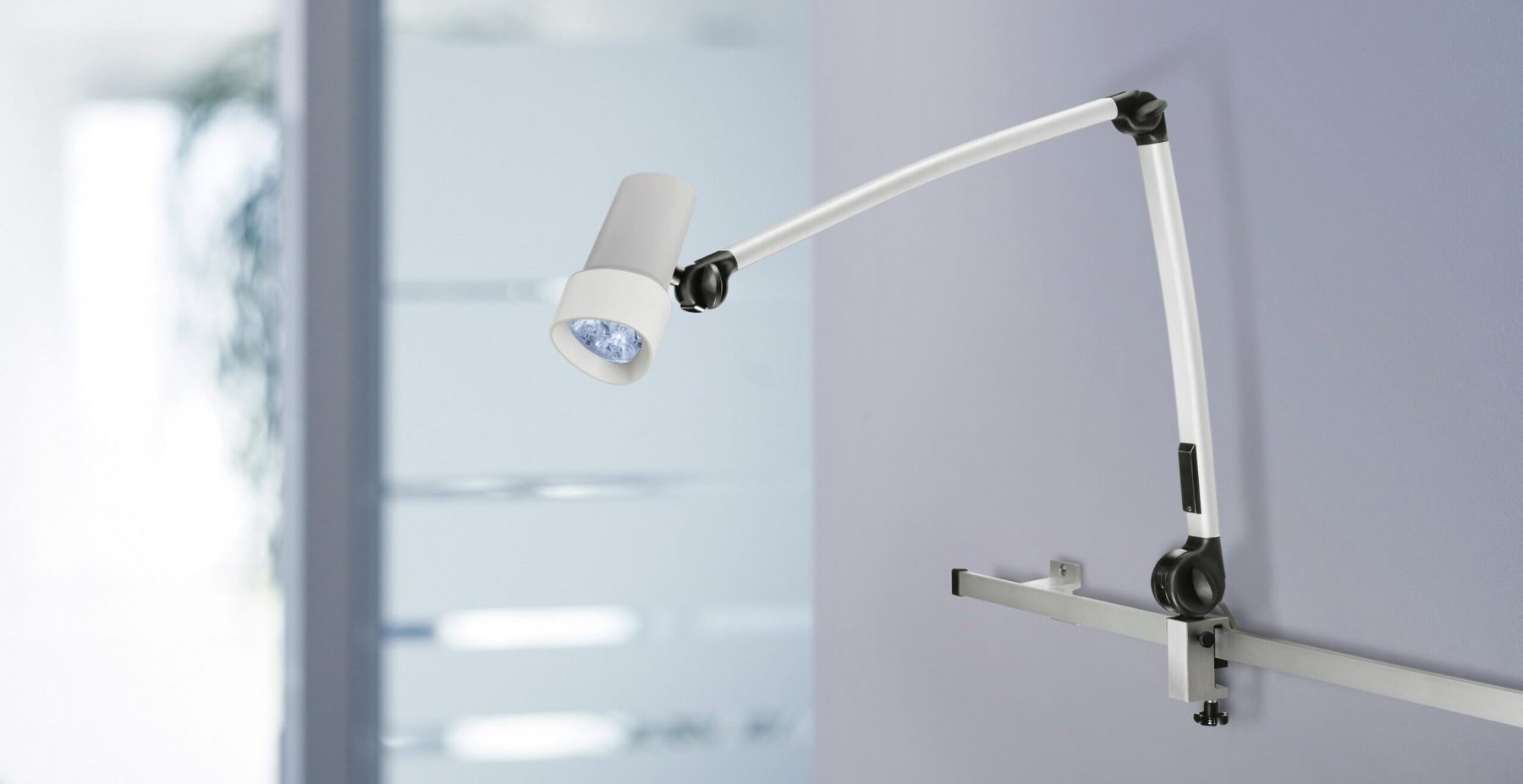

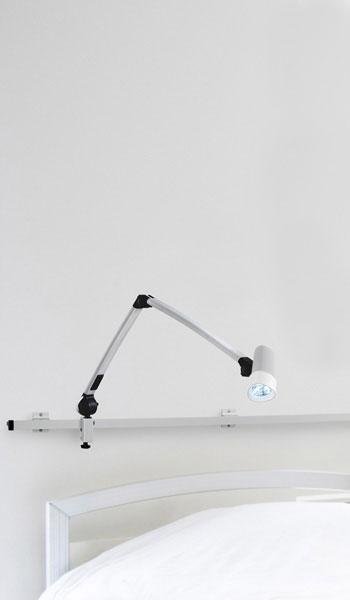

17	D15994100	HALUX N30-1 P F1	W/CLAMP	Articulating Arm	4400K
18	D15994110	HALUX N30-1 P F1	FLOORSTAND	Articulating Arm	4400K
19	D15994120	HALUX N30-1 P F1	WALL MOUNT	Articulating Arm	4400K
20	D15994130	HALUX N30-1 P F1	WALL MOUNT, EXT Arm	Articulating Arm	4400K
21	D15994150	HALUX N30-1 P F1	RAIL MOUNT	Articulating Arm	4400K
22	D15993100	HALUX N30 -1 P SGH	W/CLAMP	GOOSENECK, BASE JOINT	4400K
	Part No	Model	Mounting Type	Arm Type	Color Temp	Spec Sheet

Images

Downloads

Accessories

Description	Part Number	Image
MOUNTING OPTION: Table Clamp	D14228000
MOUNTING OPTION: Rolling Stand, with Casters, Gray	D15595000
MOUNTING OPTION: Wall Mount for Gooseneck, White	D13231000
MOUNTING OPTION: Rail Mount (does not include rail)*	D13269000
ACCESSORY: Rail System* (sold separately) 39.4″ length	D13505000
ACCESSORY: Rail System* (sold separately) 59″ length	D13506000
ACCESSORY: Extension Arm	D13363000
