ARCHITECTURAL TUBULAR LUMINARIES | R7 ARCHITECTURAL


  • PROUD MEMBER OF:

The R7 Architectural Series of tubular luminaires offers many lighting solutions in a diverse arena of possible applications. From rugged, large scale outdoor installations to sophisticated, intricately designed interior décor, the R7 Architectural luminaires offer flexibility for your lighting design requirements. Several tube lengths and mounting options offer endless design possibilities.
  • Impact-resistant acrylic tubes with UV-resistant satine finish
  • Lengths from 34.9" to 58.6"
  • Brackets and suspension devices are available for both ceiling and direct wall mounting
  • Standard 4000K color temperature
  • All models have dimming capabilities
  •  LED lamping with 360º or 180º light distribution available
  •  5-year warranty
  • ETL/cETL approved




Part No: R7H2SADUS
Fixture Length: 34.9"
Mounting Type: Pendant/Surface
Daisy Chain: Yes
Ballast: Internal
Wattage: 13W
Light Distribution: 180º
Spec Sheet:  R7H2SADUS.pdf
IES:



Part No: R7H2SASUS
Fixture Length: 34.9"
Mounting Type: Pendant/Surface
Daisy Chain: Yes
Ballast: Internal
Wattage: 13W
Light Distribution: 180º
Spec Sheet:  R7H2SASUS.pdf
IES:



Part No: R7H3SADUS
Fixture Length: 46.7"
Mounting Type: Pendant/Surface
Daisy Chain: Yes
Ballast: Internal
Wattage: 19W
Light Distribution: 180º
Spec Sheet:  R7H3SADUS.pdf
IES:



Part No: R7H3SASUS
Fixture Length: 46.7"
Mounting Type: Pendant/Surface
Daisy Chain: Yes
Ballast: Internal
Wattage: 19W
Light Distribution: 180º
Spec Sheet:  R7H3SASUS.pdf
IES:



Part No: R7H4SADUS
Fixture Length: 58.6"
Mounting Type: Pendant/Surface
Daisy Chain: Yes
Ballast: Internal
Wattage: 26W
Light Distribution: 180º
Spec Sheet:  R7H4SADUS.pdf
IES:



Part No: R7H4SASUS
Fixture Length: 58.6"
Mounting Type: Pendant/Surface
Daisy Chain: Yes
Ballast: Internal
Wattage: 26W
Light Distribution: 180º
Spec Sheet:  R7H4SASUS .pdf
IES:



Part No: R7X2LESUS
Fixture Length: 40.7"
Mounting Type: Vertical
Daisy Chain: No
Ballast: Internal
Wattage: 10W
Light Distribution: 360º
Spec Sheet:  R7X2LESUS.pdf
IES:



Part No: R7X2LORRS
Fixture Length: 30.6"
Mounting Type: Horizontal
Daisy Chain: No
Ballast: Remote
Wattage: 10W
Light Distribution: 360º
Spec Sheet:  R7X2LORRS.pdf
IES:



Part No: R7X3LESUS
Fixture Length: 52.5"
Mounting Type: Vertical
Daisy Chain: No
Ballast: Internal
Wattage: 15W
Light Distribution: 360º
Spec Sheet:  R7X3LESUS.pdf
IES:



Part No: R7X3LORRS
Fixture Length: 42.4"
Mounting Type: Horizontal
Daisy Chain: No
Ballast: Remote
Wattage: 15W
Light Distribution: 360º
Spec Sheet:  R7X3LORRS.pdf
IES:



Part No: R7X4LESUS
Fixture Length: 64.3"
Mounting Type: Vertical
Daisy Chain: No
Ballast: Internal
Wattage: 22W
Light Distribution: 360º
Spec Sheet:  R7X4LESUS.pdf
IES:



Part No: R7X4LORRS
Fixture Length: 54.2"
Mounting Type: Horizontal
Daisy Chain: No
Ballast: Remote
Wattage: 22W
Light Distribution: 360º
Spec Sheet:  R7X4LORRS.pdf
IES:



Part NoFixture LengthMounting TypeDaisy ChainBallastWattageLight DistributionSpec SheetIES
R7H2SADUS34.9"Pendant/SurfaceYesInternal13W180º
R7H2SASUS34.9"Pendant/SurfaceYesInternal13W180º
R7H3SADUS46.7"Pendant/SurfaceYesInternal19W180º
R7H3SASUS46.7"Pendant/SurfaceYesInternal19W180º
R7H4SADUS58.6"Pendant/SurfaceYesInternal26W180º
R7H4SASUS58.6"Pendant/SurfaceYesInternal26W180º
R7X2LESUS40.7"Vertical NoInternal10W360º
R7X2LORRS30.6"HorizontalNoRemote10W360º
R7X3LESUS52.5"Vertical NoInternal15W360º
R7X3LORRS42.4"HorizontalNoRemote15W360º
R7X4LESUS64.3"Vertical NoInternal22W360º
R7X4LORRS54.2"HorizontalNoRemote22W360º

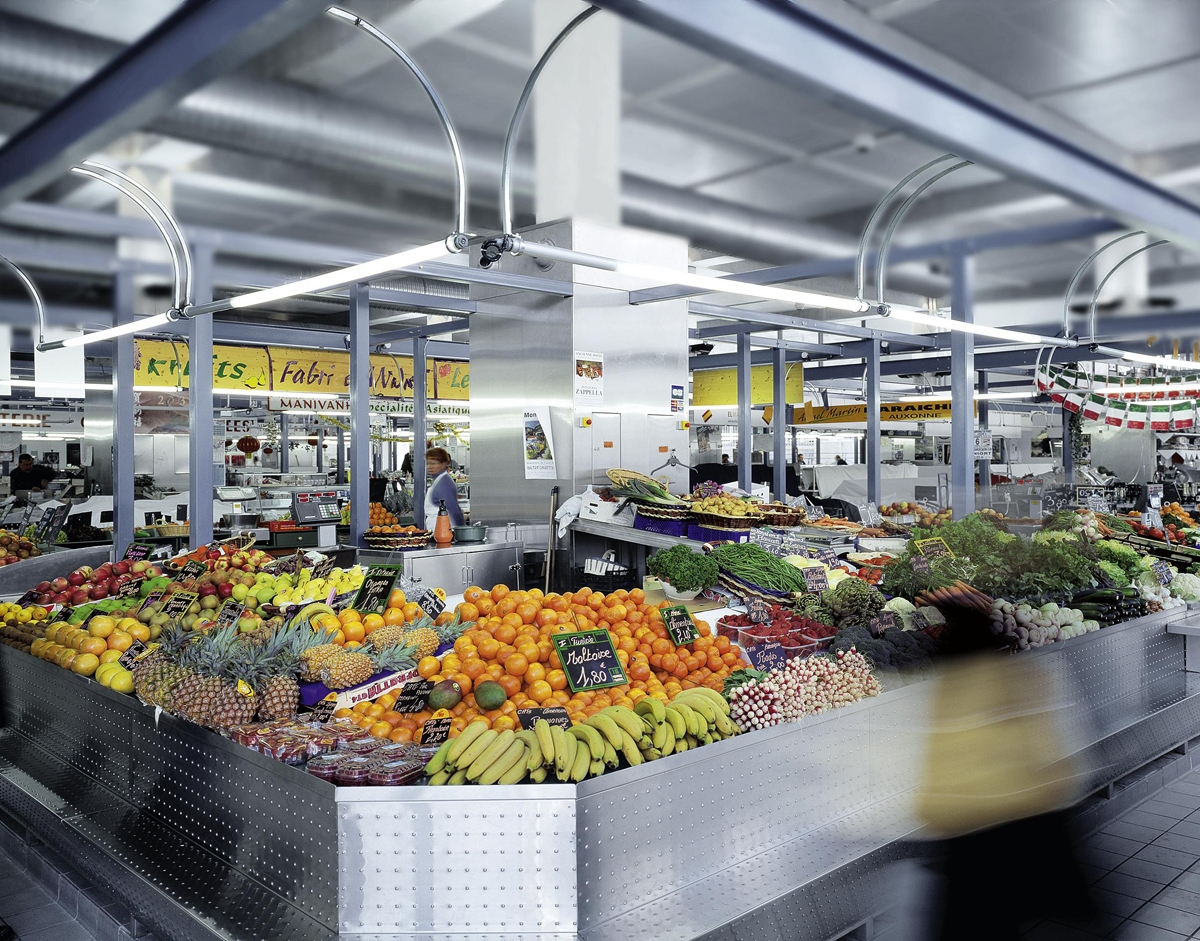

rl70 appl 3

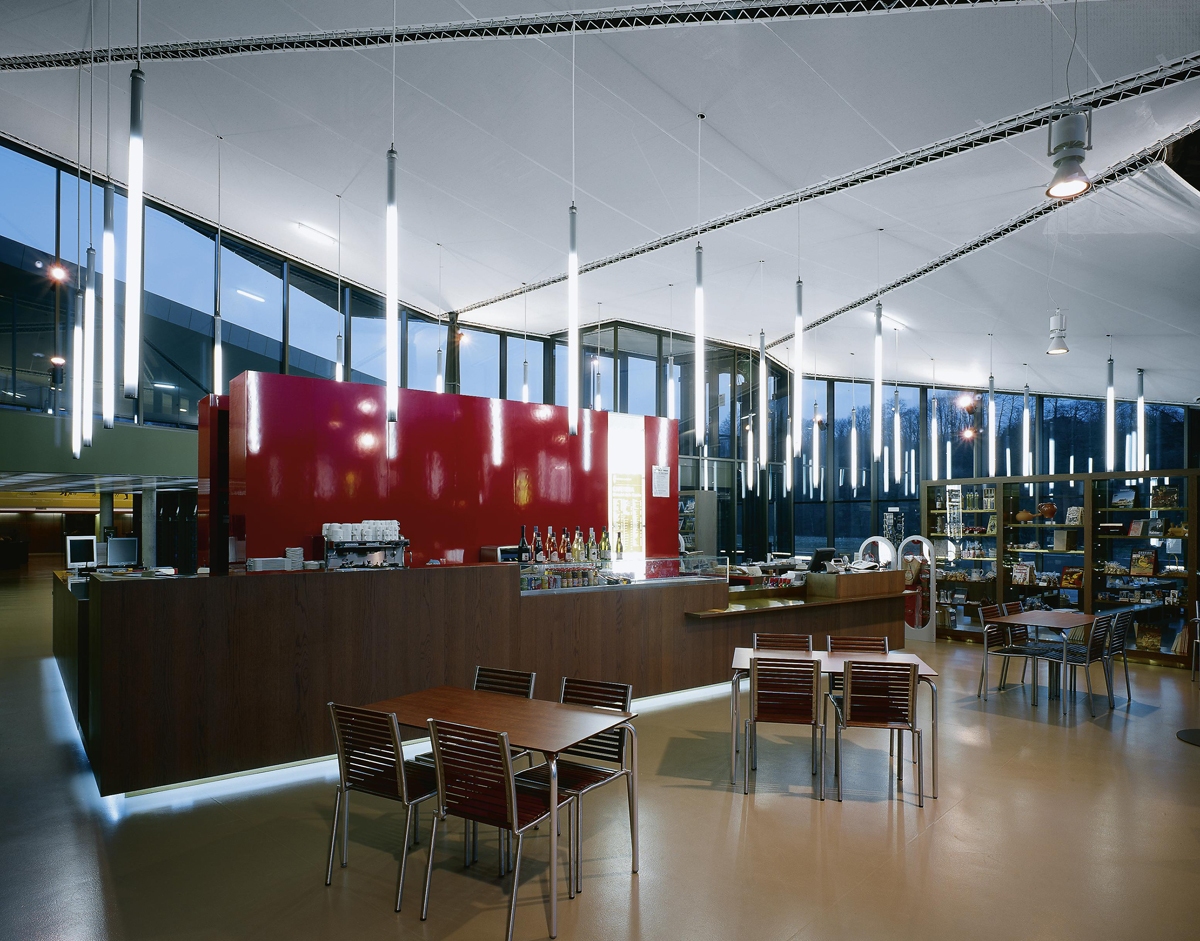

rl70 appl 4

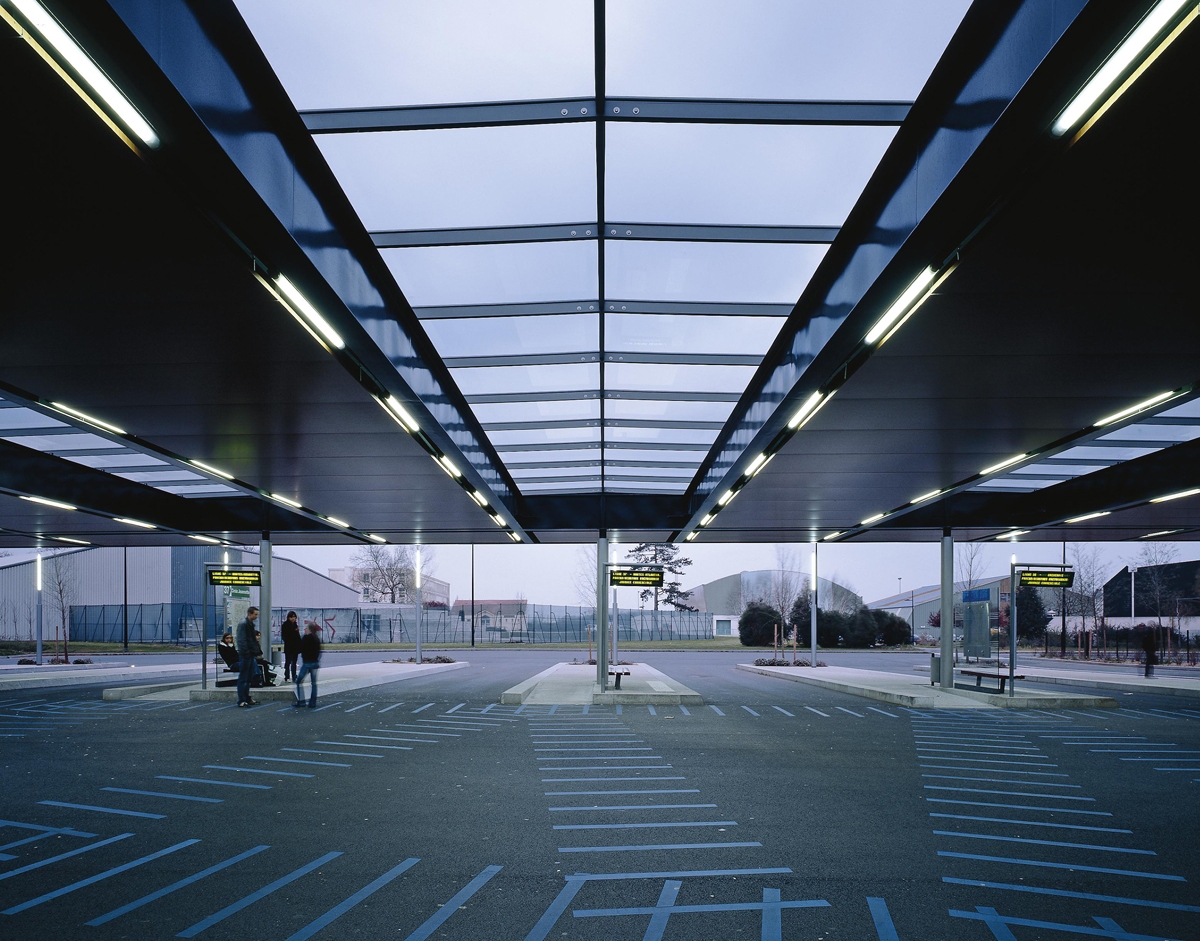

rl70 appl 7

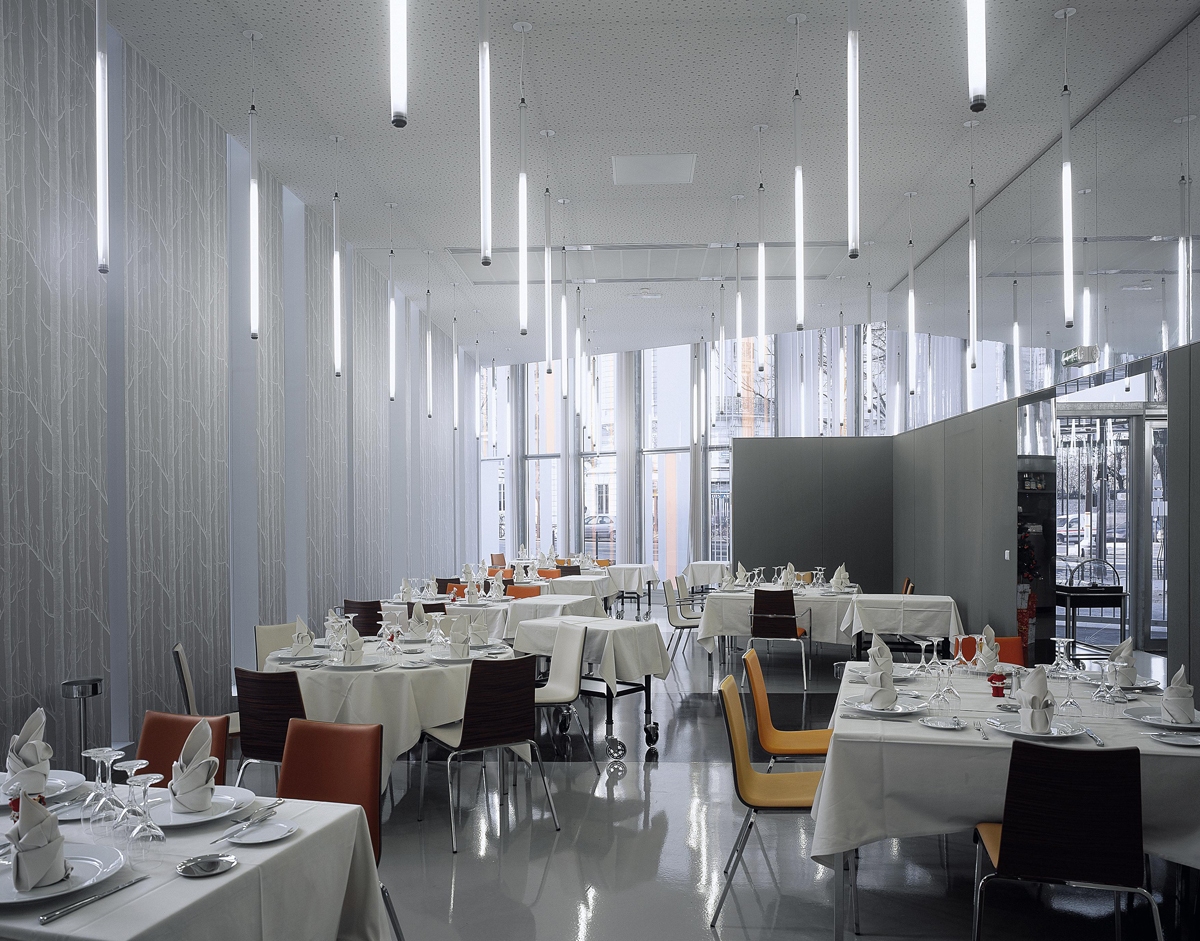

rl70 appl 6

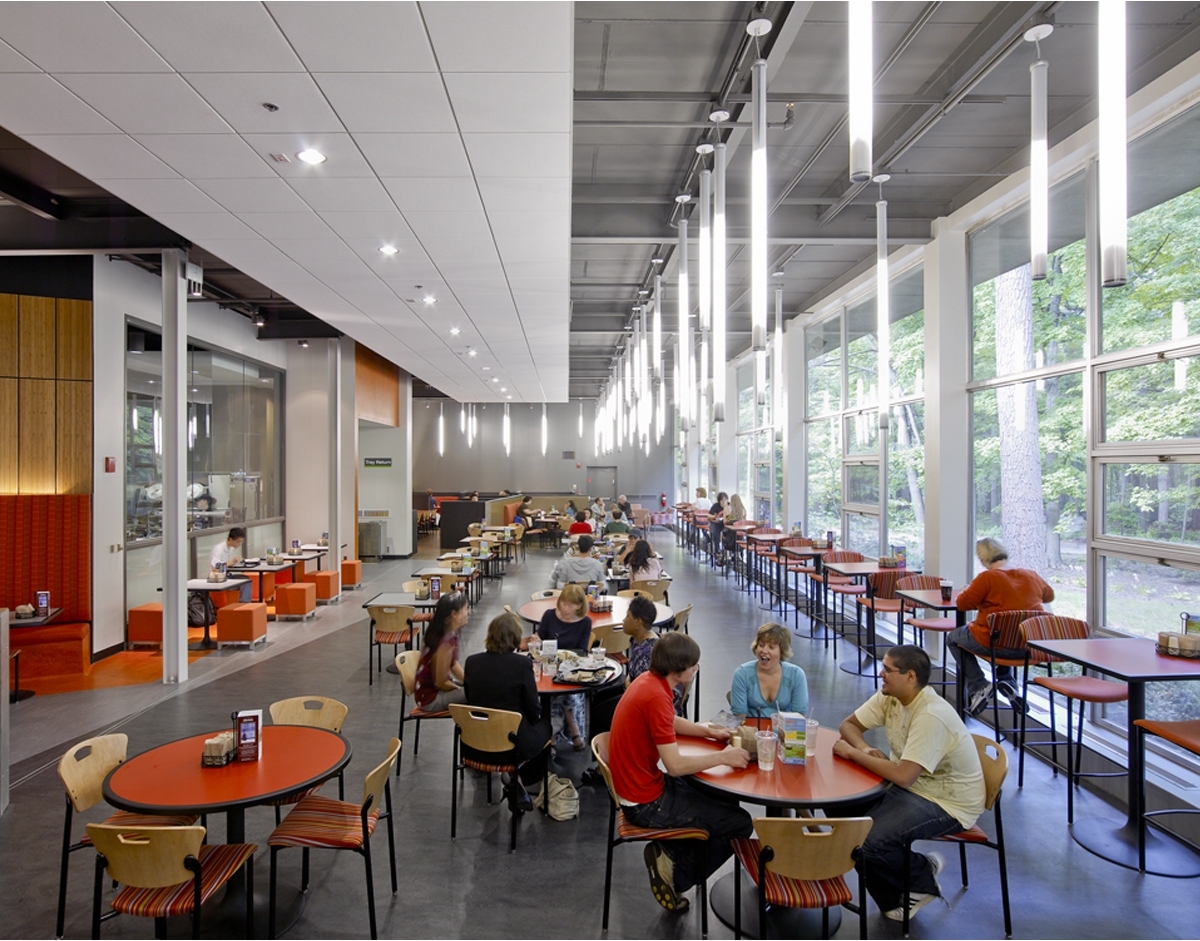

rl70 appl 9

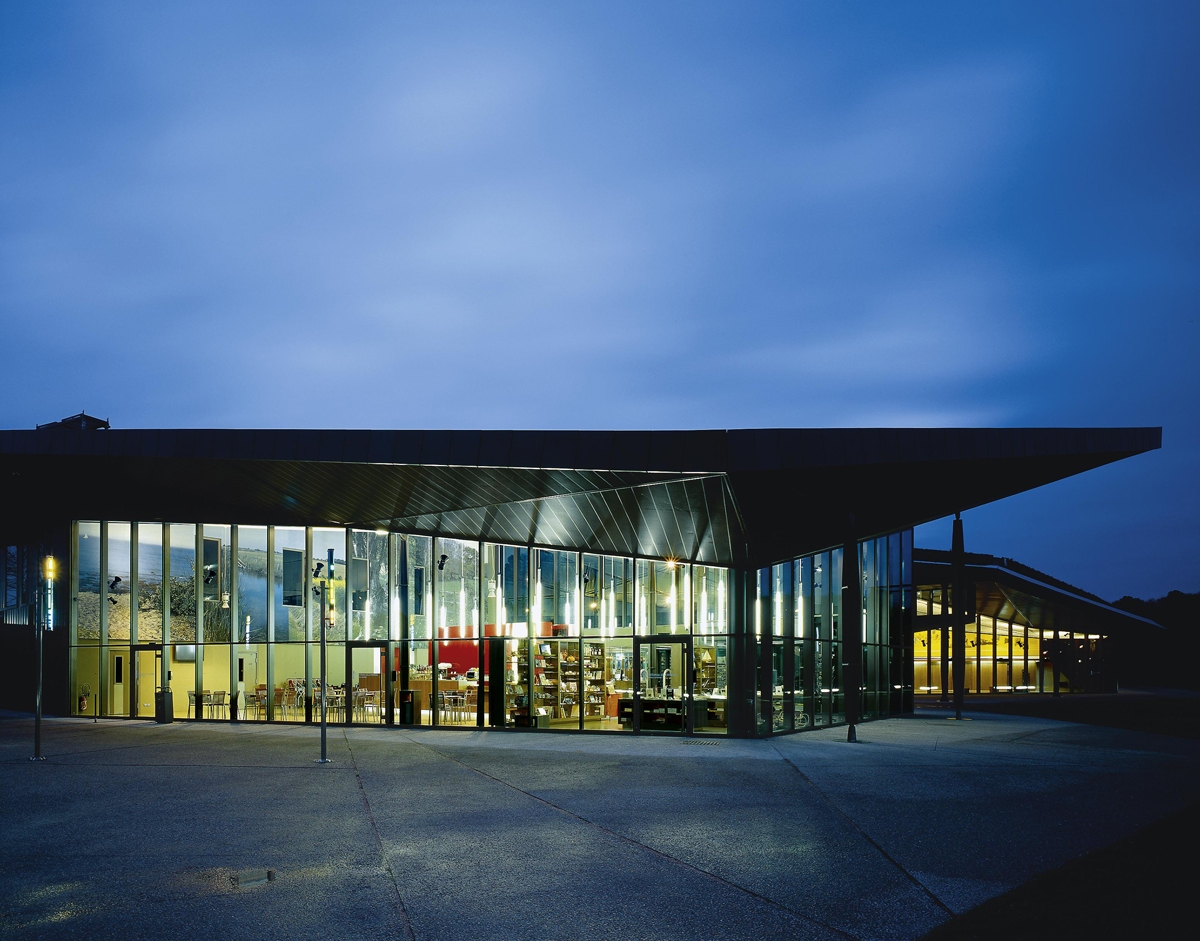

rl70 appl 11

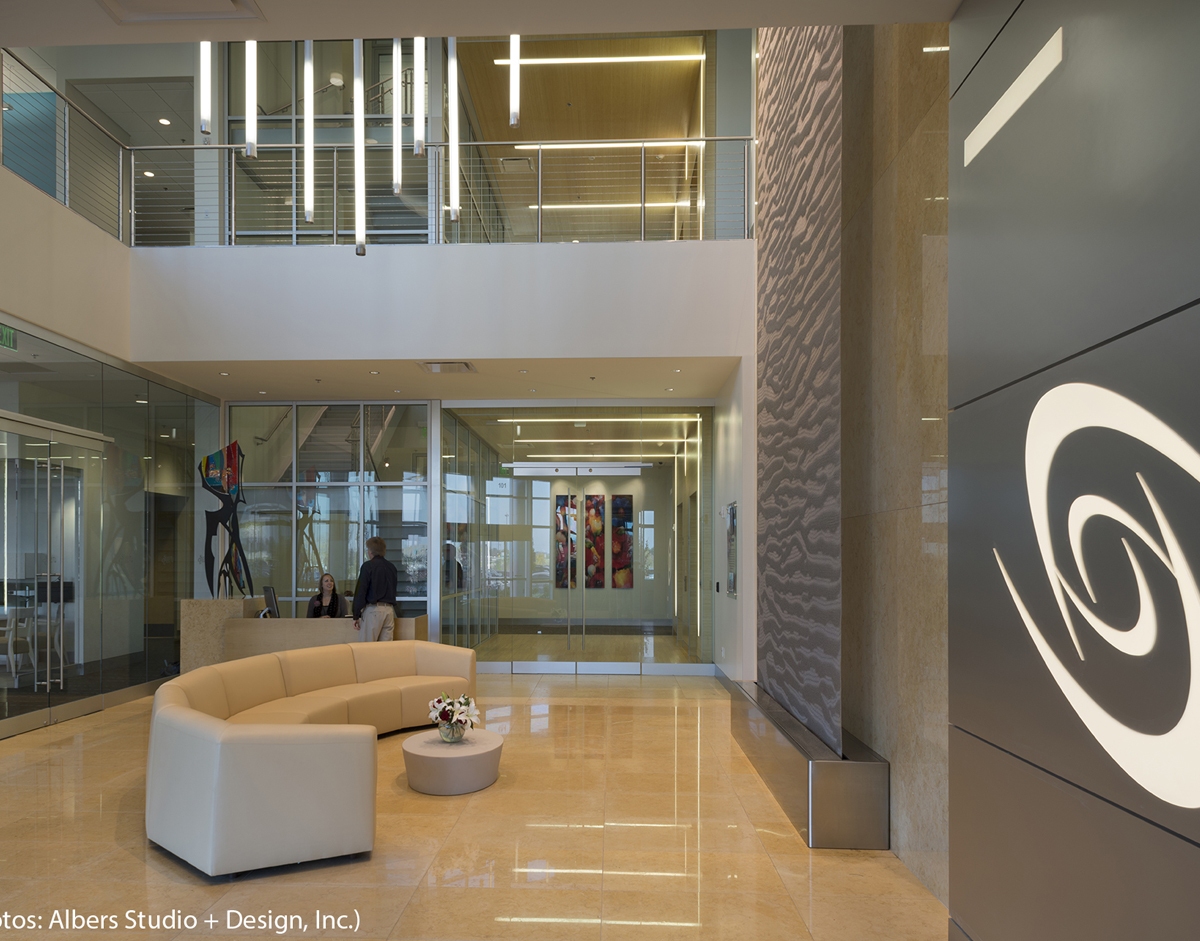

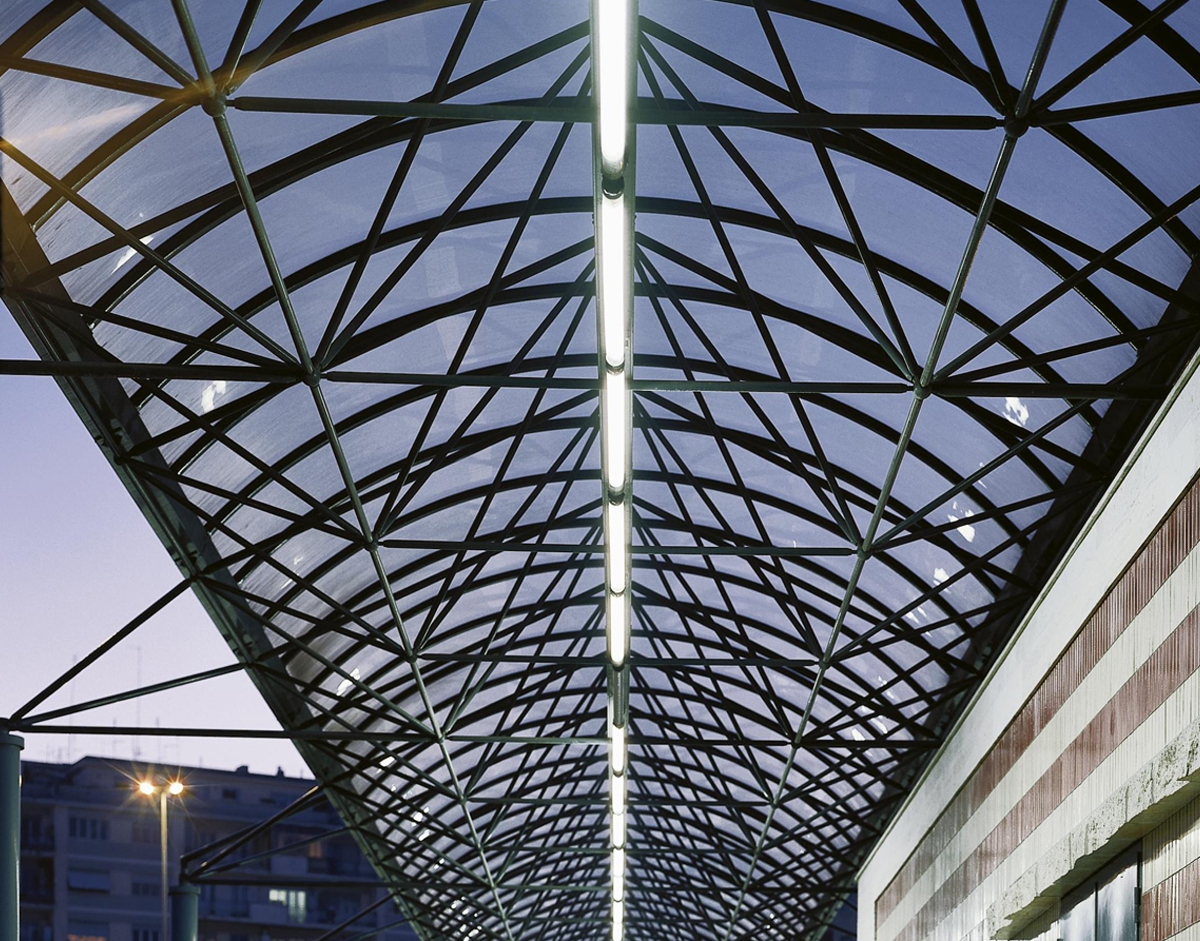

RL70 appl 10
rl70 appl 10

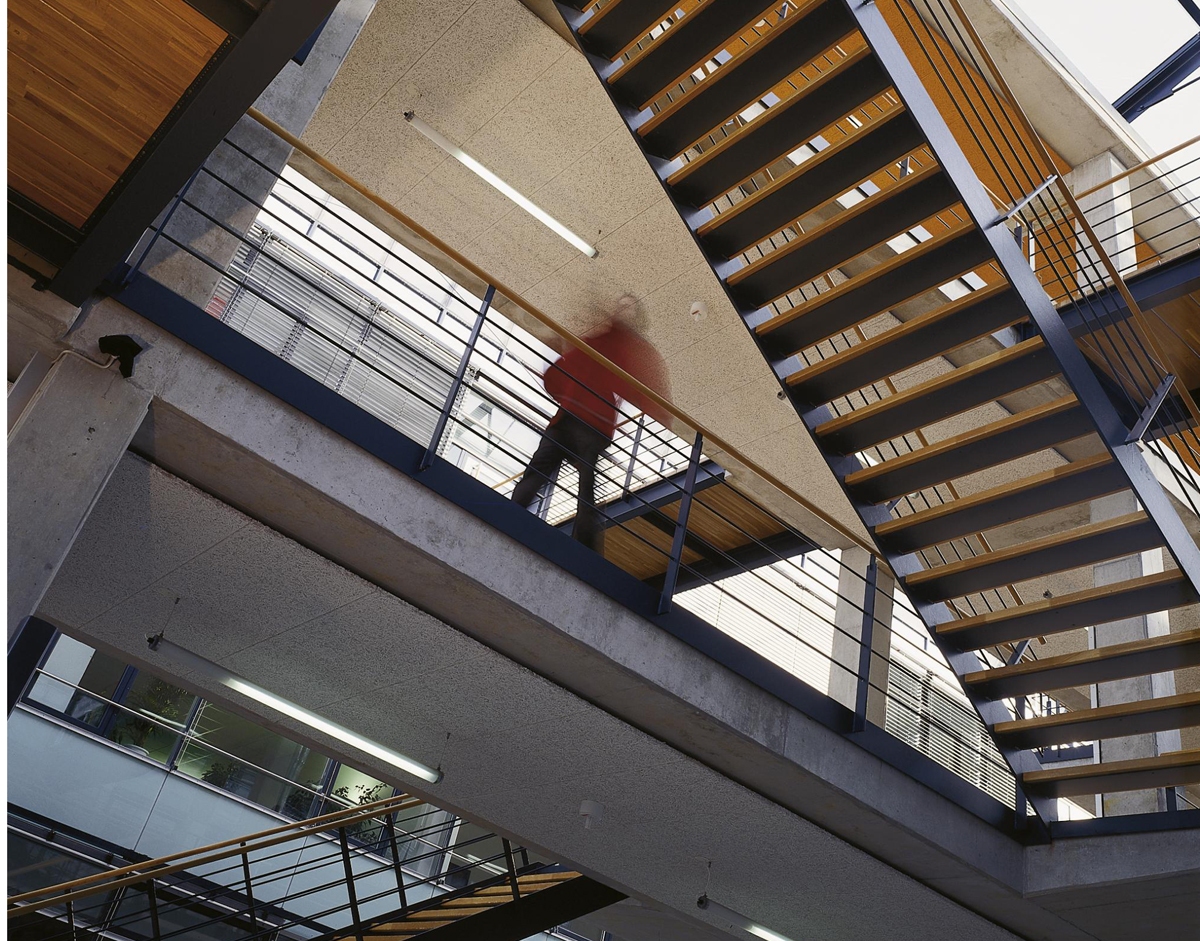

RL70 appl 9

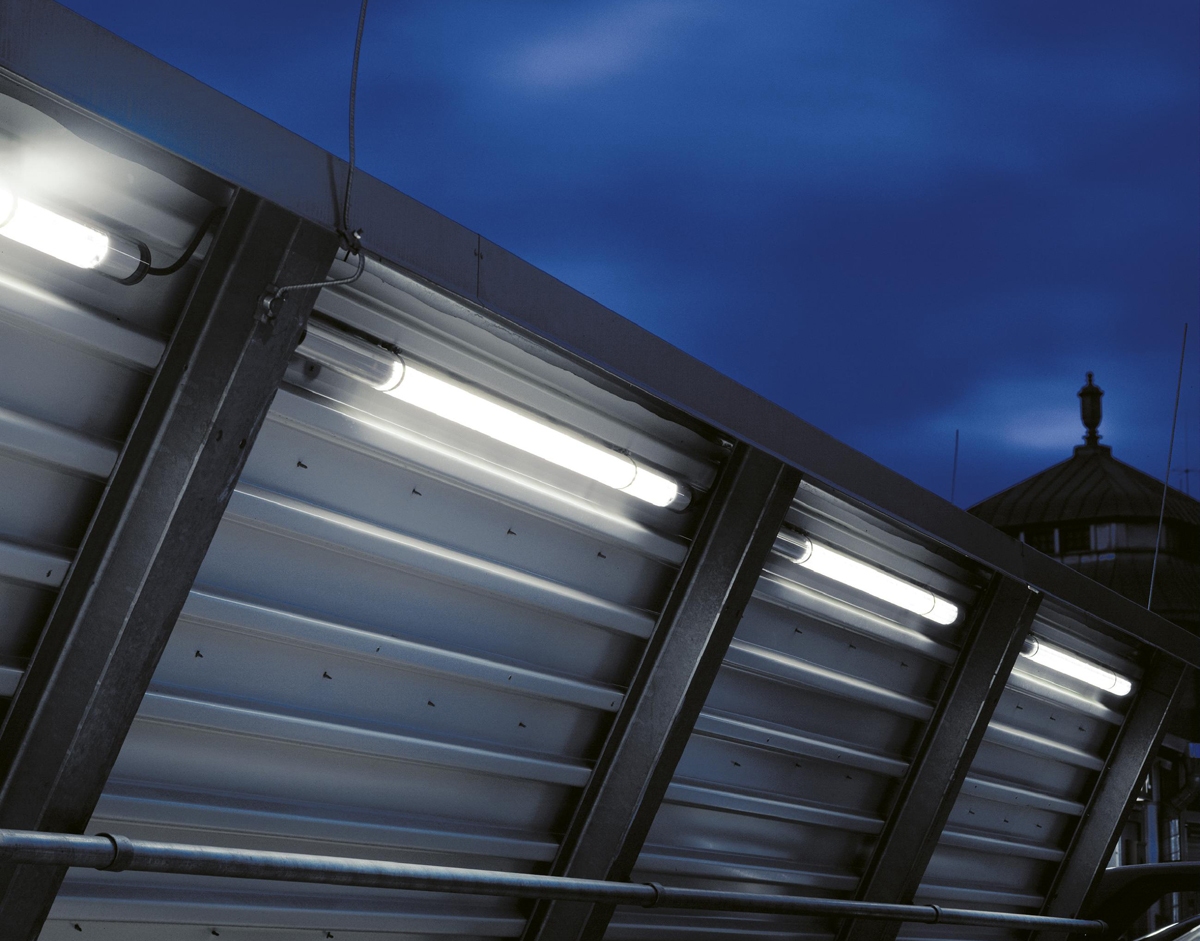

rl70 appl 11
Description Part Number Image
 MOUNTING OPTION: Pendant Ring Bracket 190173039-00071017
 MOUNTING OPTION: Pendant Strap Bracket 190178029-00071035
 MOUNTING OPTION: Surface Ring Bracket 190175019-00092090
 MOUNTING OPTION: Surface Strap Bracket 190147019-00073787
 MOUNTING OPTION: Vertical Pendant Bracket 190204029-00463171
 ACCESSORY: Decorative End Caps 330345010-00007364
330345020-00007365

ACCESSORY: Canopy, 5" diameter, with power input, white   US0300200
ACCESSORY: Canopy, 5" diameter, without power input, white   US0300210
