MACHINE LIGHT | RAPTOR

RAPTOR - non-dimmable machine light, pivoting head machine light, gooseneck machine light

RAPTOR design offers the essentials of an energy-efficient LED industrial-grade spot light to take on the volatile nature of today’s machine environments. No more shutting down machines to change the light bulbs –RAPTOR’s state of the art LED technology and strong die-cast aluminum shell provide 50,000 hours of maintenance-free operation. Available in high- and low-voltage as well as gooseneck or pivoting head versions. Bright 5000K glare-free light will brighten up any enclosure so everyone can operate at their best.

  • Available in gooseneck arm or pivoting head versions
  • 50,000 hours maintenance-free LED life
  • Sturdy die-cast aluminum housing and 3mm thick safety glass
  • IP67 protection rating
  • Choice of pinpoint or focused (10° or 30°) beam angle
  • 5000K color temperature for bright, glare-free light
  • 10-foot cord and plug included
  • ETL/cETL approved

Part No: 113259000-00641127
Model: SLJ 500/750/S
Arm Style: Pivoting Head
Voltage: 22-26V DC
Beam Angle: 10 degree
Wattage: 5W
Spec Sheet:  113259000-00641127.pdf



Part No: 113259000-00641174
Model: SLJ 500/750/S
Arm Style: Pivoting Head
Voltage: 22-26V DC
Beam Angle: 30 degree
Wattage: 5W
Spec Sheet:  113259000-00641174.pdf



Part No: 113260000-00641130
Model: SLF 500/750/S
Arm Style: Gooseneck
Voltage: 22-26V DC
Beam Angle: 10 degree
Wattage: 5W
Spec Sheet:  113260000-00641130.pdf



Part No: 113260000-00641177
Model: SLF 500/750/S
Arm Style: Gooseneck
Voltage: 22-26V DC
Beam Angle: 30 degree
Wattage: 5W
Spec Sheet:  113260000-00641177.pdf



Part No: 113261000-00641180
Model: SLF 500/750
Arm Style: Gooseneck
Voltage: 100-240V
Beam Angle: 10 degree
Wattage: 6W
Spec Sheet:  113261000-00641180.pdf



Part No: 113261000-00641183
Model: SLF 500/750
Arm Style: Gooseneck
Voltage: 100-240V
Beam Angle: 30 degree
Wattage: 6W
Spec Sheet:  113261000-00641183.pdf



Part NoModelArm StyleVoltageBeam AngleWattageSpec Sheet
113259000-00641127SLJ 500/750/SPivoting Head22-26V DC10 degree5W
113259000-00641174SLJ 500/750/SPivoting Head22-26V DC30 degree5W
113260000-00641130SLF 500/750/SGooseneck22-26V DC10 degree5W
113260000-00641177SLF 500/750/SGooseneck22-26V DC30 degree5W
113261000-00641180SLF 500/750Gooseneck100-240V10 degree6W
113261000-00641183SLF 500/750Gooseneck100-240V30 degree6W

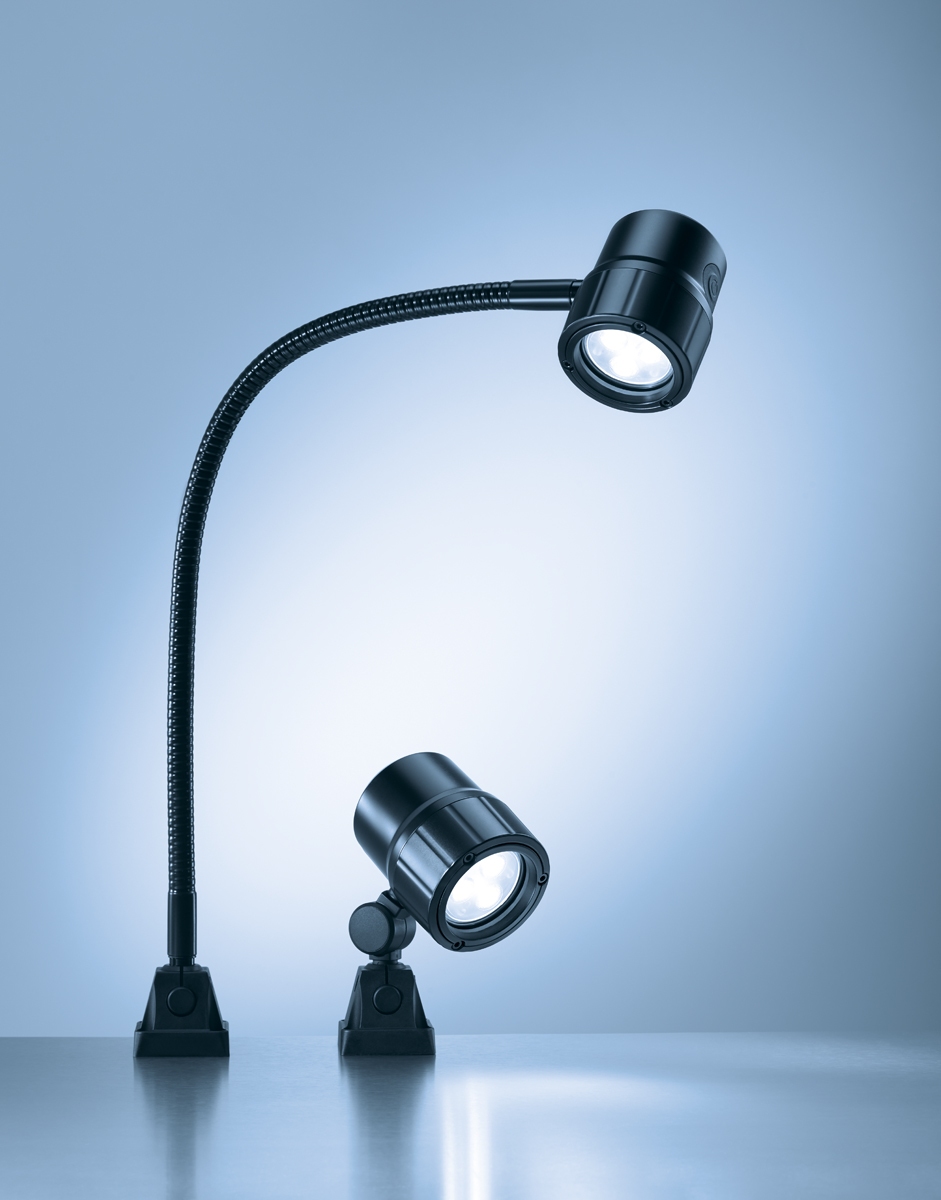

RAPTOR - gooseneck machine light
RAPTOR - non-dimmable machine light

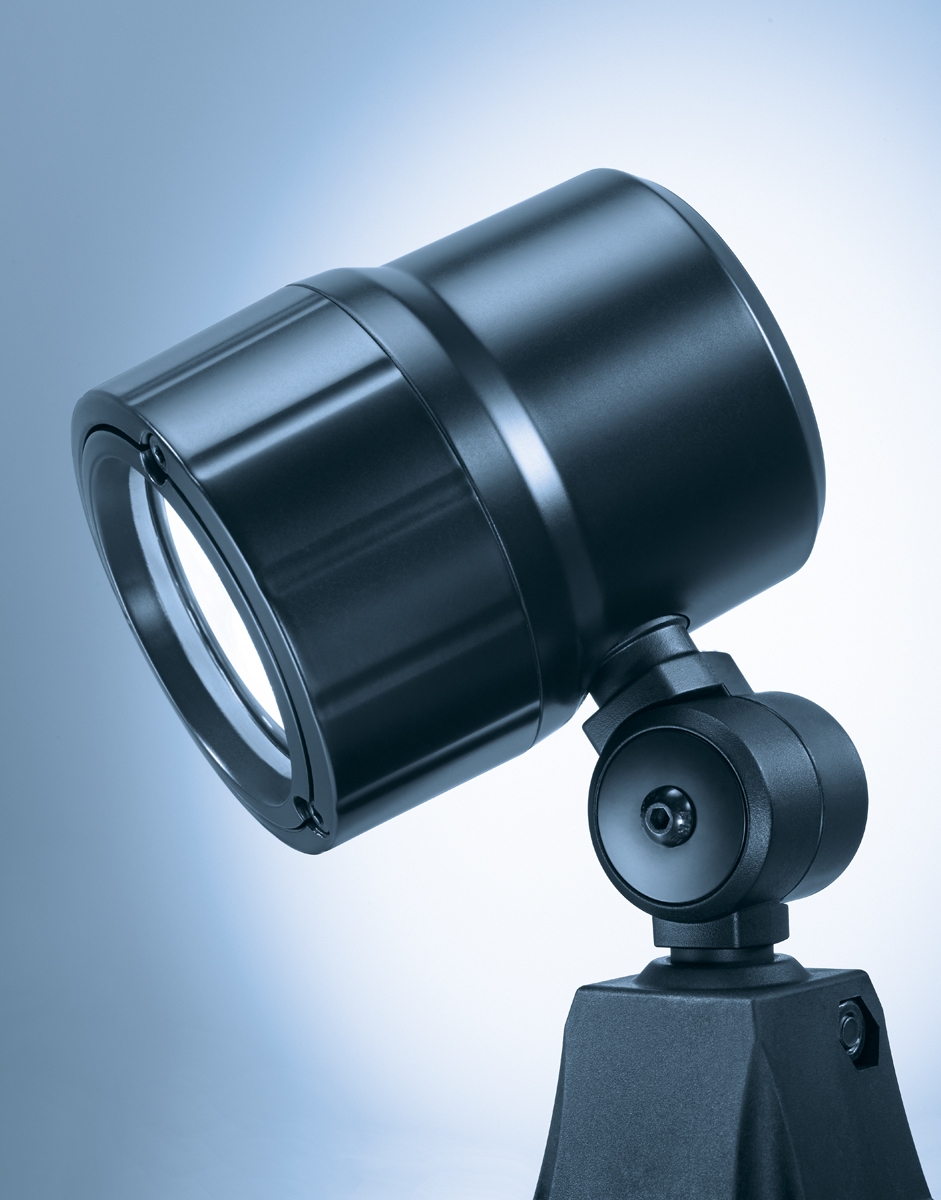

RAPTOR - pivot head machine light

 RAPTOR



Description Part Number Image
MOUNTING OPTION: Clamp, 0-2.75" span
190007019-00014904
MOUNTING OPTION: Clamp, 2.5"-5.4" span
190033019-00014950
MOUNTING OPTION: Wall Bracket for Universal Base
300213018-00025178
MOUNTING OPTION: Magnetic Base 190057019-00015056
