MACHINE LIGHT | MACH LED PLUS.forty RGB+W

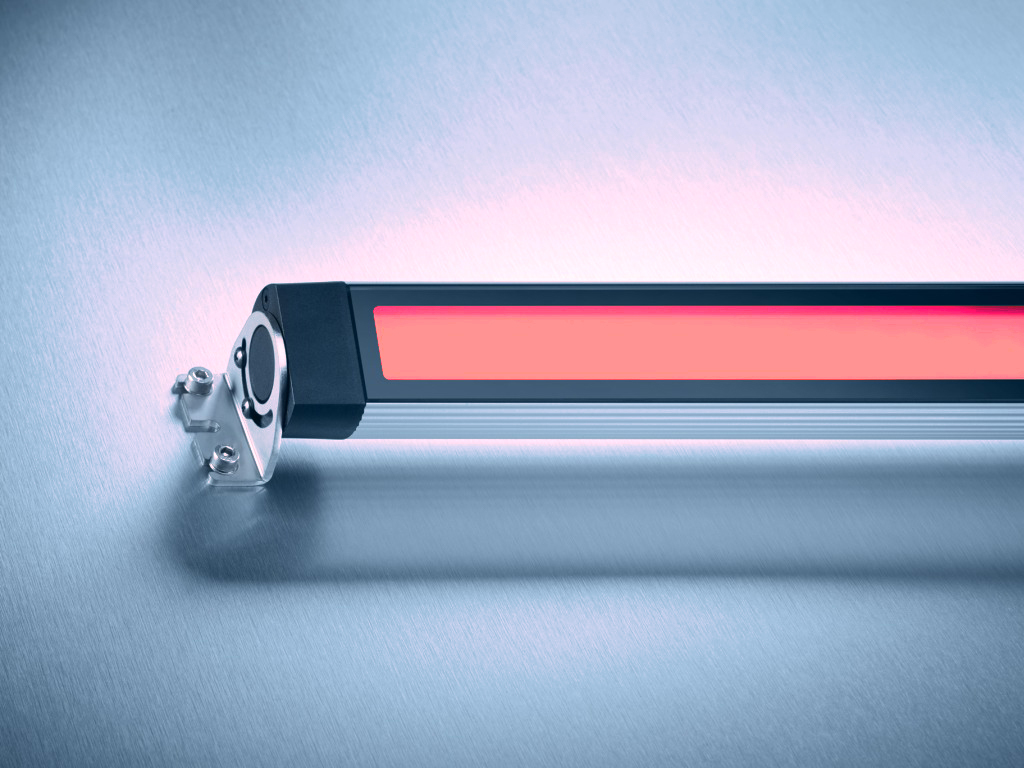

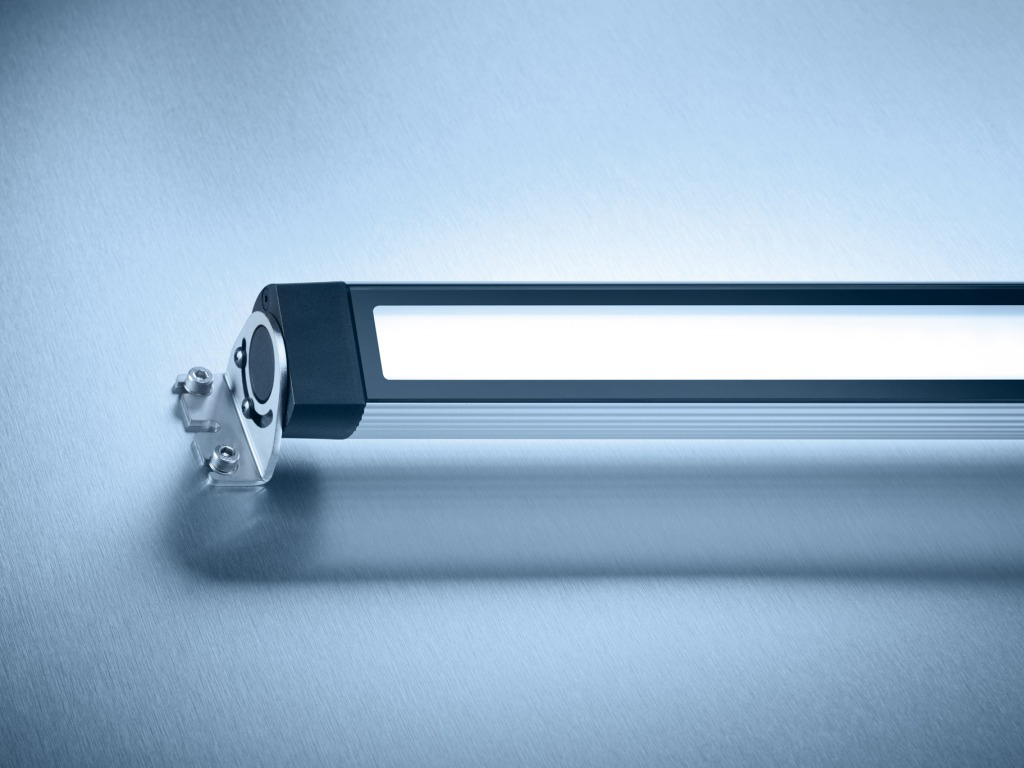

MACH LED PLUS.forty RGB+W delivers neutral white LED light with an additional 7 controllable colors and can be used for testing, signal lighting, or inspection lighting. MACH LED PLUS.forty RGB+W offers bright 5000K glare-free light in a very compact form factor. Many lengths and output levels allow for customized lighting where it’s needed. It is considered one of the most sustainable machine light on the market today and with good reason. Its cutting-edge design, top-quality materials, and highly efficient LED technology offer 60,000 hours of maintenance-free operation.
TECHNICAL DATA AT A GLANCE
- 7 controllable colors for testing, signal lighting, or inspection lighting
- Ideal where easy connection in tight space is essential
- Fully sealed against dust, water, petroleum-based fluids, and high-pressure fluid impingement
- Essential low-glare technology offers safety in machining environments
- 60,000 hours of maintenance-free LED service life
- Rugged anodized aluminum housing protects from volatile machine conditions
- Impervious to shock and vibration
- Potted M12 connector or screwed cable gland for simple installation
IP67-rated
IP67 stands for “Ingress Protection 67.” It is a standard rating that indicates the level of protection an electronic device or enclosure offers against the intrusion of solid particles (like dust) and liquids (such as water). The IP rating is followed by two numbers:
First Digit (6):
This digit represents the level of protection against solid particles. The “6” indicates that the device is dust-tight, meaning it offers complete protection against the entry of dust or other solid particles.
Second Digit (7):
This digit represents the level of protection against liquids. The “7” indicates that the device is capable of withstanding immersion in water up to 1 meter (about 3.3 feet) deep for at least 30 minutes without any harmful effects.
IP67-rated machine light is completely dust-tight and can be submerged in water for a limited time without being damaged. This rating is often used for devices that need to operate in challenging environments or conditions where exposure to dust and water is a concern.
Various Mounting Versions
M12 connection
End bracket set
Clip bracket

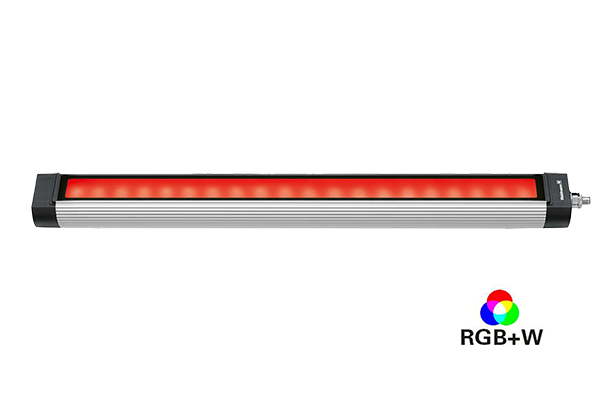

MACH LED PLUS.forty RGB +W
Parts and Specifications
Description | Part Number | Image |
MOUNTING OPTION: End Bracket Set, Adjustable, +/- 90º |
408001403-00671626 | |
MOUNTING OPTION: Clip Bracket, Adjustable, +/- 20º (sold individually) |
408001402-00671623 | |
Capacitive contact sensor with M12 plug connectors | 114129000-00805353 | |
Laser-based time-of-flight sensor with M12 plug connectors | 114128000-00805352 | |
5-pin A-coded 5 m; 5 x 0.34 mm² Cable diam. 5 mm Note: Cable for the light sold separately | US0009101 | |
5-pin A-coded 5 m; 5 x 0.34 mm² Cable diam. 5 mm 90° Angle Note: Cable for the light sold separately | US0009111 | |
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz |
209585029 | |
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz
|
209585032 |
