MACHINE LIGHT | MACH LED PLUS.forty

MACH LED PLUS.forty machine luminaire offers bright 5000K glare-free light in a very compact form factor. Many lengths and output levels allow for customizing to your lighting needs. MACH LED PLUS.forty is considered one of the most sustainable machine luminaires on the market today and with good reason - Its cutting-edge design, top quality materials, and highly efficient LED technology offer 60,000 hours of maintenance-free operation. And an M12 connector ensures fast and easy installation. MACH LED PLUS.forty has been a favorite wherever robust machine lights have been needed. Now, longer versions are available, as well as models that can perform easily in temperatures of up to 144°.

  • Many lengths available to fit into any space
  • Sealed IP67 Rated - highly resistant to coolants and lubricants
  • Beam angle option: 40° (optics) or 90° (reflector)
  • Rugged anodized aluminum housing and 4mm thick safety glass
  • Voltage 20-28V DC

     *Brackets sold separately - see Accessories

  • 60,000 hours of maintenance-free LED service life
  • Impervious to mechanical vibration
  • Able to withstand extreme ambient heat up to 122°F, with certain models up to 144°
  • Various bracket options for simple installation
  • 16-foot cord and M12 connector, A-coded (included)

Narrow your search [ Reset Selections ]

Choose the right part number by selecting the correct options below. Reset your selection to start over.

Length





Beam Angle

Wattage



Special Feature



Part No: 113262000-00800911
Model: MLAL 84 SD
Length: 41"
Beam Angle: 90º
Wattage: 21.5W-32W
Special Feature: Thru-wiring
Spec Sheet:  113262000-00800911.pdf



Part No: 113693000-00800920
Model: MLAL 126 S
Length: 60.6"
Beam Angle: 40º
Wattage: 43W-50W
Special Feature:
Spec Sheet:  113693000-00800920.pdf



Part No: 113161000-00662575
Model: MLAL 12 S
Length: 7.5"
Beam Angle: 90º
Wattage: 4W-10.5W
Special Feature:
Spec Sheet:  113161000-00662575.pdf



Part No: 113162000-00662685
Model: MLAL 27 S
Length: 14.4"
Beam Angle: 90º
Wattage: 4W-10.5W
Special Feature:
Spec Sheet:  113162000-00662685.pdf



Part No: 113693000-00801634
Model: MLAL 126 S
Length: 60.6"
Beam Angle: 90º
Wattage: 43W-50W
Special Feature:
Spec Sheet:  113693000-00801634.pdf



Part No: 113690000-00801358
Model: MLAL 27 S
Length: 14.4"
Beam Angle: 90º
Wattage: 4W-10.5W
Special Feature: High Temp
Spec Sheet:  113690000-00801358.pdf



Part No: 113163000-00662735
Model: MLAL 42 SD
Length: 21.3"
Beam Angle: 90º
Wattage: 4W-10.5W
Special Feature: Thru-wiring
Spec Sheet:  113163000-00662735.pdf



Part No: 113164000-00662806
Model: MLAL 57 S
Length: 28.2"
Beam Angle: 90º
Wattage: 21.5W-32W
Special Feature:
Spec Sheet:  113164000-00662806.pdf



Part No: 113164000-00660687
Model: MLAL 57 S
Length: 28.2"
Beam Angle: 40º
Wattage: 21.5W-32W
Special Feature:
Spec Sheet:  113164000-00660687.pdf



Part No: 113478000-00800919
Model: MLAL 126 S
Length: 60.6"
Beam Angle: 90º
Wattage: 43W-50W
Special Feature: High Temp
Spec Sheet:  113478000-00800919.pdf



Part No: 113689000-00801351
Model: MLAL 12 S
Length: 7.5"
Beam Angle: 90º
Wattage: 4W-10.5W
Special Feature: High Temp
Spec Sheet:  113689000-00801351.pdf



Part No: 113161000-00660033
Model: MLAL 12 S
Length: 7.5"
Beam Angle: 40º
Wattage: 4W-10.5W
Special Feature:
Spec Sheet:  113161000-00660033.pdf



Part No: 113161000-00662600
Model: MLAL 12 SD
Length: 7.5"
Beam Angle: 90º
Wattage: 4W-10.5W
Special Feature: Thru-wiring
Spec Sheet:  113161000-00662600.pdf



Part No: 113162000-00662706
Model: MLAL 27 SD
Length: 14.4"
Beam Angle: 90º
Wattage: 4W-10.5W
Special Feature: Thru-wiring
Spec Sheet:  113162000-00662706.pdf



Part No: 113163000-00662717
Model: MLAL 42 S
Length: 21.3"
Beam Angle: 90º
Wattage: 14W-18W
Special Feature:
Spec Sheet:  113163000-00662717.pdf



Part No: 113164000-00662833
Model: MLAL 57 SD
Length: 28.2"
Beam Angle: 90º
Wattage: 21.5W-32W
Special Feature: Thru-wiring
Spec Sheet:  113164000-00662833.pdf



Part No: 113262000-00800754
Model: MLAL84 S
Length: 41"
Beam Angle: 40º
Wattage: 21.5W-32W
Special Feature:
Spec Sheet:  113262000-00800754.pdf



Part No: 113162000-00660681
Model: MLAL 27 S
Length: 14.4"
Beam Angle: 40º
Wattage: 4W-10.5W
Special Feature:
Spec Sheet:  113162000-00660681.pdf



Part No: 113161000-00662591
Model: MLAL 12 S
Length: 7.5"
Beam Angle: 90º
Wattage: 4W-10.5W
Special Feature: PWM Interface
Spec Sheet:  113161000-00662591.pdf



Part No: 113163000-00660684
Model: MLAL 42 S
Length: 21.3"
Beam Angle: 40º
Wattage: 14W-18W
Special Feature:
Spec Sheet:  113163000-00660684.pdf



Part No: 113262000-00688552
Model: MLAL 84 S
Length: 41"
Beam Angle: 90º
Wattage: 21.5W-32W
Special Feature:
Spec Sheet:  113262000-00688552.pdf



Part No: 113693000-00800918
Model: MLAL 126 SD
Length: 60.6"
Beam Angle: 90º
Wattage: 43W-50W
Special Feature: Thru-wiring
Spec Sheet:  113693000-00800918.pdf



Part No: 113691000-00801359
Model: MLAL 42 S
Length: 21.3"
Beam Angle: 90º
Wattage: 14W-18W
Special Feature: High Temp
Spec Sheet:  113691000-00801359.pdf



Part No: 113692000-00801361
Model: MLAL 57 S
Length: 28.2"
Beam Angle: 90º
Wattage: 14W-18W
Special Feature: High Temp
Spec Sheet:  113692000-00801361.pdf



Part No: 113527000-00805412
Model: MLAL 84 S
Length: 41"
Beam Angle: 90º
Wattage: 21.5W-32W
Special Feature: High Temp
Spec Sheet:  113527000-00805412.pdf



Part No: 113162000-00662699
Model: MLAL 27 S
Length: 14.4"
Beam Angle: 90º
Wattage: 4W-10.5W
Special Feature: PWM Interface
Spec Sheet:  113162000-00662699.pdf



Part No: 113163000-00662729
Model: MLAL 42 S
Length: 21.3"
Beam Angle: 90º
Wattage: 14W-18W
Special Feature: PWM Interface
Spec Sheet:  113163000-00662729.pdf



Part No: 113164000-00662821
Model: MLAL 57 S
Length: 28.2"
Beam Angle: 90º
Wattage: 21.5W-32W
Special Feature: PWM Interface
Spec Sheet:  113164000-00662821.pdf



Part NoModelLengthBeam Angle Special FeatureWattage Spec Sheet
113262000-00800911MLAL 84 SD41"90º21.5W-32WThru-wiring32W
113693000-00800920MLAL 126 S60.6"40º43W-50W  50W
113161000-00662575MLAL 12 S 7.5"90º 4W-10.5W 5W
113162000-00662685MLAL 27 S14.4"90º 4W-10.5W 10.5W
113693000-00801634MLAL 126 S60.6"90º43W-50W 50W
113690000-00801358MLAL 27 S14.4"90º 4W-10.5WHigh Temp9W
113163000-00662735MLAL 42 SD21.3"90º 4W-10.5WThru-wiring16W
113164000-00662806MLAL 57 S 28.2"90º21.5W-32W 21.5W
113164000-00660687MLAL 57 S28.2"40º21.5W-32W 21.5W
113478000-00800919MLAL 126 S60.6"90º43W-50WHigh Temp43W
113689000-00801351MLAL 12 S 7.5"90º 4W-10.5WHigh Temp4W
113161000-00660033MLAL 12 S 7.5"40º 4W-10.5W 5W
113161000-00662600MLAL 12 SD 7.5"90º 4W-10.5WThru-wiring5W
113162000-00662706MLAL 27 SD14.4"90º 4W-10.5WThru-wiring10.5W
113163000-00662717MLAL 42 S21.3"90º14W-18W 16W
113164000-00662833MLAL 57 SD28.2"90º21.5W-32WThru-wiring21.5W
113262000-00800754MLAL84 S41"40º21.5W-32W 32W
113162000-00660681MLAL 27 S14.4"40º 4W-10.5W 10.5W
113161000-00662591MLAL 12 S 7.5"90º 4W-10.5WPWM Interface5W
113163000-00660684MLAL 42 S21.3"40º14W-18W 16W
113262000-00688552MLAL 84 S41"90º21.5W-32W 32W
113693000-00800918MLAL 126 SD60.6"90º43W-50WThru-wiring50W
113691000-00801359MLAL 42 S21.3"90º14W-18WHigh Temp14W
113692000-00801361MLAL 57 S28.2"90º14W-18WHigh Temp18W
113527000-00805412MLAL 84 S41"90º21.5W-32WHigh Temp28W
113162000-00662699MLAL 27 S14.4"90º 4W-10.5WPWM Interface10.5W
113163000-00662729MLAL 42 S21.3"90º14W-18WPWM Interface16W
113164000-00662821MLAL 57 S28.2"90º21.5W-32WPWM Interface21.5W

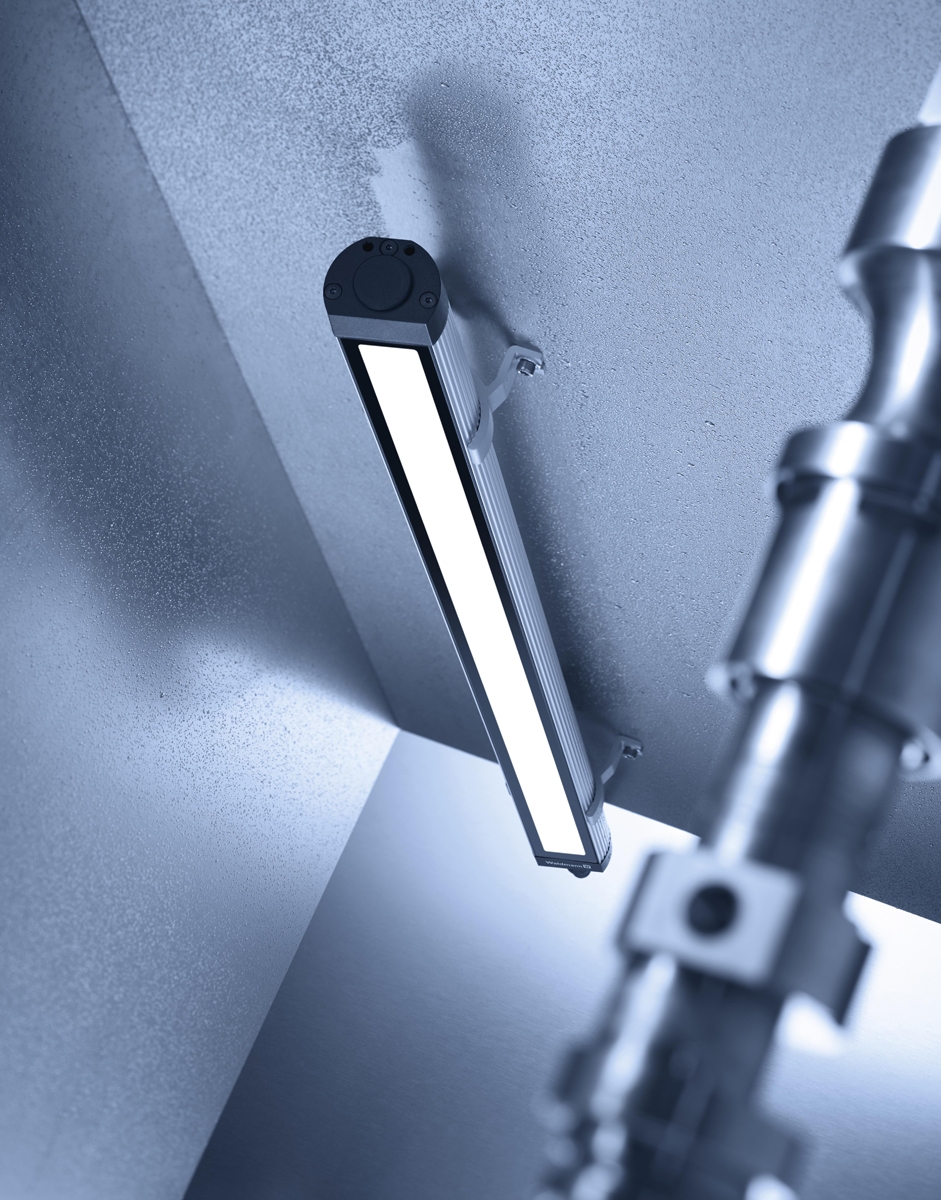

MACH LED PLUS.40 APPL 2

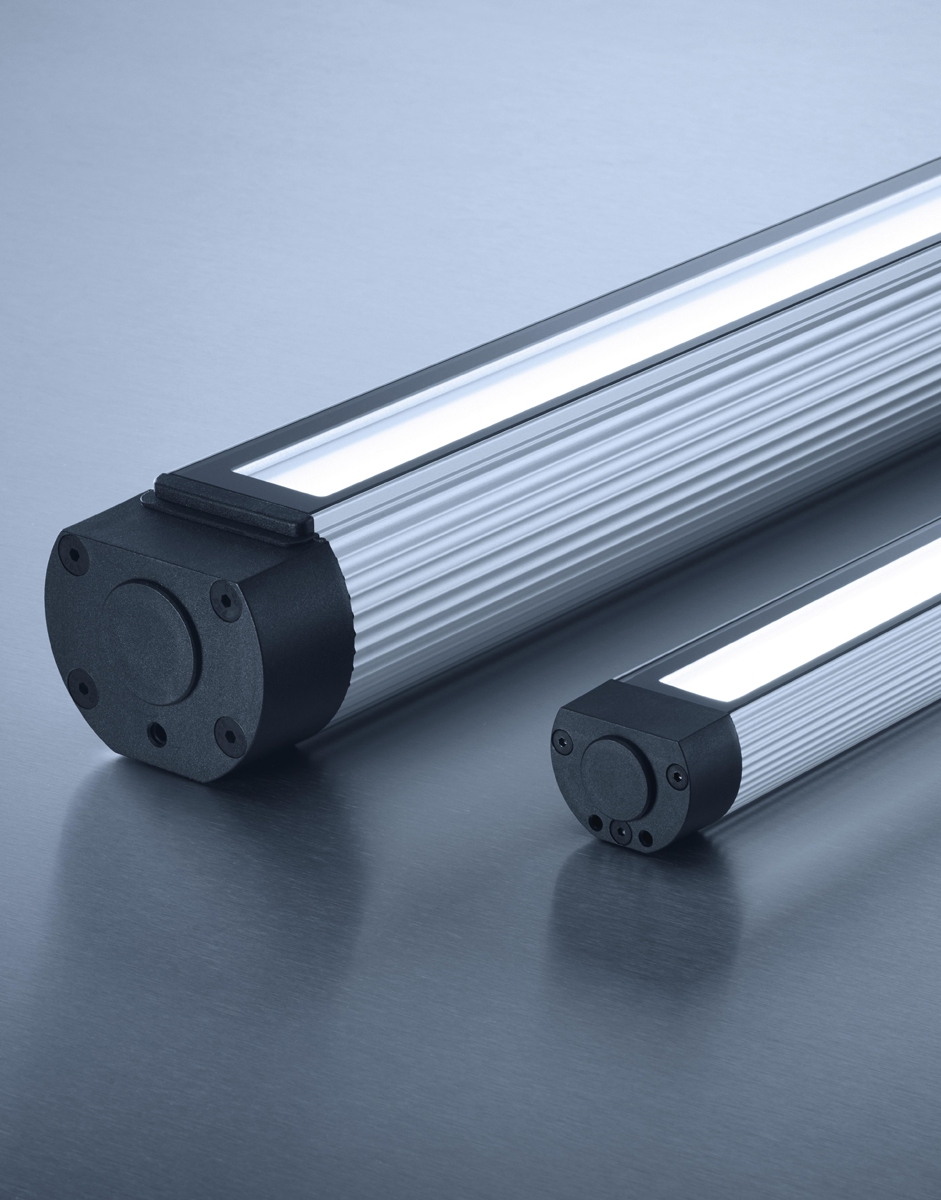

MACH LED PLUS.40 AND .70
MACH LED PLUS.40 40 BEAM

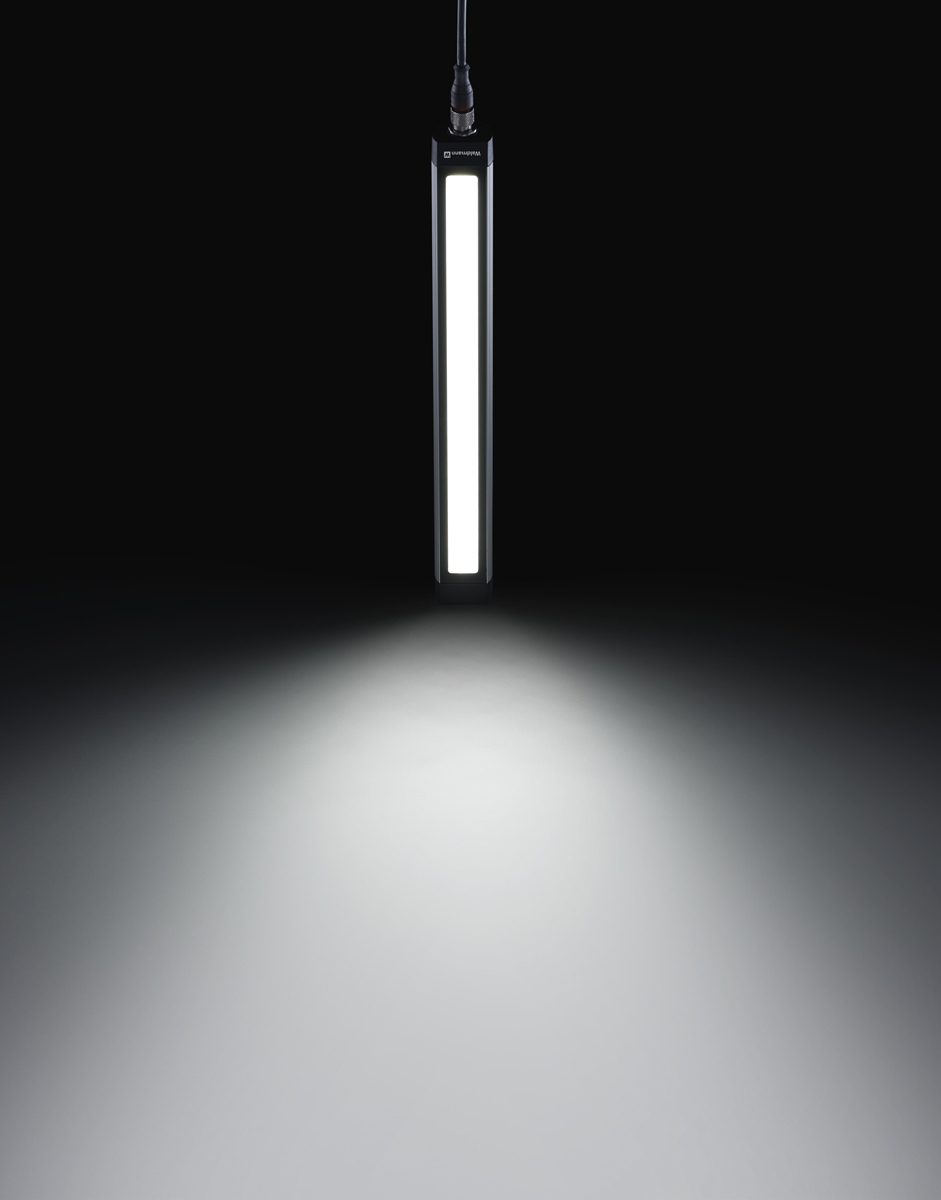

MACH LED PLUS.40 90 BEAM

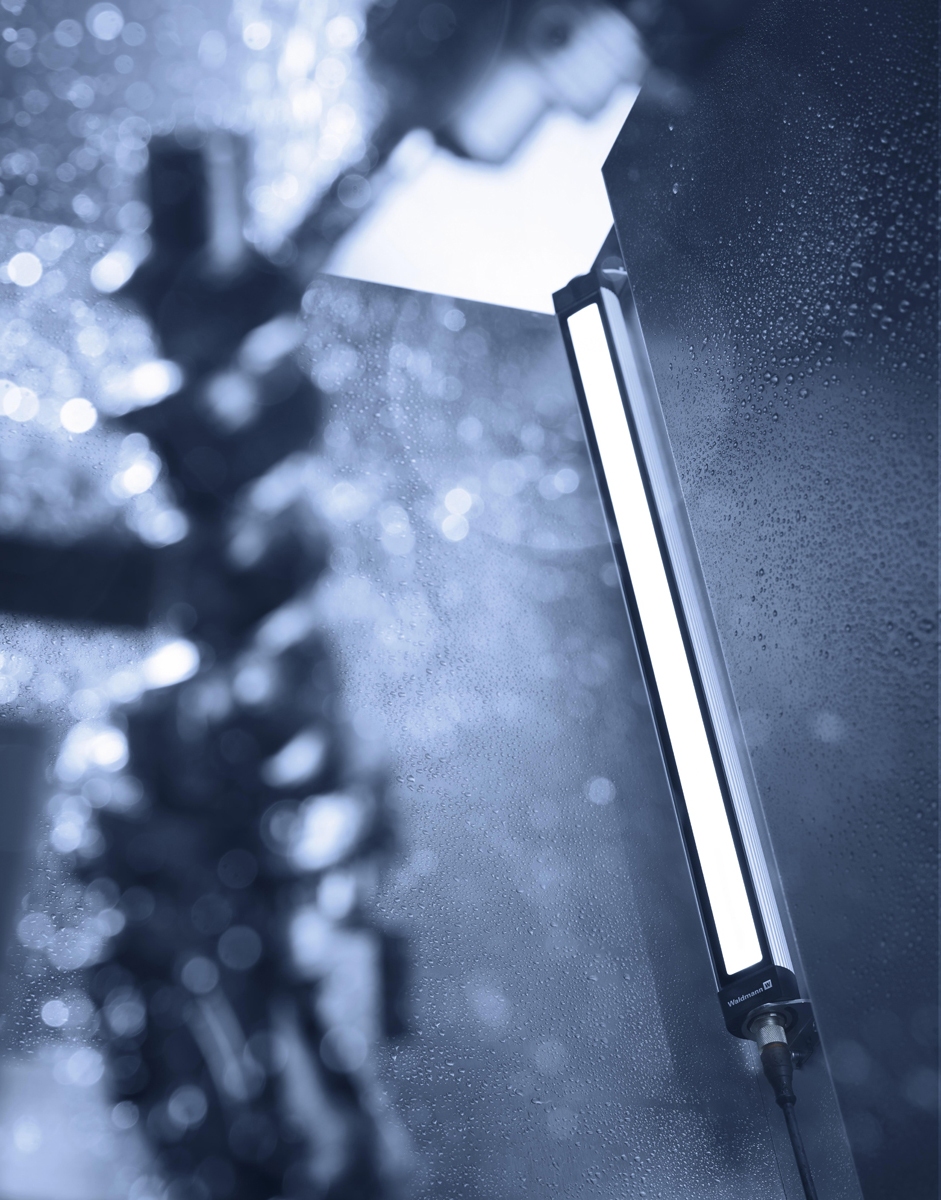

MACH LED PLUS.40 APPL 1

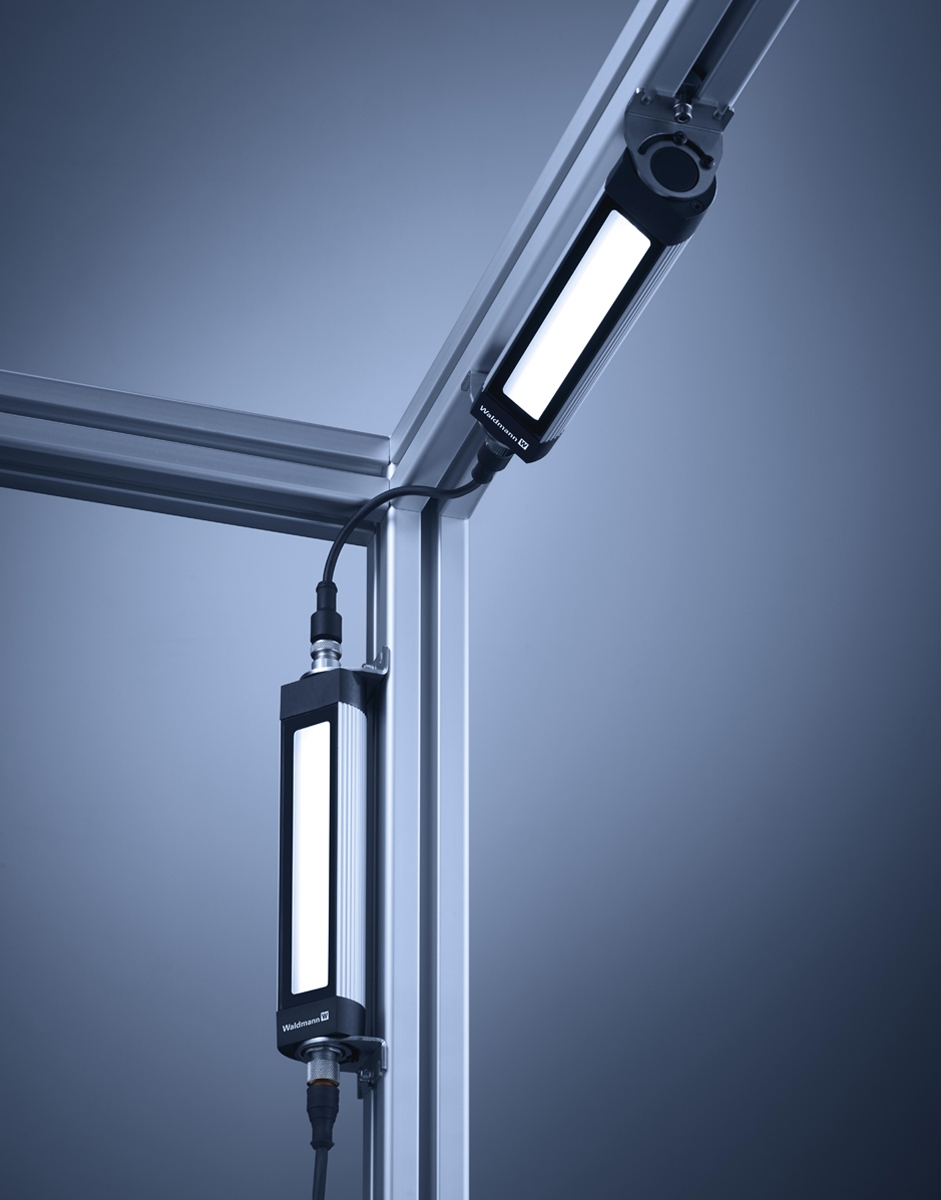

MACH LED PLUS.40 40 TWO ON SYSTEM

MACH LED PLUS.forty

Product Video





Parts and Specifications

Description Part Number Image
MOUNTING OPTION: End Bracket Set, Adjustable, +/- 90º
408001403-00671626
MOUNTING OPTION: Clip Bracket, Adjustable, +/- 20º (sold individually)
408001402-00671623
CONNECTOR/CABLE: 16' Cord with 4-pin, A-coded M12 connector, straight (included)  US0009001
CONNECTOR/CABLE: 16' Cord with 4-pin, A-coded M12 connector, angled  US0009011
 CONNECTOR: M12 Connector, 4-pin, A-coded for 24V thru-wiring  336884M10
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz
209585029
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz
209585030
OPERATING DEVICE: Max Wattage = 96W to run at 120-277V, 50/60Hz
209585032
