LINURA.maxx – Offering specific features for your specific needs - Waldmann's newest LED surface-mounted lighting system is designed for applications with automated manufacturing in mind. Designed with strength, flexibility and many options, its narrow profile and high intensity light make the LINURA Series ideal for use in conveyor or inspection lines, vision systems and any other automated manufacturing environment. The M12 connection and straightforward mounting system also make it extremely simple to connect and operate.
Performance:

Powerful and homogeneous light, better performance:
With the latest LED technology (> 170 lm / W) and a lens to distribute light to optimum effect in a highly efficient manner while also improving the price-performance ratio.

Quality:

Robust housing made to last:

A strong aluminum housing provides protection from the surrounding environment. The special engineered seal for lens and side components helps LINURA.maxx maintain operation even in extreme ambient temperatures and keeps liquid and dust from entering the interior (IP54).

Design:

User-oriented design, great functionality:
The slimline design of this luminaire enables it to blend in seamlessly with the machine. Great aesthetics with high functionality.

Connectivity:

More connection options, now with IO-Link:
Special features: Advanced and IO-Link functions ensure that specific manufacturing requirements can easily be met.
Linura.maxx Advanced:  Choice of eight-step dimming functions. Ten lengths available with thru-wire option.

Linura.maxx IO-Link: The IO-Link function provides intelligent lighting solutions for automation and enables seamless integration into any IO-Link architecture via an IO-Link interface.


Part No: 114111000-00804047
Length: 7.7"
Special Feature: Advanced
Wattage: 5W
Lumens: 550
Thru-wire: No
Spec Sheet:  114111000-00804047.pdf



Part No: 114112000-00804048
Length: 7.7"
Special Feature: Advanced
Wattage: 5W
Lumens: 550
Thru-wire: Yes
Spec Sheet:  114112000-00804048.pdf



Part No: 114113000-00804049
Length: 14"
Special Feature: IO-Link Interface
Wattage: 9W
Lumens: 1100
Thru-wire: No
Spec Sheet:  114113000-00804049.pdf



Part No: 114114000-00804050
Length: 14"
Special Feature: Advanced
Wattage: 9W
Lumens: 1100
Thru-wire: No
Spec Sheet:  114114000-00804050.pdf



Part No: 114115000-00804051
Length: 14"
Special Feature: Advanced
Wattage: 9W
Lumens: 1100
Thru-wire: Yes
Spec Sheet:  114115000-00804051.pdf



Part No: 114116000-00804052
Length: 18.7"
Special Feature: IO-Link Interface
Wattage: 13W
Lumens: 1650
Thru-wire: No
Spec Sheet:  114116000-00804052.pdf



Part No: 114117000-00804053
Length: 18.7"
Special Feature: Advanced
Wattage: 13W
Lumens: 2200
Thru-wire: No
Spec Sheet:  114117000-00804053.pdf



Part No: 114118000-00804054
Length: 18.7"
Special Feature: Advanced
Wattage: 13W
Lumens: 2200
Thru-wire: Yes
Spec Sheet:  114118000-00804054.pdf



Part No: 114119000-00804055
Length: 24.2"
Special Feature: IO-Link Interface
Wattage: 17W
Lumens: 2200
Thru-wire: No
Spec Sheet:  114119000-00804055.pdf



Part No: 114120000-00804056
Length: 24.2"
Special Feature: Advanced
Wattage: 17W
Lumens: 2200
Thru-wire: No
Spec Sheet:  114120000-00804056.pdf



Part No: 114121000-00804056
Length: 24.2"
Special Feature: Advanced
Wattage: 17W
Lumens: 2200
Thru-wire: Yes
Spec Sheet:



Part No: 114122000-00804058
Length: 29.7"
Special Feature: IO-Link Interface
Wattage: 21W
Lumens: 2700
Thru-wire: No
Spec Sheet:  114122000-00804058.pdf



Part No: 114123000-00804059
Length: 29.7"
Special Feature: Advanced
Wattage: 21W
Lumens: 2700
Thru-wire: No
Spec Sheet:  114123000-00804059.pdf



Part No: 114124000-00804060
Length: 29.7"
Special Feature: Advanced
Wattage: 21W
Lumens: 2700
Thru-wire: Yes
Spec Sheet:  114124000-00804060.pdf



Part No: 114125000-00804061
Length: 35.2"
Special Feature: IO-Link Interface
Wattage: 25W
Lumens: 3300
Thru-wire: No
Spec Sheet:  114125000-00804061.pdf



Part No: 114126000-00804062
Length: 35.2"
Special Feature: Advanced
Wattage: 25W
Lumens: 3300
Thru-wire: No
Spec Sheet:  114126000-00804062.pdf



Part No: 114127000-00804063
Length: 35.2"
Special Feature: Advanced
Wattage: 25W
Lumens: 3300
Thru-wire: Yes
Spec Sheet:  114127000-00804063.pdf



Part NoLengthSpecial FeatureWattageLumensThru-wireSpec Sheet
114111000-008040477.7"Advanced5W550No
114112000-008040487.7"Advanced5W550Yes
114113000-0080404914"IO-Link Interface9W1100No
114114000-0080405014"Advanced9W1100No
114115000-0080405114"Advanced9W1100Yes
114116000-0080405218.7"IO-Link Interface13W1650No
114117000-0080405318.7"Advanced13W2200No
114118000-0080405418.7"Advanced13W2200Yes
114119000-0080405524.2"IO-Link Interface17W2200No
114120000-0080405624.2"Advanced17W2200No
114121000-0080405624.2"Advanced17W2200Yes
114122000-0080405829.7"IO-Link Interface21W2700No
114123000-0080405929.7"Advanced21W2700No
114124000-0080406029.7"Advanced21W2700Yes
114125000-0080406135.2"IO-Link Interface25W3300No
114126000-0080406235.2"Advanced25W3300No
114127000-0080406335.2"Advanced25W3300Yes

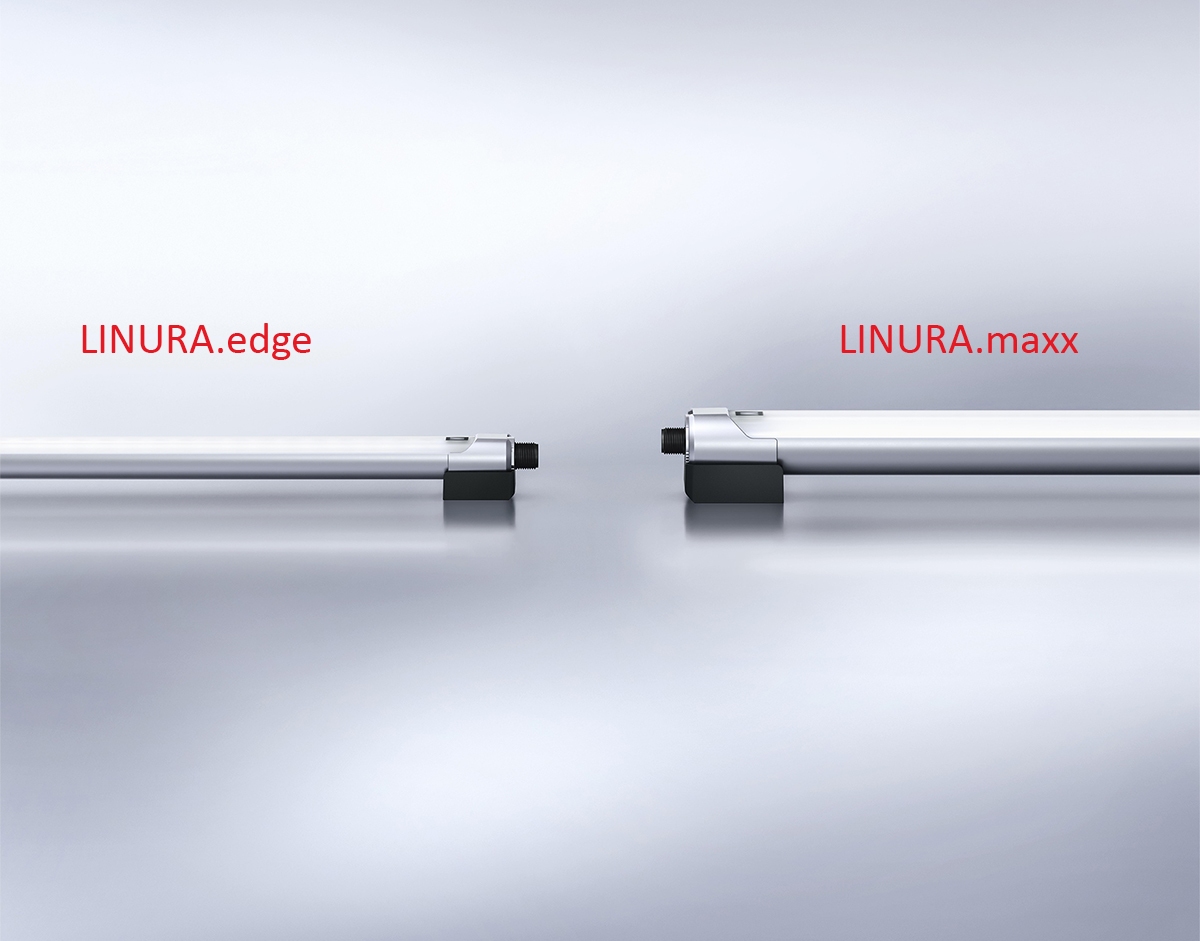

LINURA.maxx gallery 2

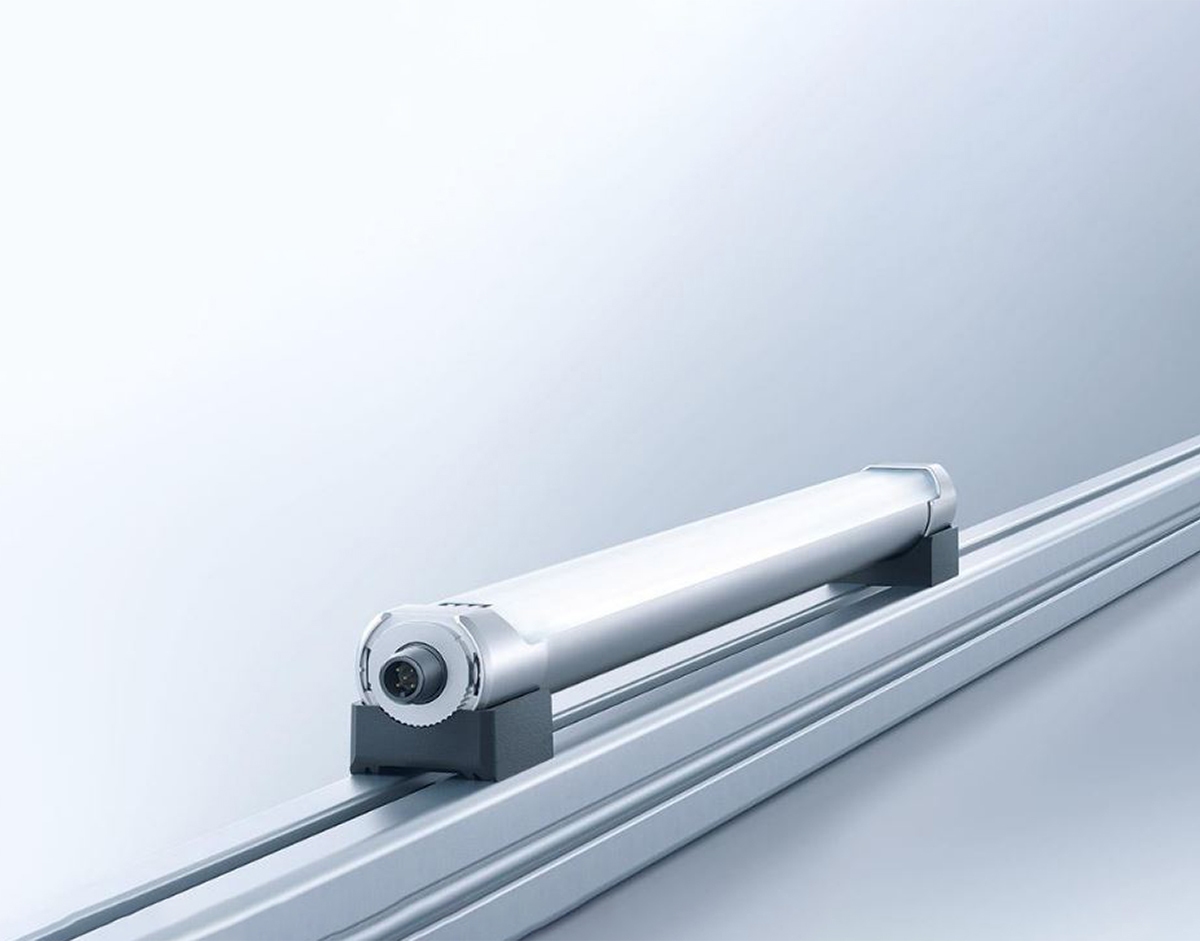

LINURA.maxx gallery 1

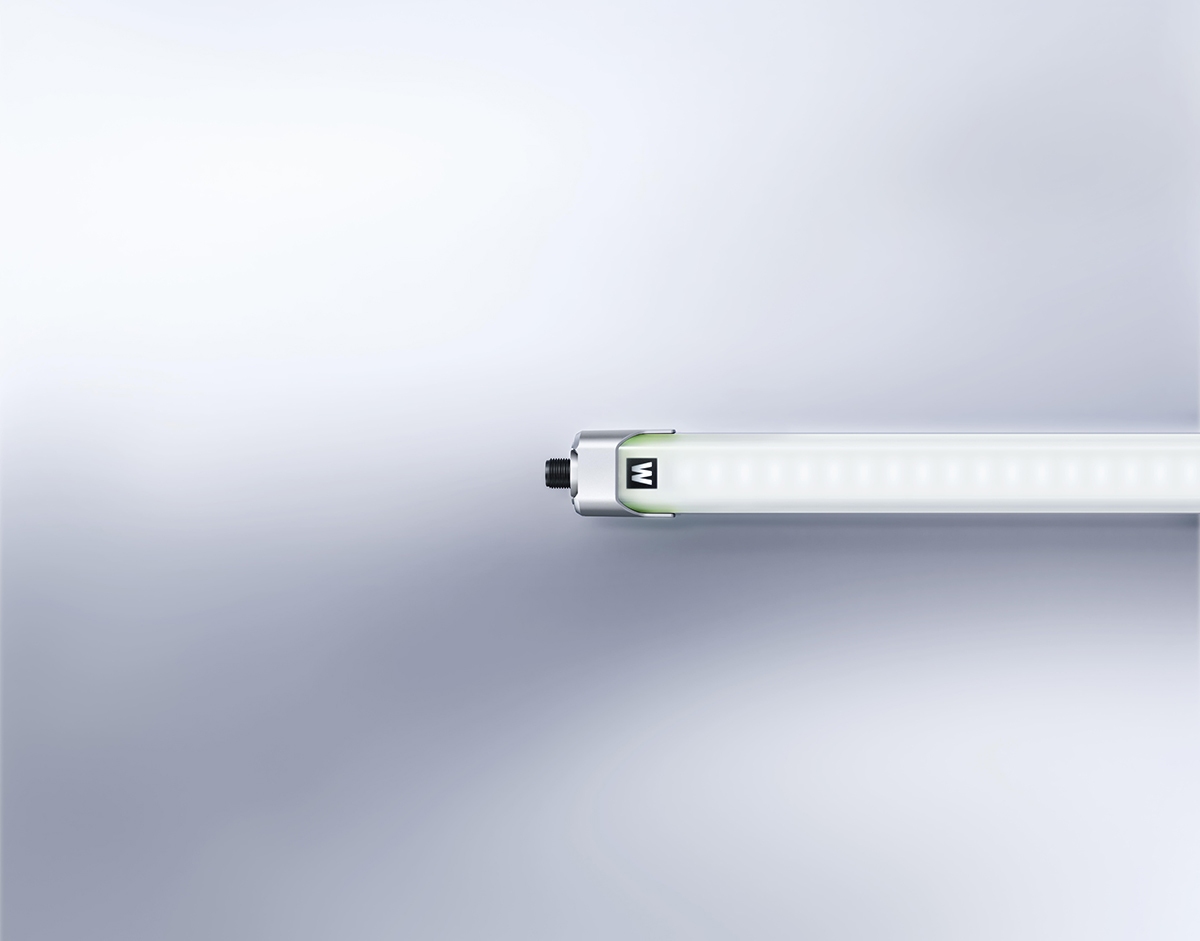

LINURA.maxx gallery 3

LINURA.edge RGB



Description Part Number Image
Capacitive contact sensor with M12 plug connectors 114129000-00805353
Laser-based time-of-flight sensor with M12 plug connectors 114128000-00805352

5-pin A-coded 5 m; 5 x 0.34 mm² Cable diam. 5 mm

Note: Cable for the light sold separately

US0009101

5-pin A-coded 5 m; 5 x 0.34 mm² Cable diam. 5 mm 90° Angle

Note: Cable for the light sold separately

US0009111
CONNECTOR: M12 Connector, A-coded, 4 pin, male (for 24V) 336884M10
CONNECTOR: M12 Connector, A-coded, 5 pin, male (for thru-wire)  336615M19
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz
 209585029
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz
 209585030
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz
 209585032
