THE LIGHT OF NEW POSSIBILITIES

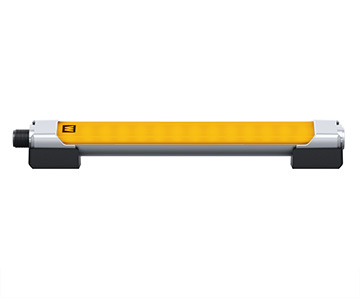

LINURA.edge YELLOW

Photo chemically sensitive processes require an equally sensitive lighting solution. Specially developed for use in microelectronics, photolithography, pharmaceuticals and more, LINURA.edge Yellow provides efficient UV-free light, protecting photoresists material from unintentional exposure.

AS SHORT AND TECHNICAL AS POSSIBLE

Lamps:
LED Technologie
Color temperature:
yellow
Beam angle:
approx. 90°
Glare-free technology:
direct beam via a diffuse lens
Housing:
basic body made of aluminum, lens made of PMMA, side parts made of glass fibre-reinforced PA
Ambient temperature Tamax:
40° C  (104° F)
Degree of protection / Protection:
IP 54 / III
Connection:
M12 plug connector (aligned), A-coded
Power supply:
22 – 26 VDC
Control:
Digital inputs for powerless switching
Certificates:
CE, cETLus, D
Accessories:
manual pushbutton and distance sensor for looping into the supply line (for variants with ADVANCED package) bracket, + / - 60° adjustable (bracket included with light)

THE LINURA FAMILY AT A GLANCE

Performance

Powerful and homogeneous light, better performance:
With the latest LED technology (> 170 lm / W) and a lens to distribute light to optimum effect in a highly efficient manner while also improving the price-performance ratio. You can achieve the same level of lighting as before, but with smaller or fewer lights.

Quality

Robust housing, less downtime.
A simple body made of aluminum, a lens made of PMMA, side parts made of glass-fiber-reinforced plastic (GRP). The special sealing concept for lens and side parts make this light resistant to high ambient temperatures, liquids and dust

Compactness

Slim design, less space required:
It has been possible to compress the dimensions of the electronics and design (LINURA is available with diameters of 25 mm and 35 mm), the light can be installed in tight spaces or in aluminum system and electrical cabinets.

Design

User-oriented design, great functionality:
The LINURAS slim profile enables it to blend in seamlessly with the machine. Great aesthetics with high functionality.

Variety

Many sizes, more flexible application options:
To enable LINURA to be used as flexibly as possible, we have developed two basic concepts with variable lengths based on a 140 mm grid: 10 lengths with a diameter of 25 mm and 6 lengths with a diameter of 35 mm. This ensures that optimum lighting conditions can be achieved everywhere and at all times.

Price

The correct degree of protection that is appropriate for the application and a better price.
Thanks to a proprietary sealing concept developed for IP54, the seals are integrated in the enclosures, no adhesive bonding is required which helps to reduce the overall cost of the light.

Mounting

Universal light bracket, problem-free installation:
The light includes brackets that make installation much simpler in typical situations such as aluminum system and electrical cabinets. The adjustment range of + / - 60° means that this light can be used almost anywhere – and the changeover to LINURA is a very simple process.

Connection

More connection options, less wiring:
LINURA has an integrated M12 connection and can connect other lights (variants). Control is performed via digital interfaces. This greatly reduces the amount of wiring needed.
