    LINURA.edge





LINURA.edge - Waldmann's newest LED surface-mounted lighting system is designed for applications with automated manufacturing in mind. With strength, flexibility and many options, its narrow profile and high intensity light make the LINURA Series ideal for use in conveyor or inspection lines, vision systems and any other automated manufacturing environment. The M12 connection and straightforward mounting system also make it extremely simple to connect and operate.


Quality smooth, even light for better performance:

With the latest LED technology (>170 lm / W) and a PMMA acrylic lens to distribute light to optimum effect, you can achieve the same level of lighting as before, but with smaller or fewer fixtures.

Robust housing made to last:

A strong aluminum profile and a lens made of PMMA acrylic provide strength and resistance from the surrounding environment. The special sealing concept for lens and side parts make LINURA.edge resistant to high ambient temperatures, liquids and dust (IP54).


Many sizes, more flexible application options:

LINURA.edge gets down to basics with its practical design.Ten lengths based on a 5.5-inch (140 mm) grid ensures that optimum lighting conditions can be achieved anywhere and anytime.

Slim design, less space required:

With streamlined design, very small dimensions (measuring less than an inch in diameter) and an easy M12 connection, it is easier than ever to get light to any area that you need it, such as machine cabinets or any area, large or small where good lighting is essential.

Narrow your search [ Reset Selections ]

Choose the right part number by selecting the correct options below. Reset your selection to start over.

Special Features

Thru-wire

Length




Wattage




Part No: 114041000-00801360
Length: 29.7"
Special Features:
Wattage: 15W
Lumens: 1575
Thru-wire: No
Spec Sheet:  114041000-00801360.pdf
IES:  114041000-00801360.ies



Part No: 114042000-00801366
Length: 35.2"
Special Features:
Wattage: 18W
Lumens: 1890
Thru-wire: Yes
Spec Sheet:  114042000-00801366.pdf
IES:  114042000-00801366.ies



Part No: 114043000-00801374
Length: 35.2"
Special Features:
Wattage: 18W
Lumens: 1890
Thru-wire: No
Spec Sheet:  114043000-00801374.pdf
IES:  114043000-00801374.ies



Part No: 114045000-00801392
Length: 40.7"
Special Features:
Wattage: 21W
Lumens: 2205
Thru-wire: No
Spec Sheet:  114045000-00801392.pdf
IES:  114045000-00801392.ies



Part No: 114046000-00801393
Length: 46.3"
Special Features:
Wattage: 24W
Lumens: 2520
Thru-wire: Yes
Spec Sheet:  114046000-00801393.pdf
IES:  114046000-00801393.ies



Part No: 114047000-00801394
Length: 46.3"
Special Features:
Wattage: 24W
Lumens: 2520
Thru-wire: No
Spec Sheet:  114047000-00801394.pdf
IES:  114047000-00801394.ies



Part No: 114048000-00801396
Length: 51.7"
Special Features:
Wattage: 27W
Lumens: 2835
Thru-wire: Yes
Spec Sheet:  114048000-00801396.pdf
IES:  114048000-00801396.ies



Part No: 114049000-00801397
Length: 51.7"
Special Features:
Wattage: 27W
Lumens: 2835
Thru-wire: No
Spec Sheet:  114049000-00801397.pdf
IES:  114049000-00801397.ies



Part No: 114050000-00801408
Length: 57.2"
Special Features:
Wattage: 30W
Lumens: 3150
Thru-wire: Yes
Spec Sheet:  114050000-00801408.pdf
IES:  114050000-00801408.ies



Part No: 114032000-00801320
Length: 7.7"
Special Features:
Wattage: 3W
Lumens: 315
Thru-wire: Yes
Spec Sheet:  114032000-00801320.pdf
IES:  114032000-00801320.ies



Part No: 114034000-00801344
Length: 13.2"
Special Features:
Wattage: 6W
Lumens: 630
Thru-wire: Yes
Spec Sheet:  114034000-00801344.pdf
IES:  114034000-00801344.ies



Part No: 114044000-00801380
Length: 40.7"
Special Features:
Wattage: 21W
Lumens: 2205
Thru-wire: Yes
Spec Sheet:  114044000-00801380.pdf
IES:  114044000-00801380.ies



Part No: 114033000-00801340
Length: 7.7"
Special Features:
Wattage: 3W
Lumens: 315
Thru-wire: No
Spec Sheet:  114033000-00801340.pdf
IES:  114033000-00801340.ies



Part No: 114051000-00801409
Length: 57.2"
Special Features:
Wattage: 30W
Lumens: 3150
Thru-wire: No
Spec Sheet:  114051000-00801409.pdf
IES:  114051000-00801409.ies



Part No: 114052000-00802116
Length: 7.7"
Special Features: RGB
Wattage: 3W
Lumens: 70
Thru-wire: No
Spec Sheet:  114052000-00802116.pdf
IES:



Part No: 114035000-00801346
Length: 13.2"
Special Features:
Wattage: 6W
Lumens: 630
Thru-wire: No
Spec Sheet:  114035000-00801346.pdf
IES:  114035000-00801346.ies



Part No: 114036000-00801348
Length: 18.7"
Special Features:
Wattage: 9W
Lumens: 945
Thru-wire: Yes
Spec Sheet:  114036000-00801348.pdf
IES:  114036000-00801348.ies



Part No: 114040000-00801356
Length: 29.7"
Special Features:
Wattage: 15W
Lumens: 1575
Thru-wire: Yes
Spec Sheet:  114040000-00801356.pdf
IES:  114040000-00801356.ies



Part No: 114037000-00801349
Length: 18.7"
Special Features:
Wattage: 9W
Lumens: 945
Thru-wire: No
Spec Sheet:  114037000-00801349.pdf
IES:  114037000-00801349.ies



Part No: 114038000-00801350
Length: 24.2"
Special Features:
Wattage: 12W
Lumens: 1260
Thru-wire: Yes
Spec Sheet:  114038000-00801350.pdf
IES:  114038000-00801350.ies



Part No: 114039000-00801355
Length: 24.2"
Special Features:
Wattage: 12W
Lumens: 1260
Thru-wire: No
Spec Sheet:  114039000-00801355.pdf
IES:  114039000-00801355.ies



Part No: 114055000-00802119
Length: 24.2"
Special Features: RGB
Wattage: 12W
Lumens: 280
Thru-wire: No
Spec Sheet:  114055000-00802119.pdf
IES:



Part No: 114083000-00803513
Length: 13.2"
Special Features: Advanced
Wattage: 5W
Lumens: 630
Thru-wire: Yes
Spec Sheet:  114083000-00803513.pdf
IES:  114083000-00803513.ies



Part No: 114084000-00803550
Length: 18.7"
Special Features: Advanced
Wattage: 7.5W
Lumens: 945
Thru-wire: No
Spec Sheet:  114084000-00803550.pdf
IES:  114084000-00803550.ies



Part No: 114085000-00803551
Length: 18.7"
Special Features: Advanced
Wattage: 7.5W
Lumens: 945
Thru-wire: Yes
Spec Sheet:  114085000-00803551.pdf
IES:  114085000-00803551.ies



Part No: 114087000-00803553
Length: 24.2"
Special Features: Advanced
Wattage: 10W
Lumens: 1260
Thru-wire: Yes
Spec Sheet:  114087000-00803553.pdf
IES:  114087000-00803553.ies



Part No: 114086000-00803552
Length: 24.2"
Special Features: Advanced
Wattage: 10W
Lumens: 1260
Thru-wire: No
Spec Sheet:  114086000-00803552.pdf
IES:  114086000-00803552.ies



Part No: 114091000-00803583
Length: 35.2"
Special Features: Advanced
Wattage: 15W
Lumens: 1890
Thru-wire: Yes
Spec Sheet:  114091000-00803583.pdf
IES:  114091000-00803583.ies



Part No: 114094000-00803612
Length: 46.3"
Special Features: Advanced
Wattage: 20W
Lumens: 2520
Thru-wire: No
Spec Sheet:  114094000-00803612.pdf
IES:  114094000-00803612_1.ies



Part No: 114096000-00803618
Length: 51.8"
Special Features: Advanced
Wattage: 22.5W
Lumens: 2835
Thru-wire: No
Spec Sheet:  114096000-00803618.pdf
IES:  114096000-00803618.ies



Part No: 114097000-00803632
Length: 51.8"
Special Features: Advanced
Wattage: 22.5W
Lumens: 2835
Thru-wire: Yes
Spec Sheet:  114097000-00803632.pdf
IES:  114097000-00803632.ies



Part No: 114099000-00803705
Length: 57.3"
Special Features: Advanced
Wattage: 25W
Lumens: 3150
Thru-wire: Yes
Spec Sheet:  114099000-00803705.pdf
IES:  114099000-00803705.ies



Part No: 114088000-00803555
Length: 29.7"
Special Features: Advanced
Wattage: 12.5W
Lumens: 1575
Thru-wire: No
Spec Sheet:  114088000-00803555.pdf
IES:  114088000-00803555.ies



Part No: 114089000-00803561
Length: 29.7"
Special Features: Advanced
Wattage: 12.5W
Lumens: 1575
Thru-wire: Yes
Spec Sheet:  114089000-00803561.pdf
IES:  114089000-00803561.ies



Part No: 114090000-00803570
Length: 35.2"
Special Features: Advanced
Wattage: 15W
Lumens: 1890
Thru-wire: No
Spec Sheet:  114090000-00803570.pdf
IES:  114090000-00803570.ies



Part No: 114092000-00803585
Length: 40.8"
Special Features: Advanced
Wattage: 17.5W
Lumens: 2205
Thru-wire: No
Spec Sheet:  114092000-00803585.PDF
IES:  114092000-00803585.IES



Part No: 114093000-00803611
Length: 40.8"
Special Features: Advanced
Wattage: 17.5W
Lumens: 2205
Thru-wire: Yes
Spec Sheet:  114093000-00803611.pdf
IES:  114093000-00803611.ies



Part No: 114095000-00803615
Length: 46.3"
Special Features: Advanced
Wattage: 20W
Lumens: 2520
Thru-wire: Yes
Spec Sheet:  114095000-00803615.pdf
IES:  114095000-00803615.ies



Part No: 114098000-00803703
Length: 57.3"
Special Features: Advanced
Wattage: 25W
Lumens: 3150
Thru-wire: No
Spec Sheet:  114098000-00803703.pdf
IES:  114098000-00803703.ies



Part No: 114053000-00802117
Length: 13.2"
Special Features: RGB
Wattage: 6W
Lumens: 140
Thru-wire: No
Spec Sheet:  114053000-00802117.pdf
IES:



Part No: 114054000-00802118
Length: 18.7"
Special Features: RGB
Wattage: 9W
Lumens: 210
Thru-wire: No
Spec Sheet:  114054000-00802118.pdf
IES:



Part No: 114080000-00803510
Length: 7.7"
Special Features: Advanced
Wattage: 2.5W
Lumens: 315
Thru-wire: No
Spec Sheet:  114080000-00803510.pdf
IES:  114080000-00803510.ies



Part No: 114081000-00803511
Length: 7.7"
Special Features: Advanced
Wattage: 2.5W
Lumens: 315
Thru-wire: Yes
Spec Sheet:  114081000-00803511.pdf
IES:  114081000-00803511.ies



Part No: 114082000-00803512
Length: 13.2"
Special Features: Advanced
Wattage: 5W
Lumens: 630
Thru-wire: No
Spec Sheet:  114082000-00803512.pdf
IES:  114082000-00803512.ies



Part NoLengthSpecial FeaturesWattageLumensThru-wireSpec SheetIES
114041000-0080136029.7" 15W1575No
114042000-0080136635.2" 18W1890Yes
114043000-0080137435.2" 18W1890No
114045000-0080139240.7" 21W2205No
114046000-0080139346.3" 24W2520Yes
114047000-0080139446.3" 24W2520No
114048000-0080139651.7" 27W2835Yes
114049000-0080139751.7" 27W2835No
114050000-0080140857.2" 30W3150Yes
114032000-00801320 7.7"  3W315Yes
114034000-0080134413.2"  6W630 Yes
114044000-0080138040.7" 21W2205Yes
114033000-00801340 7.7"  3W315No
114051000-0080140957.2" 30W3150No
114052000-00802116 7.7"RGB 3W70 No
114035000-0080134613.2"  6W630 No
114036000-0080134818.7"  9W945Yes
114040000-0080135629.7" 15W1575Yes
114037000-0080134918.7"  9W945No
114038000-0080135024.2" 12W1260Yes
114039000-0080135524.2" 12W1260No
114055000-0080211924.2"RGB12W280No
114083000-0080351313.2"Advanced 5W630 Yes
114084000-0080355018.7"Advanced 7.5W945No
114085000-0080355118.7"Advanced 7.5W945Yes
114087000-0080355324.2"Advanced10W1260Yes
114086000-0080355224.2"Advanced10W1260No
114091000-0080358335.2"Advanced15W1890Yes
114094000-0080361246.3"Advanced20W2520No
114096000-0080361851.8"Advanced22.5W2835No
114097000-0080363251.8"Advanced22.5W2835Yes
114099000-0080370557.3"Advanced25W3150Yes
114088000-0080355529.7"Advanced12.5W1575No
114089000-0080356129.7"Advanced12.5W1575Yes
114090000-0080357035.2"Advanced15W1890No
114092000-0080358540.8"Advanced17.5W2205No
114093000-0080361140.8"Advanced17.5W2205Yes
114095000-0080361546.3"Advanced20W2520Yes
114098000-0080370357.3"Advanced25W3150No
114053000-0080211713.2"RGB 6W140 No
114054000-0080211818.7"RGB 9W210No
114080000-00803510 7.7"Advanced 2.5W315No
114081000-00803511 7.7"Advanced 2.5W315Yes
114082000-0080351213.2"Advanced 5W630 No



LINURA.edge - machine automation linear lights

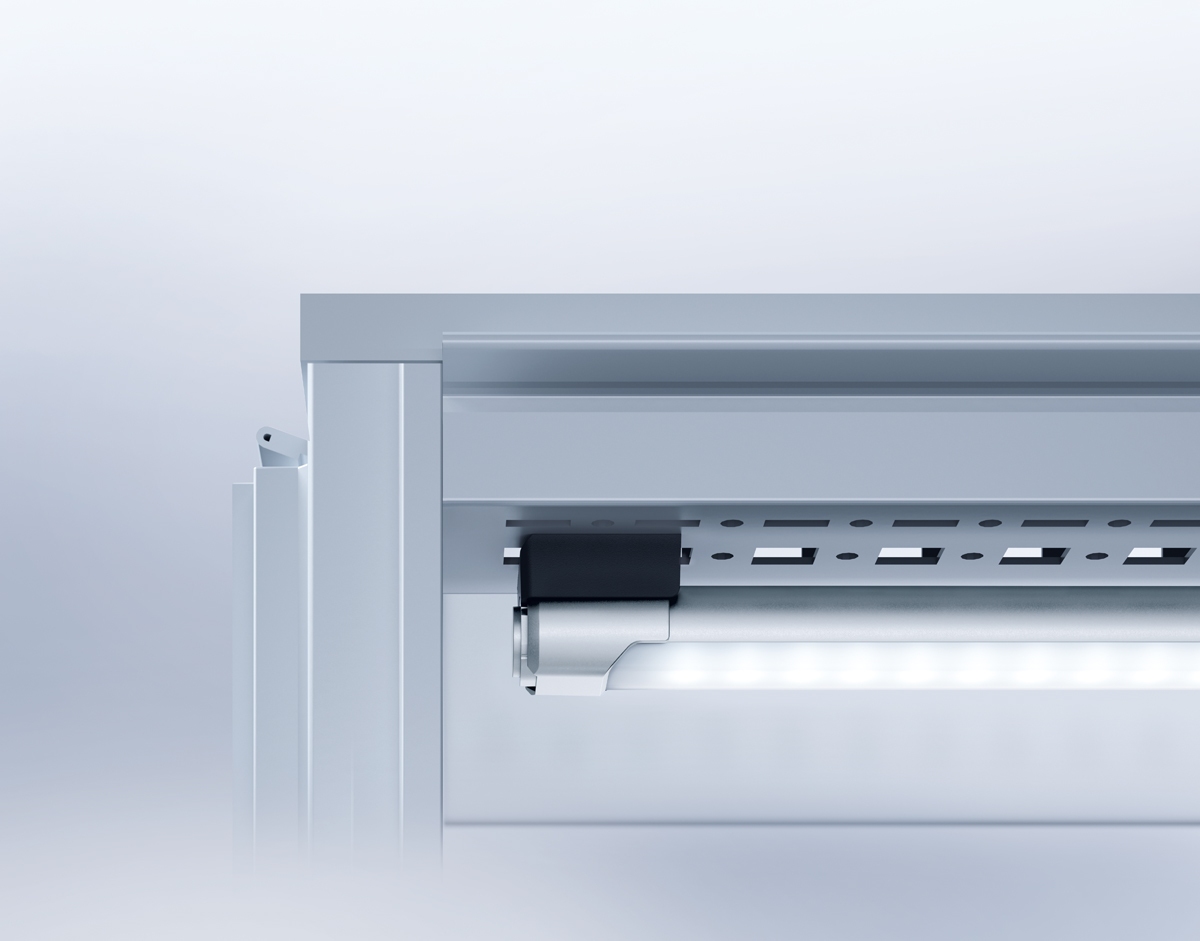

LINURA.edge - enclosure lighting
LINURA.edge - enclosure lighting

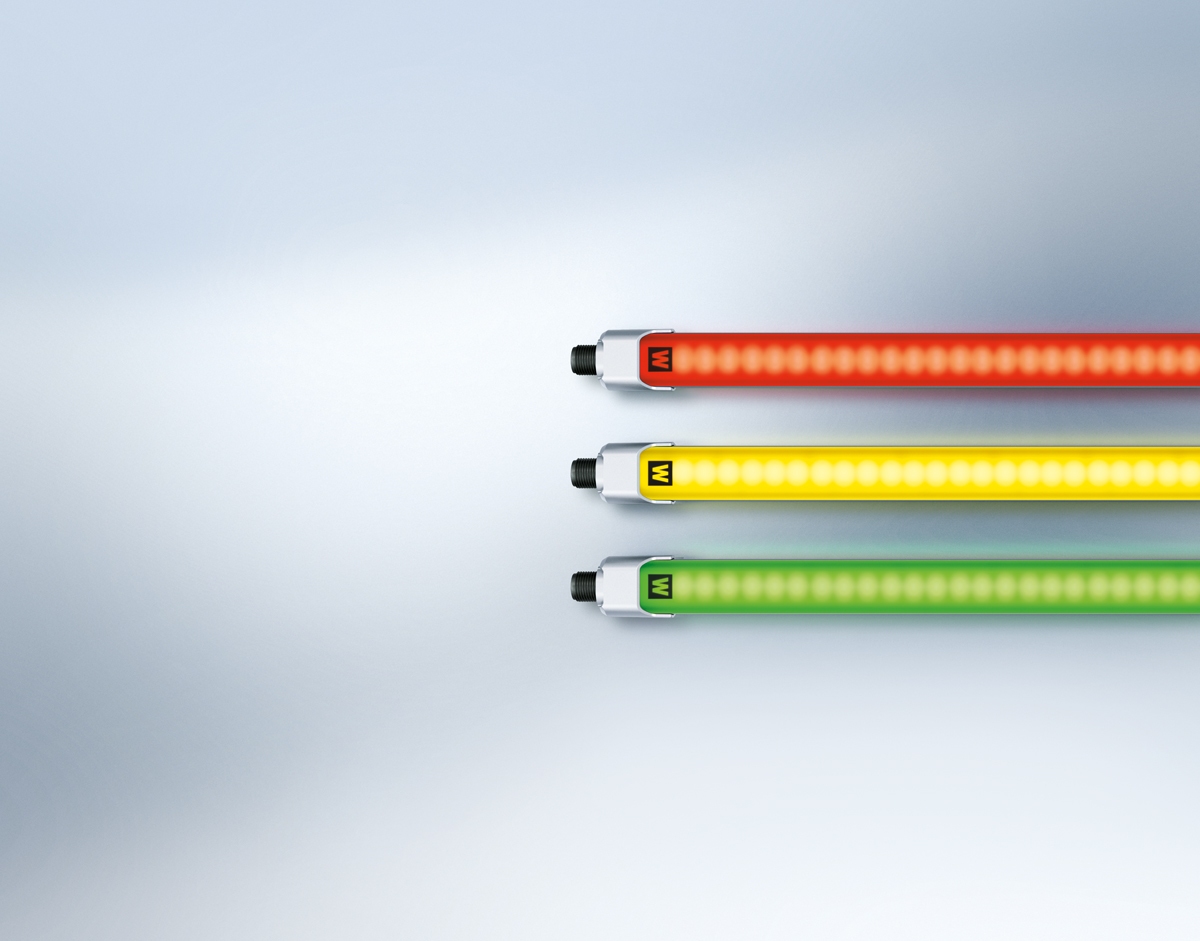

LINURA.edge RGB appl
LINURA.edge - machine automation linear lights
LINURA.edge - enclosure lighting
LINURA.edge - machine automation linear lights
Description Part Number Image
Capacitive contact sensor with M12 plug connectors 114129000-00805353
Laser-based time-of-flight sensor with M12 plug connectors 114128000-00805352
CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, straight
 US0009001
CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, angled
 US0009011
CONNECTOR/CABLE FOR RGB MODELS: 16' cord with 5-pin, A-coded for 24V, M12 connector, straight   US0009101
CONNECTOR/CABLE FOR RGB MODELS:: 16' cord with 5-pin, A-coded for 24V, M12 connector, angled US0009111
CONNECTOR: M12 Connector, A-coded, 4 pin, male (for 24V) 336884M10
CONNECTOR: M12 Connector, A-coded, 5 pin, male (for thru-wire)  336615M19
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz
 209585029
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz
 209585030
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz
 209585032

Linura.edge
