TEVISIO - Energy efficient, ergonomic office and desk light



TEVISIO lives up to the high standards of the Waldmann product line. Premium LEDs illuminate a 6.3" diameter, wide-angle, distortion-free lens. The touch-panel on the head enables customization of the light output, easily dimmable from 100% to 10%. The innovative balanced-arm technology and strong anodized aluminum construction allow for easy adjustment and dependable precise positioning while six independent swivel joints turn the head up to 90 degrees in every direction. A color rendering index (CRI) of 90 makes it possible to differentiate between subtle variances.. Energy-efficient LEDs provide 50,000 hours of LED life while using just 13 watts of power. Available with a 31” or 39” arm reach.

  • Premium LEDs
  • 6.3" diameter wide-angle, scratch-resistant glass magnifying lens
  • Spring-balanced arm for easy adjustments
  • 3.5 diopter or 3.5d+8d magnification
  • NEW! Now with lens exchange technology
  • Available in 31" or 39" arm length versions
  • 40% energy savings compared to fluorescents
  • 50,000 hours maintenance-free LED life
  • 100% to 10% dimming by touch
  • ETL/cETL approved

Narrow your search [ Reset Selections ]

Choose the right part number by selecting the correct options below. Reset your selection to start over.

Arm Length

Protection
Magnification

LED Switching


Part No: 113713000-00805254
Model: TVD 750/950
Arm Length: 31" Reach
Protection: Standard
Magnification: 3.5d
LED Switching: Segment Switching
Dimming Options: Dimmable
IP Rating: IP20
Spec Sheet:  113713000-00805254.pdf
IES:



Part No: 113713000-00805255
Model: TVD 750/950
Arm Length: 31" Reach
Protection: Standard
Magnification: 3.5d+8d
LED Switching: Segment Switching
Dimming Options: Dimmable
IP Rating: IP20
Spec Sheet:  113713000-00805255.pdf
IES:



Part No: 113714000-00805256
Model: TVD 750/950
Arm Length: 39" Reach
Protection: Standard
Magnification: 3.5d
LED Switching: Segment Switching
Dimming Options: Dimmable
IP Rating: IP20
Spec Sheet:  113714000-00805256.pdf
IES:



Part No: 113714000-00805257
Model: TVD 750/950
Arm Length: 39" Reach
Protection: Standard
Magnification: 3.5d+8d
LED Switching: Segment Switching
Dimming Options: Dimmable
IP Rating: IP20
Spec Sheet:  113714000-00805257.pdf
IES:



Part No: 112918000-00587322
Model: RLLQ 48 R
Arm Length: 39" Reach
Protection: Standard
Magnification: 3.5d
LED Switching: None
Dimming Options: Dimmable
IP Rating: IP20
Spec Sheet:  112918000-00587322US.pdf
IES:



Part NoModelArm LengthProtectionMagnificationLED SwitchingDimming OptionsIP RatingSpec SheetIES
113713000-00805254TVD 750/95031" ReachStandard 3.5d Segment SwitchingDimmableIP20
113713000-00805255TVD 750/95031" ReachStandard 3.5d+8dSegment SwitchingDimmableIP20
113714000-00805256TVD 750/95039" ReachStandard 3.5dSegment SwitchingDimmableIP20
113714000-00805257TVD 750/95039" ReachStandard 3.5d+8dSegment SwitchingDimmableIP20
112918000-00587322RLLQ 48 R39" ReachStandard 3.5dNoneDimmableIP20

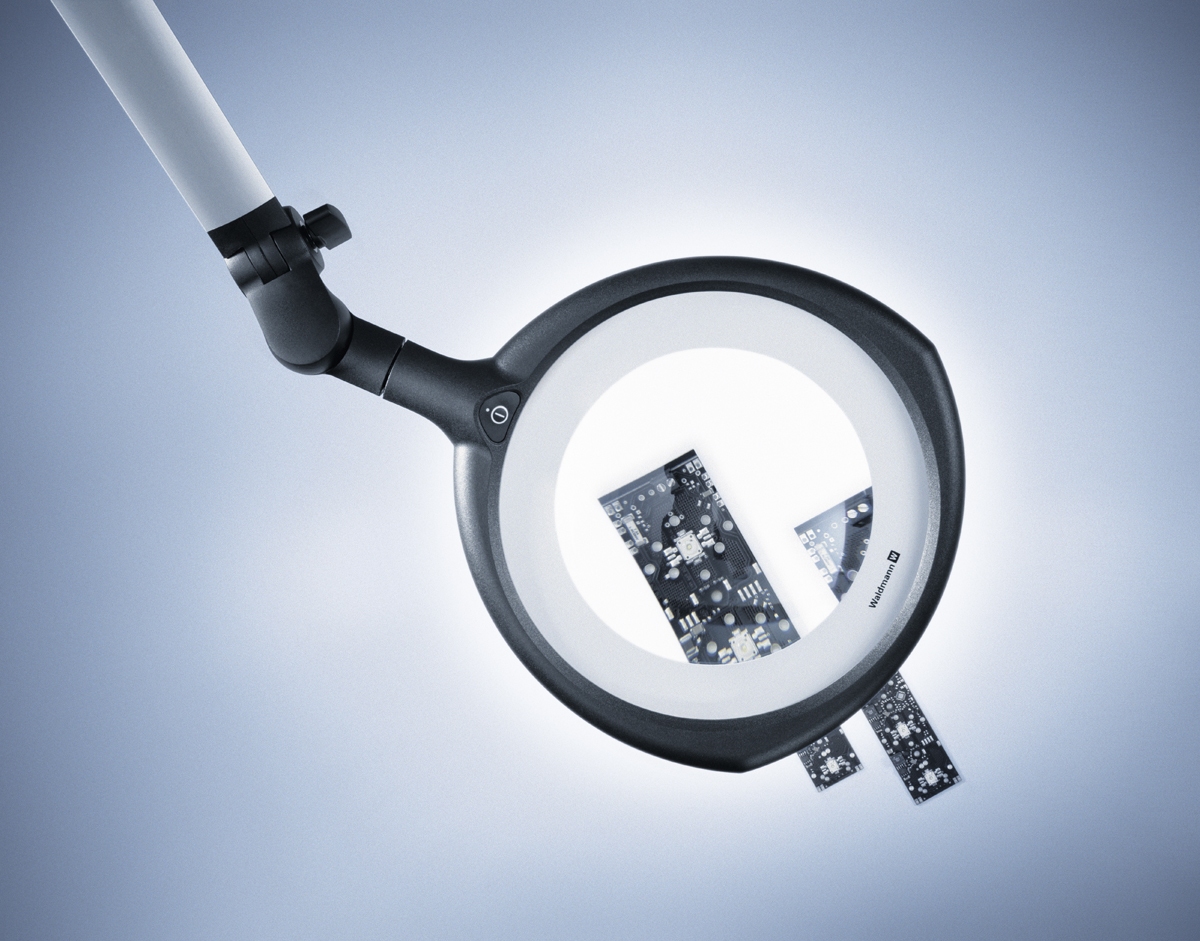

Tevisio Gallery 1

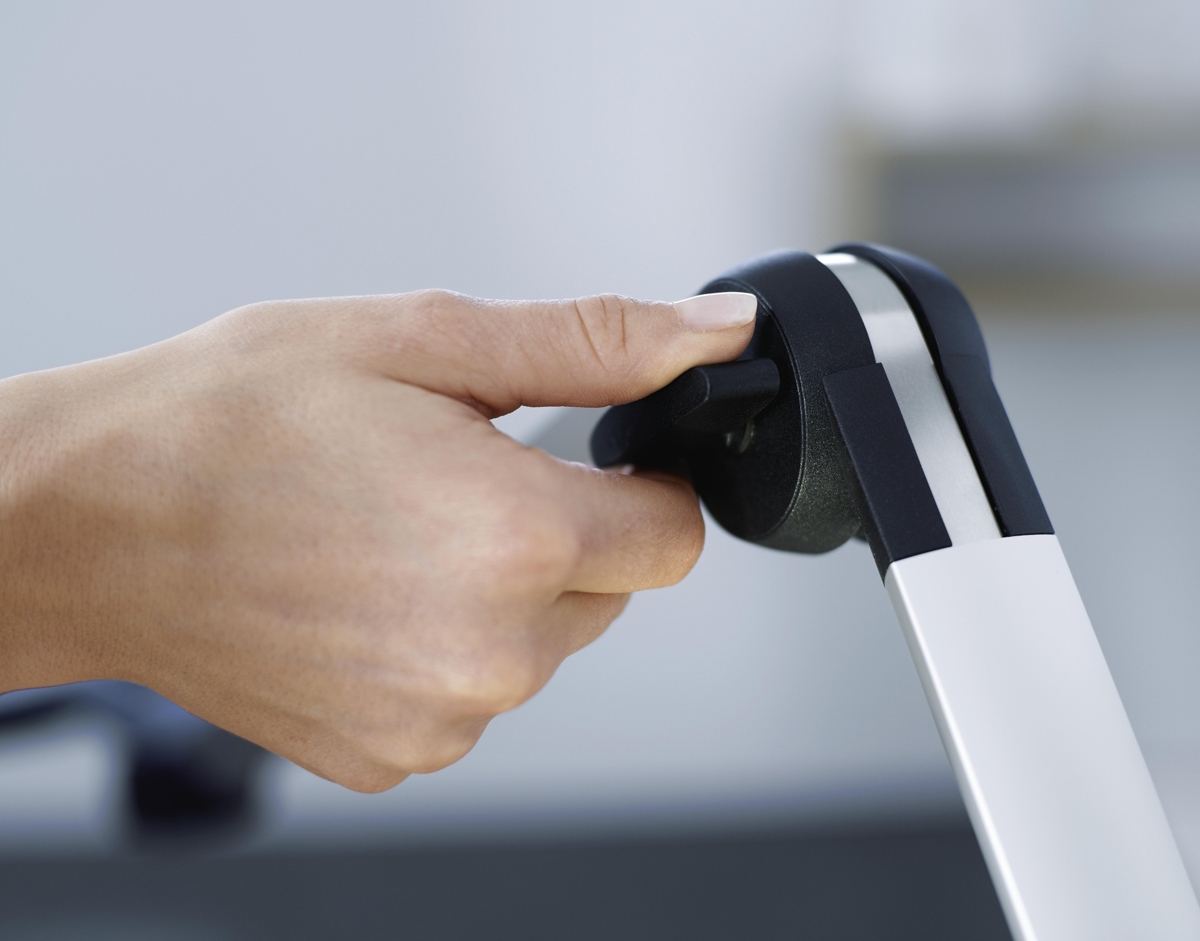

Tevisio Gallery 4

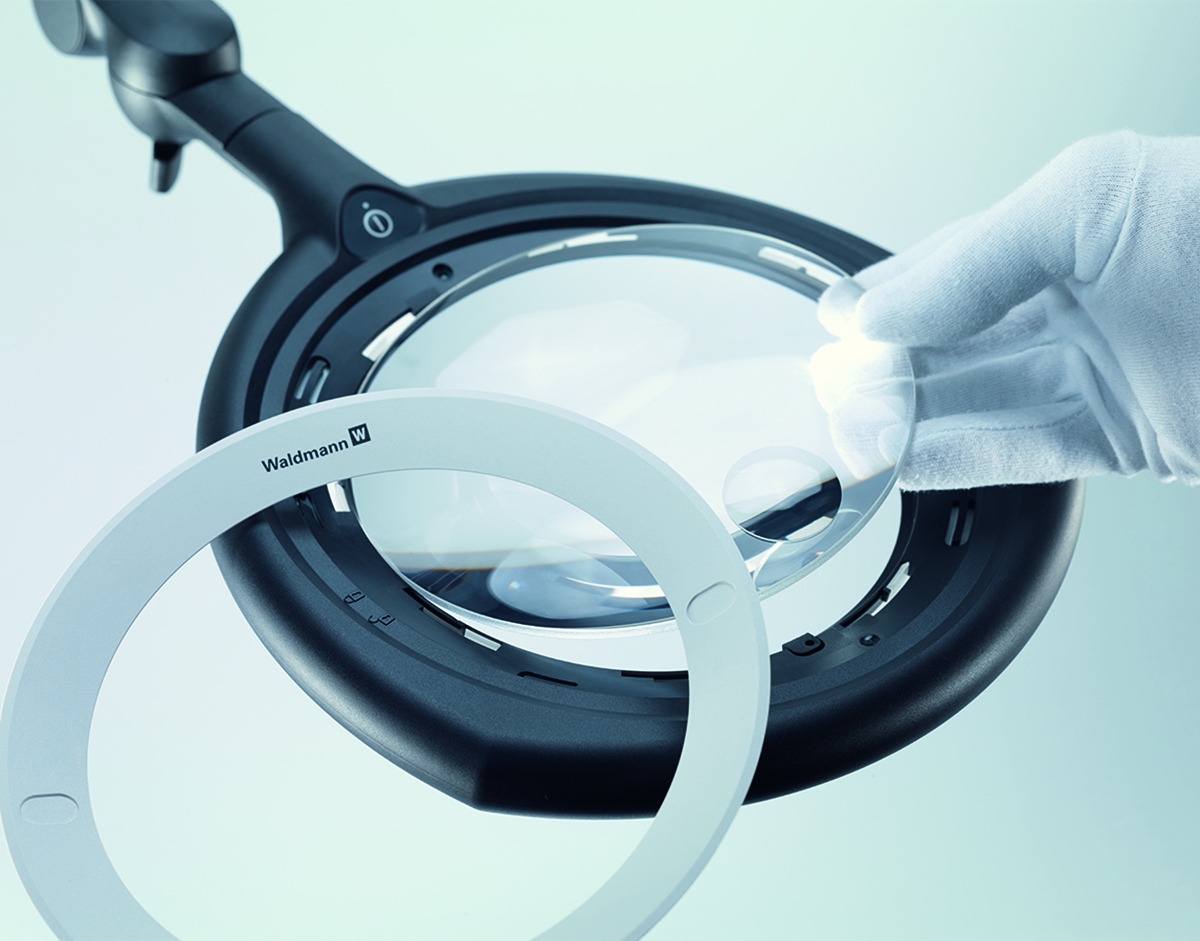

Tevisio Replacement Lens

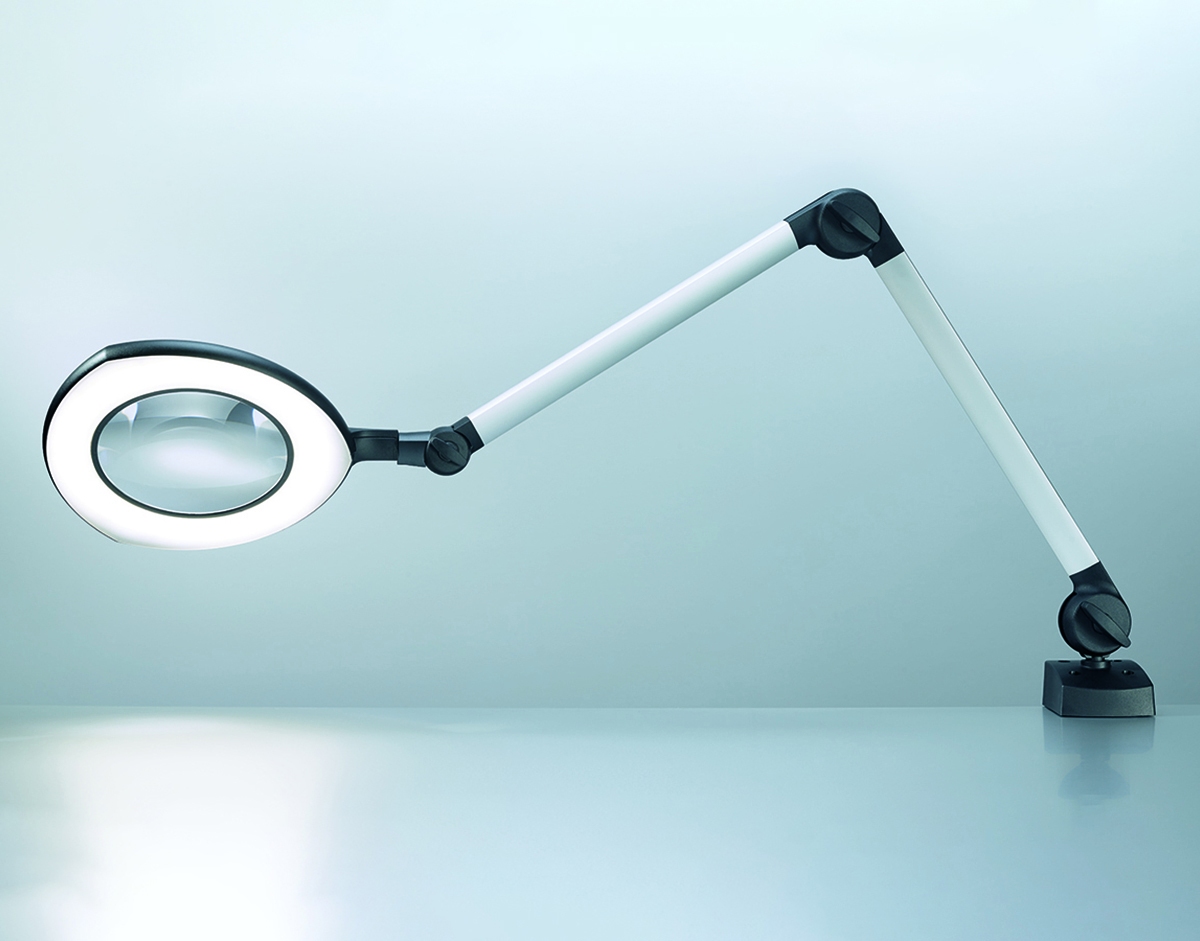

Tevisio Totale Master

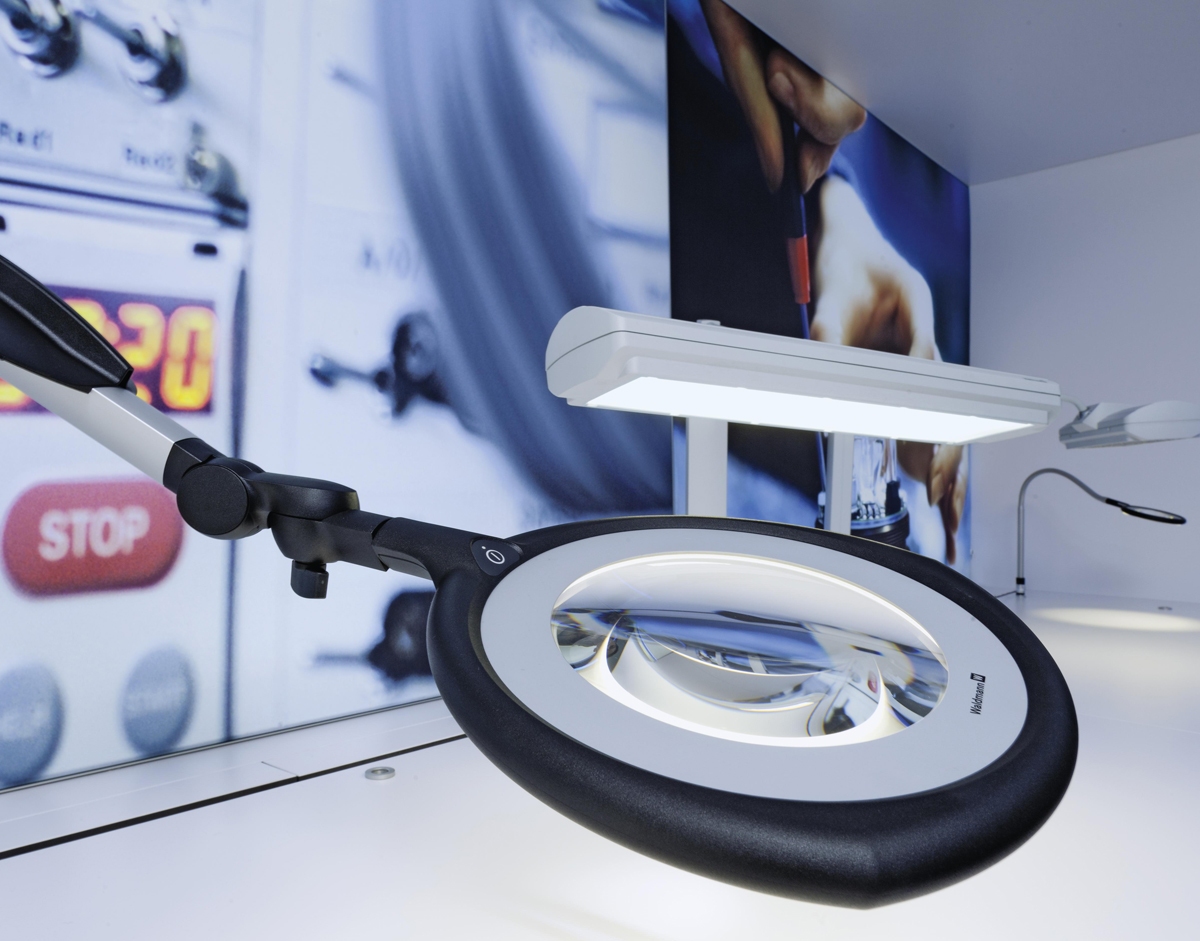

Tevisio Gallery 8
Tevisio Gallery 1B

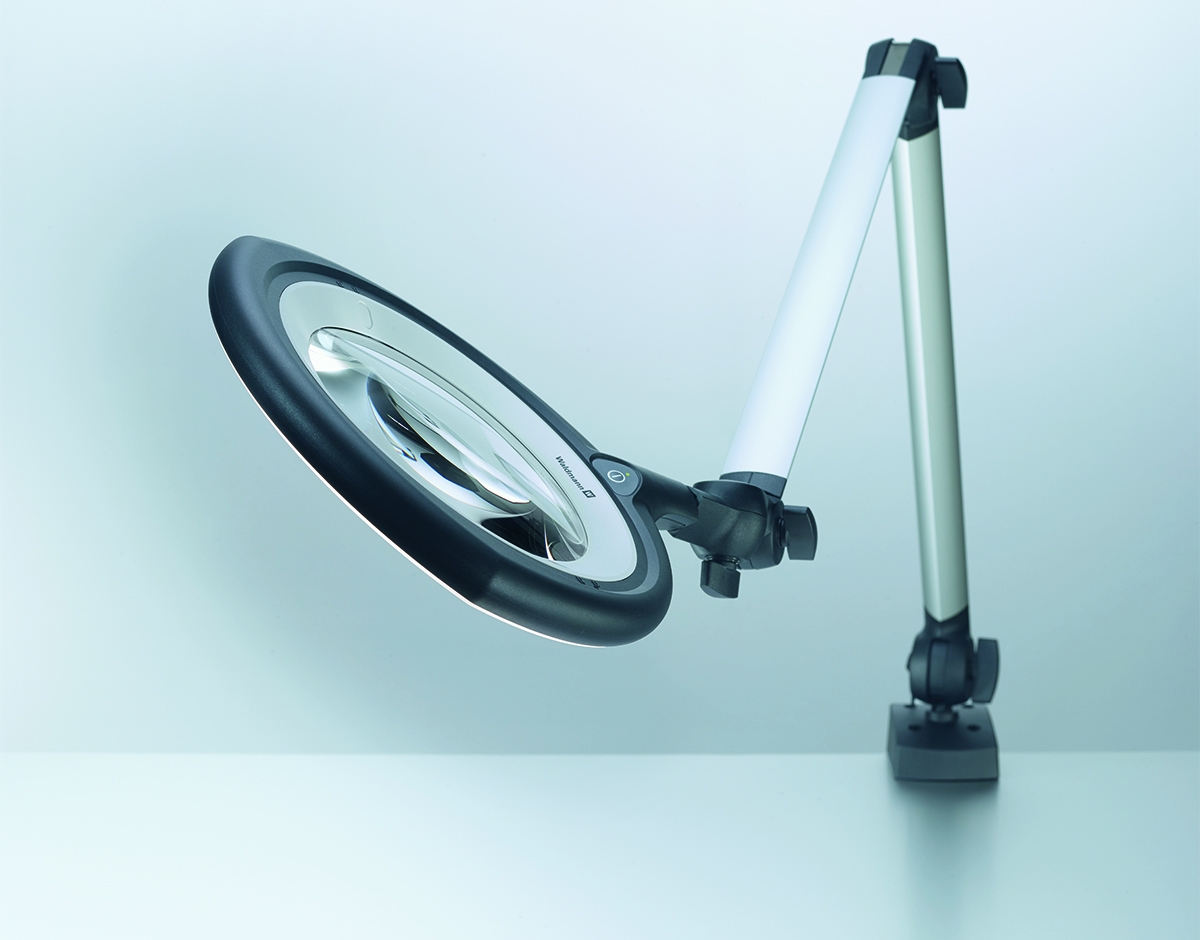

Tevisio Dynamic Master

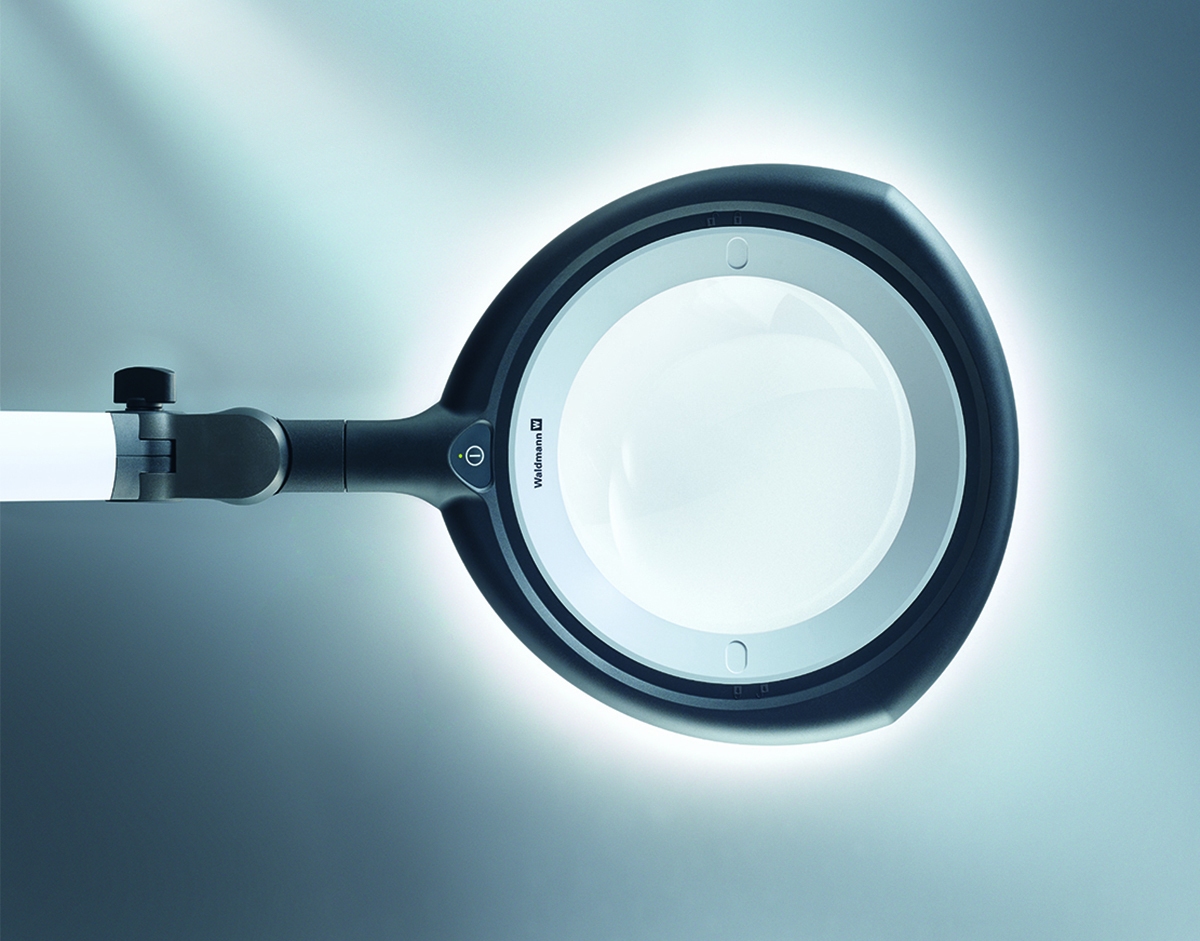

Tevisio Title Master
Description Part Number Image
ACCESSORY: 6 Diopters Lens, Plastic (2.5x Magnification)
190218019-00802994
MOUNTING OPTION: 1/2" Pin Mount Adapter (1.77" length)
US0209022
MOUNTING OPTION: 1/2" Pin Mount Adapter (3.75" length) US0209012
MOUNTING OPTION: Wall Mount, Black 226108019-00610754
MOUNTING OPTION: Table Clamp (included)
19102506940

TEVISIO Video
