MACHINE LIGHT | ABL LED

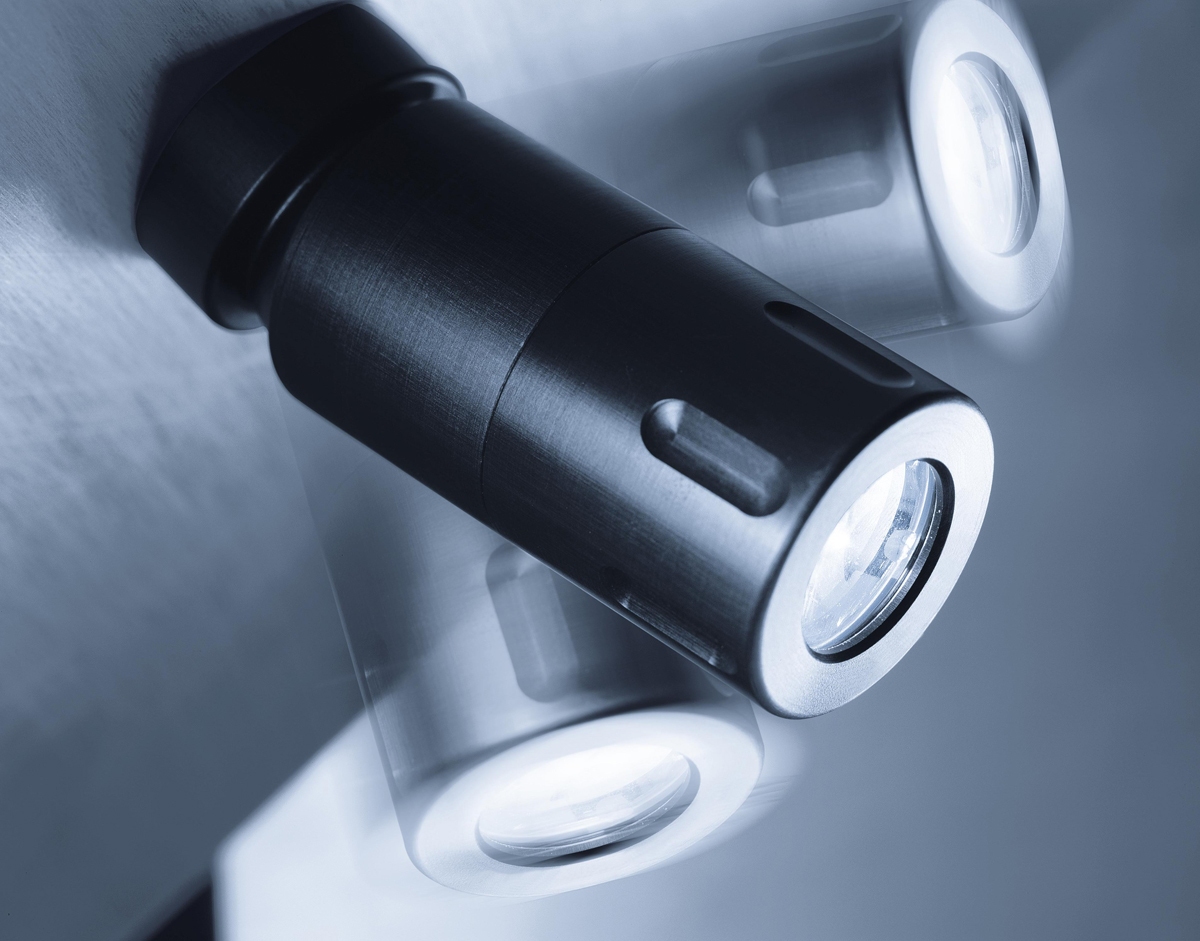

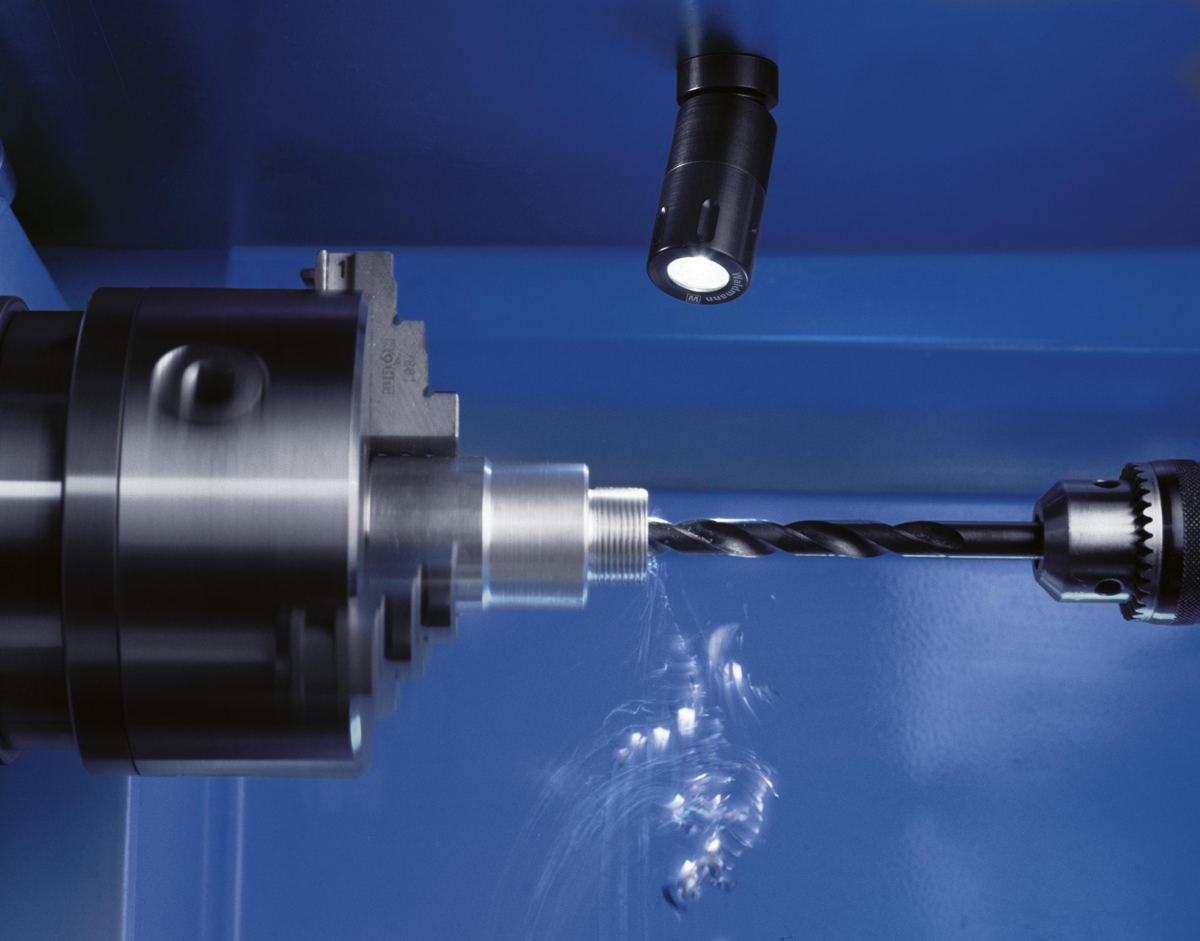

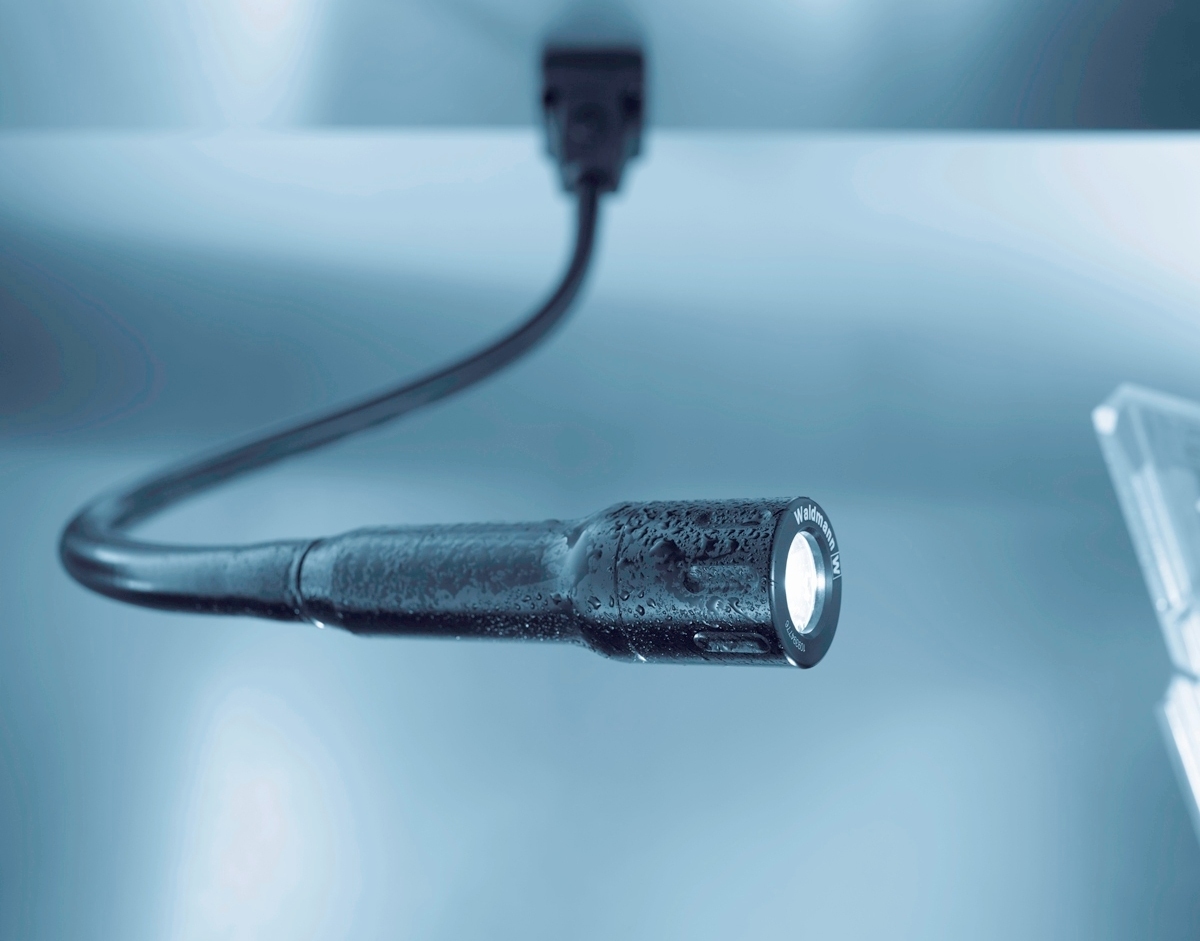

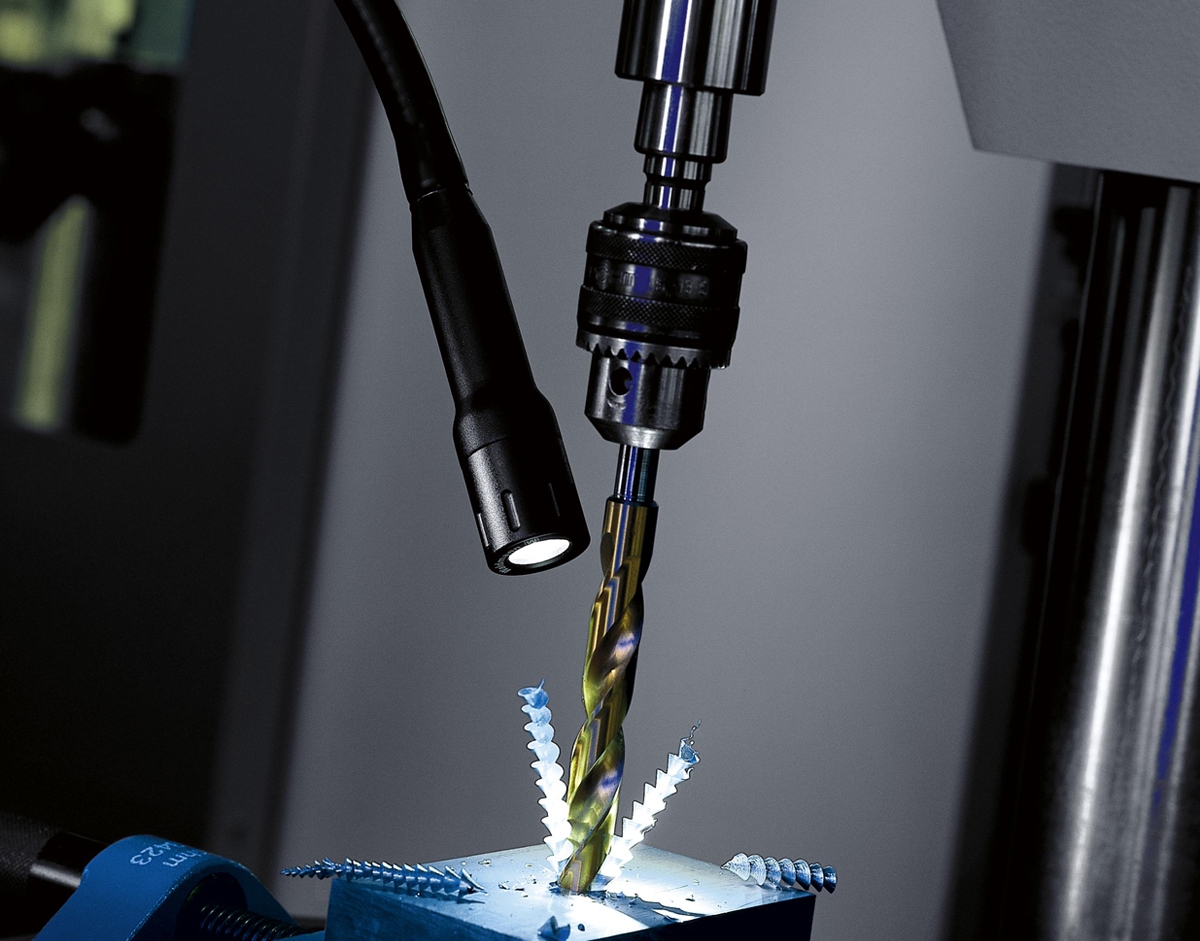

The ABL Single LED is designed for tight spot lighting in small or confined areas. A single high performance, high output LED provides pinpoint accuracy and flexible positioning. Available with gooseneck arm or pivoting head, the ABLL single LED is perfect for illuminating control panels, drill applications, bench and workstation inspection, vision system applications, CNC machine installations.

  • Designed for tight spot lighting in small or confined areas
  • Minimum design diameter 3.7” x 1.1”
  • Precision optics available in 6° or 25° beam angle
  • 50,000 hour maintenance-free operation
  • Waterproof IP67 rating
  • High-resistance coating against heat, wear and corrosion
  • No stroboscopic effect
  • No heat generated in the direction of the light beam

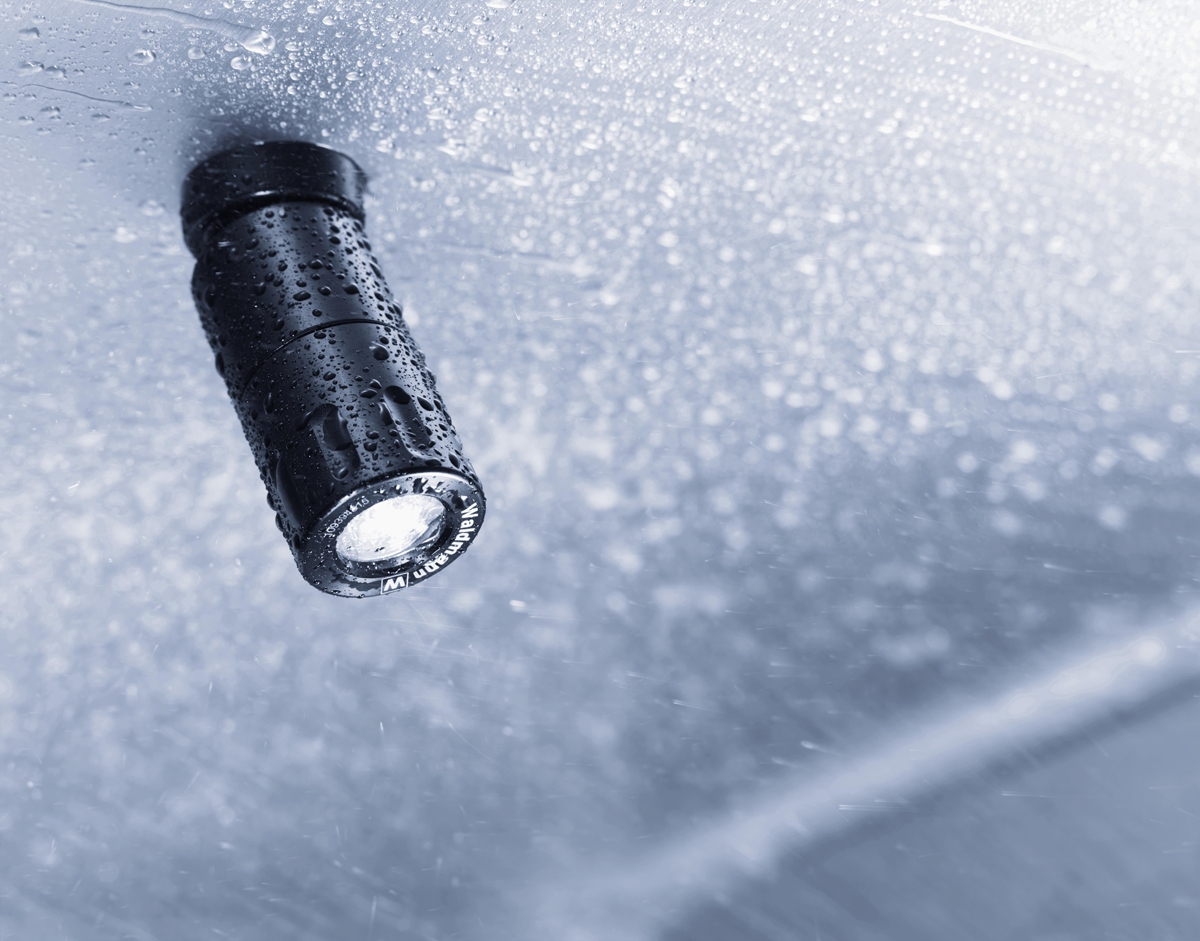

IP67-rated

IP67 stands for “Ingress Protection 67.” It is a standard rating that indicates the level of protection an electronic device or enclosure offers against the intrusion of solid particles (like dust) and liquids (such as water). The IP rating is followed by two numbers:

First Digit (6):

This digit represents the level of protection against solid particles. The “6” indicates that the device is dust-tight, meaning it offers complete protection against the entry of dust or other solid particles.

Second Digit (7):

This digit represents the level of protection against liquids. The “7” indicates that the device is capable of withstanding immersion in water up to 1 meter (about 3.3 feet) deep for at least 30 minutes without any harmful effects.

IP67-rated machine light is completely dust-tight and can be submerged in water for a limited time without being damaged. This rating is often used for devices that need to operate in challenging environments or conditions where exposure to dust and water is a concern.
