MACHINE LIGHT | SPOT LED

LED SPOT light, LED spotlight

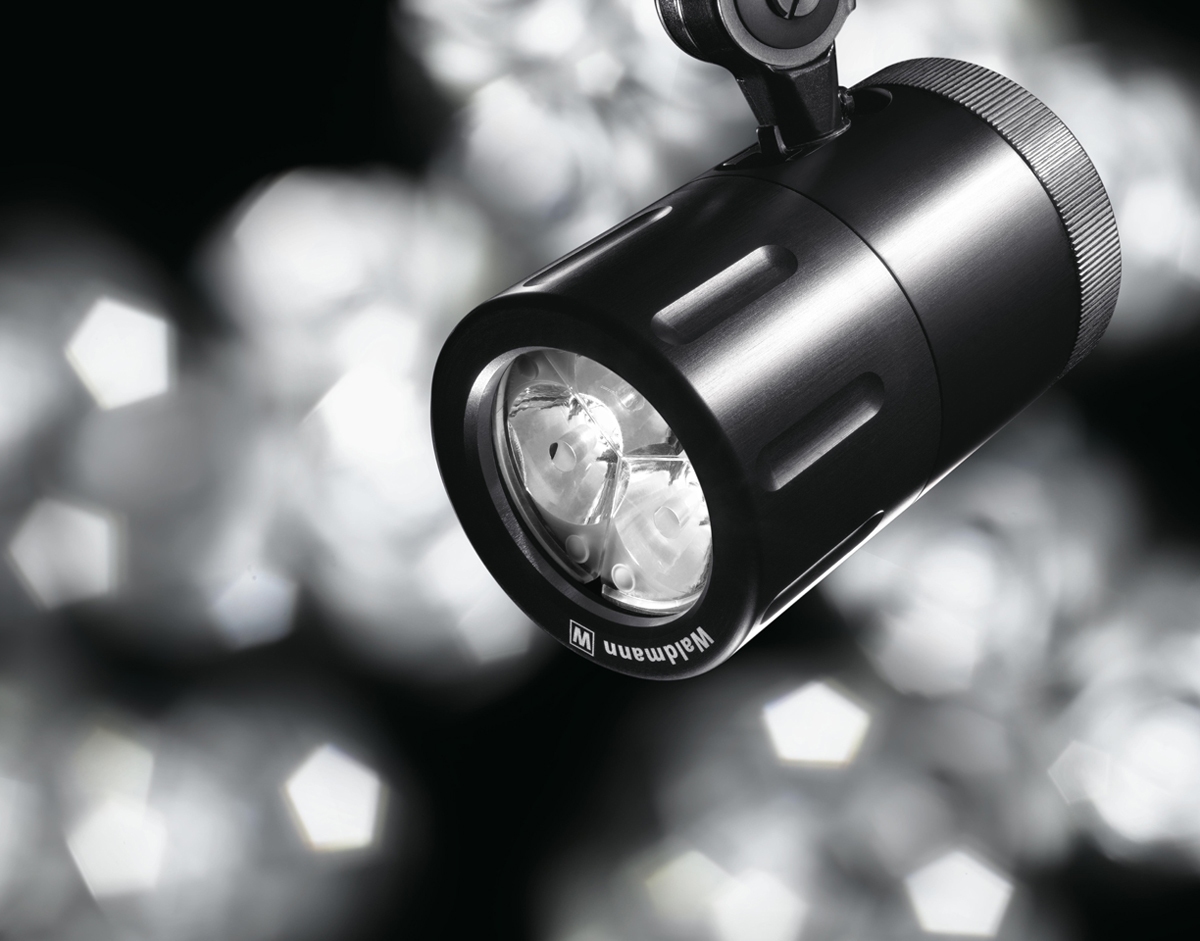

The SPOT LED 003 can be used wherever a spot or area light is needed.  Three high-powered LED modules work in tandem for a consistently high quality of illumination. This tough light is impervious to shock and vibration and a service life up to 50,000 hours maintenance-free operation means keeping machines running without service calls. The high color temperature (5700K) promotes concentration and precision – positive attributes for productivity and safety.
  • Triple high-power LED modules
  • 50,000 hour maintenance-free operation
  • Precision optics available in 10° or 40° beam spreads
  • Protection rating up to IP67
  • 5700K color temperature
  • High-resistance coating against heat, wear and corrosion
  • No stroboscopic effect
  • No heat generated in the direction of the light beam
  • ETL/cETL approved

Narrow your search [ Reset Selections ]

Choose the right part number by selecting the correct options below. Reset your selection to start over.

Voltage
Mounting Type

Beam Angle

Switching

Part No: 112461001-00083005
Model: MCAYL 3
Voltage: 24V AC/DC
Mounting Type: Surface Mount
Beam Angle: 10° spot
Switching: w/o switch
Transformer: w/out transformer or switch
IP Rating: IP67
Spec Sheet:  112461001-00083005.pdf



Part No: 112461003-00087871
Model: MCAYL 3
Voltage: 24V AC/DC
Mounting Type: Surface Mount
Beam Angle: 40° flood
Switching: w/o switch
Transformer: w/out transformer or switch
IP Rating: IP67
Spec Sheet:  112461003-00087871.pdf



Part No: 112460001-00082995
Model: MCEYL 3
Voltage: 24V AC/DC
Mounting Type: Flush Mount
Beam Angle: 10° spot
Switching: w/o switch
Transformer: w/out transformer or switch
IP Rating: IP67
Spec Sheet:  112460001-00082995.pdf



Part No: 112460003-00087891
Model: MCEYL 3
Voltage: 24V AC/DC
Mounting Type: Flush Mount
Beam Angle: 40° flood
Switching: w/o switch
Transformer: w/out transformer or switch
IP Rating: IP67
Spec Sheet:  112460003-00087891.pdf



Part NoModelVoltageMounting TypeBeam AngleSwitchingTransformerIP RatingSpec Sheet
112461001-00083005MCAYL 324V AC/DCSurface Mount10° spotw/o switchw/out transformer or switchIP67
112461003-00087871MCAYL 324V AC/DCSurface Mount40° floodw/o switchw/out transformer or switchIP67
112460001-00082995MCEYL 324V AC/DCFlush Mount10° spotw/o switchw/out transformer or switchIP67
112460003-00087891MCEYL 324V AC/DCFlush Mount40° floodw/o switchw/out transformer or switchIP67

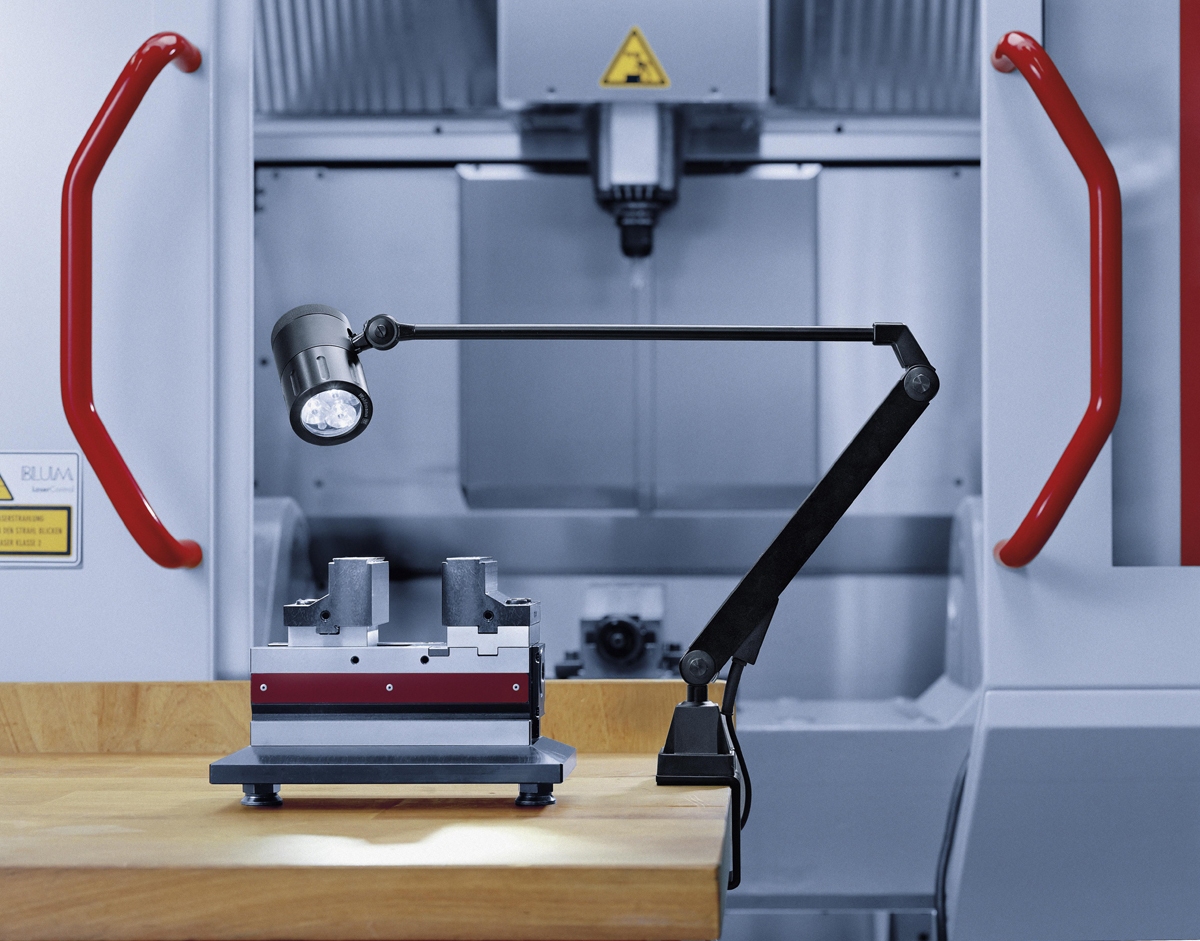

Spot LED - LED industrial light, LED spotlight, LED spot light

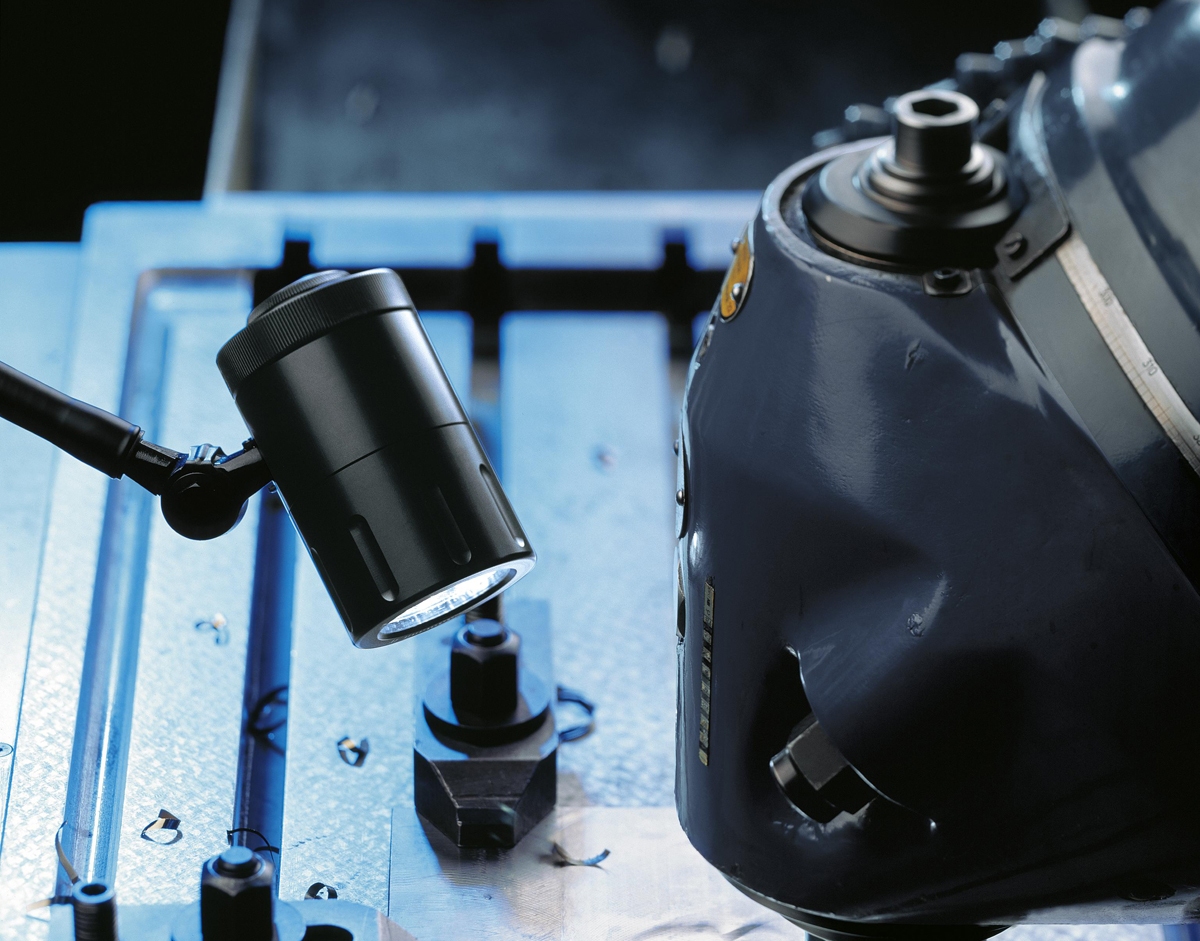

Spot LED - LED spot light, LED spotlight, machine tool light

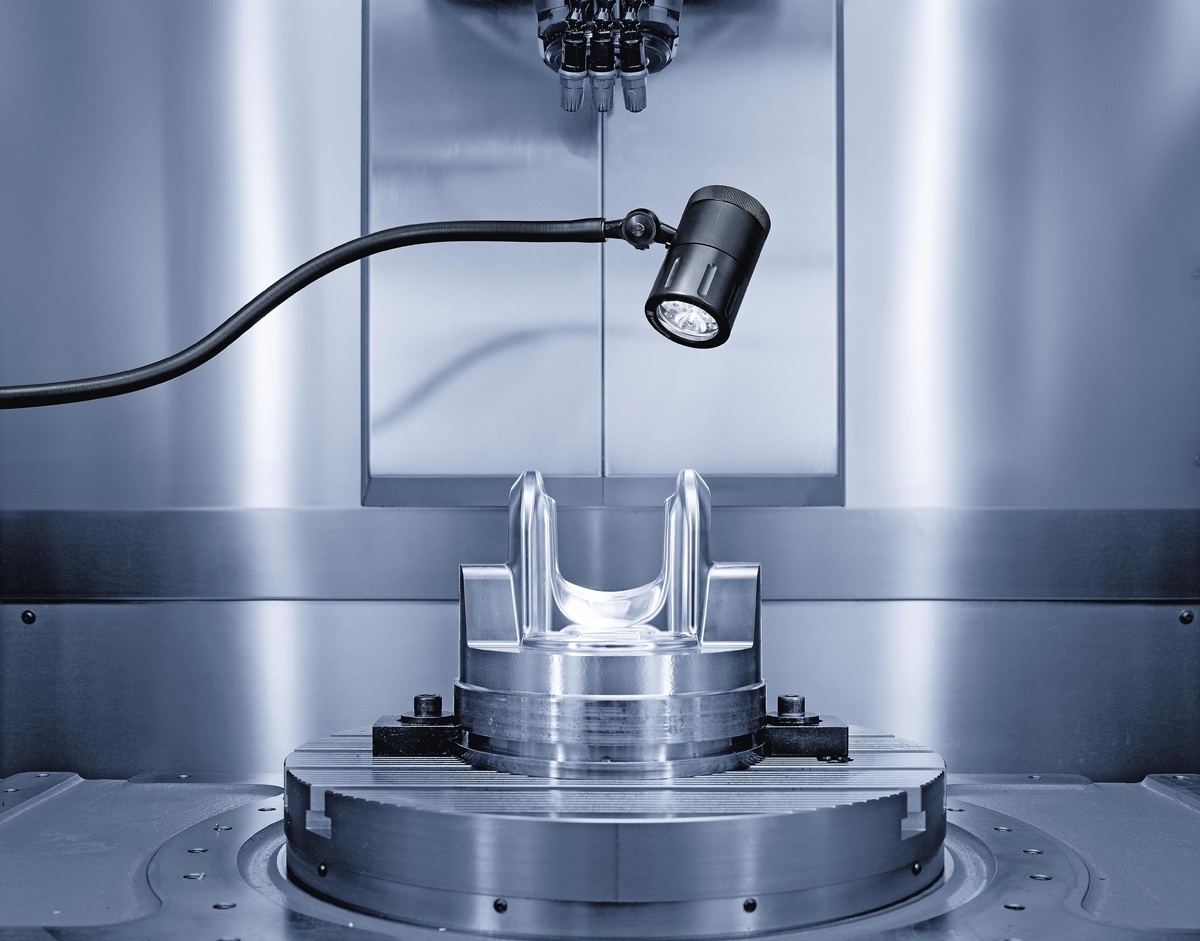

Spot LED - machine tool light, LED spotlight, LED industrial light

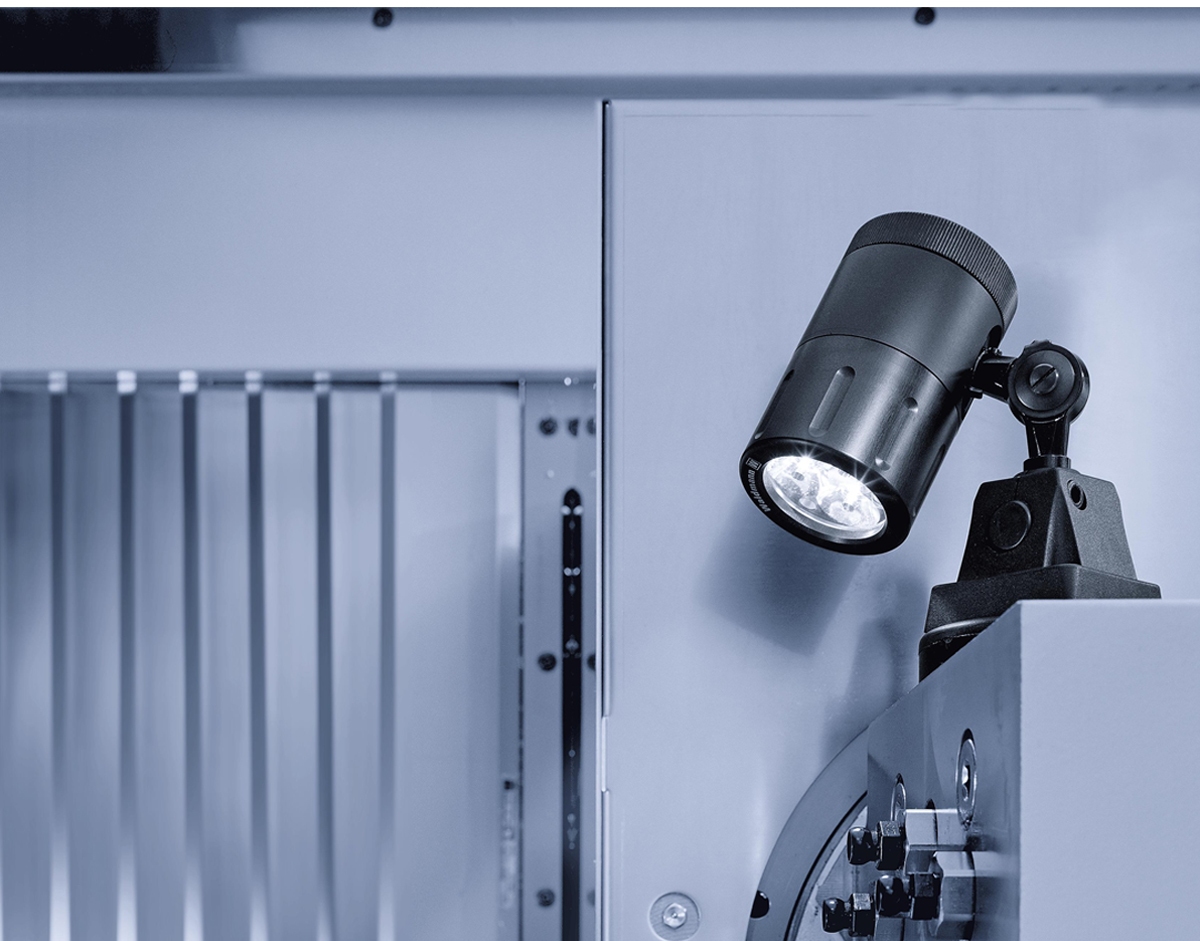

Spot LED - LED spot light, machine tool light, LED industrial light

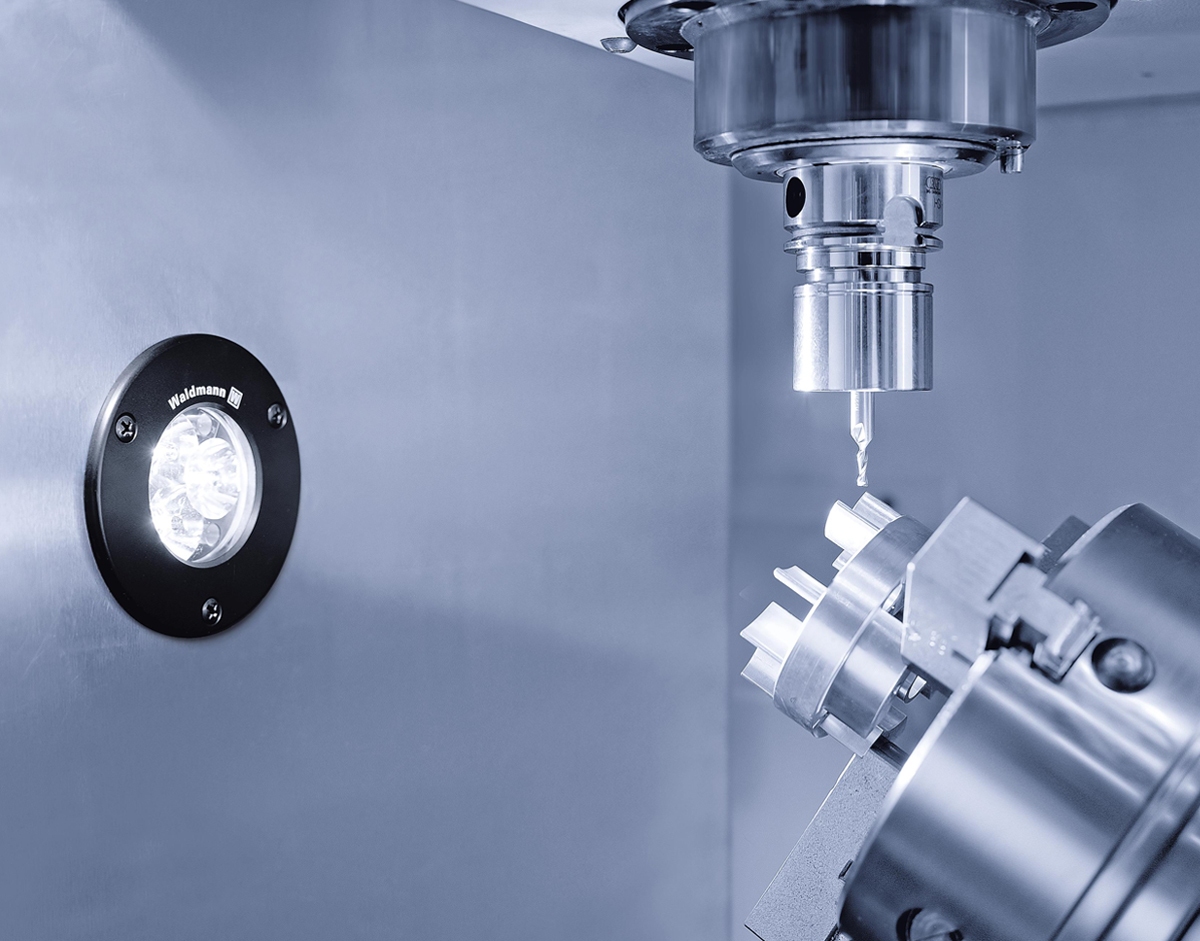

Spot LED - LED industrial light, LED spotlight, machine tool light

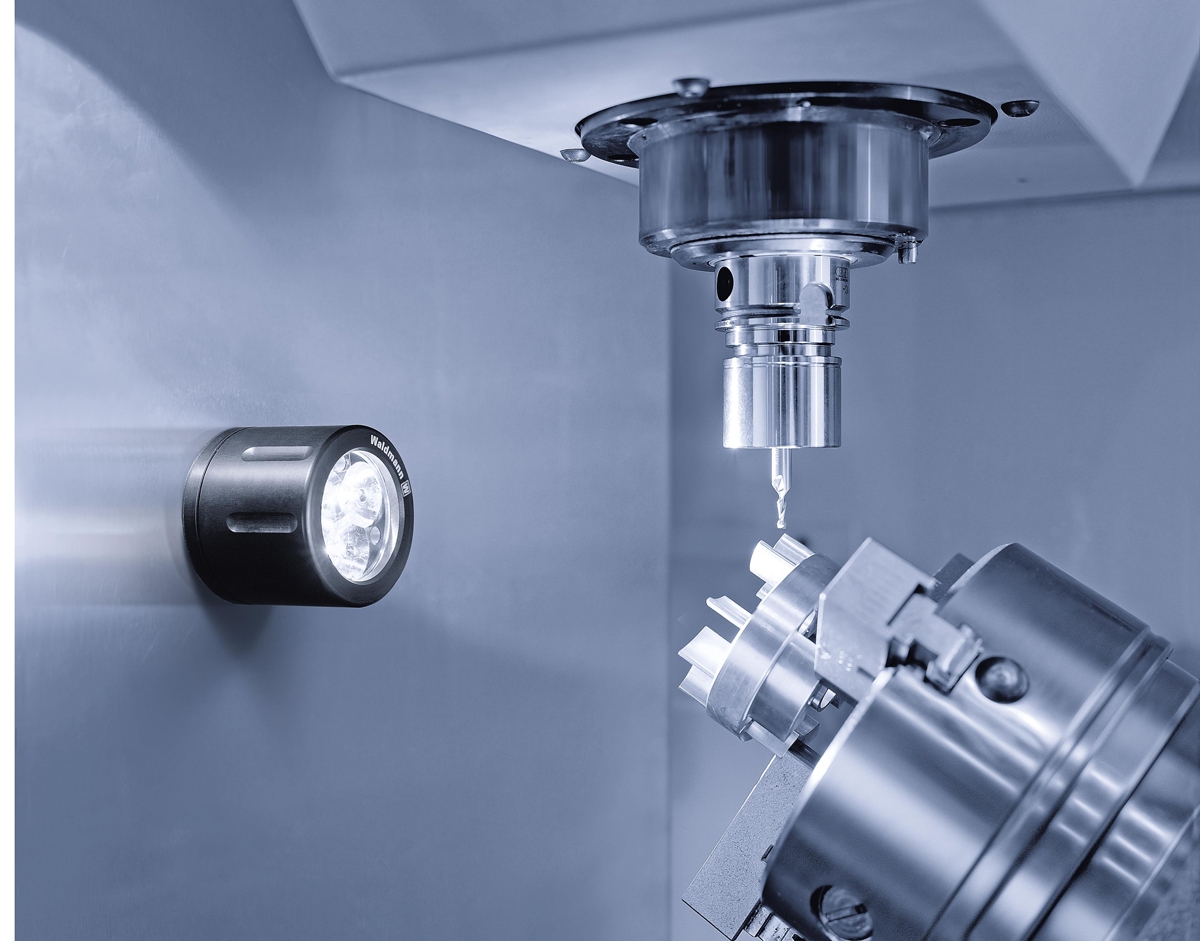

Spot LED - LED industrial light, machine tool light, LED spot light
Spot LED - LED spotlight, machine tool light, LED industrial light
Description Part Number Image
OPERATING DEVICE: Max Wattage = 20W to run at 100-277V, 50/60Hz
209585029
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz
209585030
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz
209585032
MOUNTING OPTION: Clamp, 0-2.75" span
190007019-00014904
MOUNTING OPTION: Clamp, 2.5"-5.4" span
190033019-00014950
MOUNTING OPTION: Wall Bracket for Universal Base
300213018-00025178
MOUNTING OPTION: Magnetic Base
190057019-00015056
