MACHINE LIGHT | ROCIA.focus

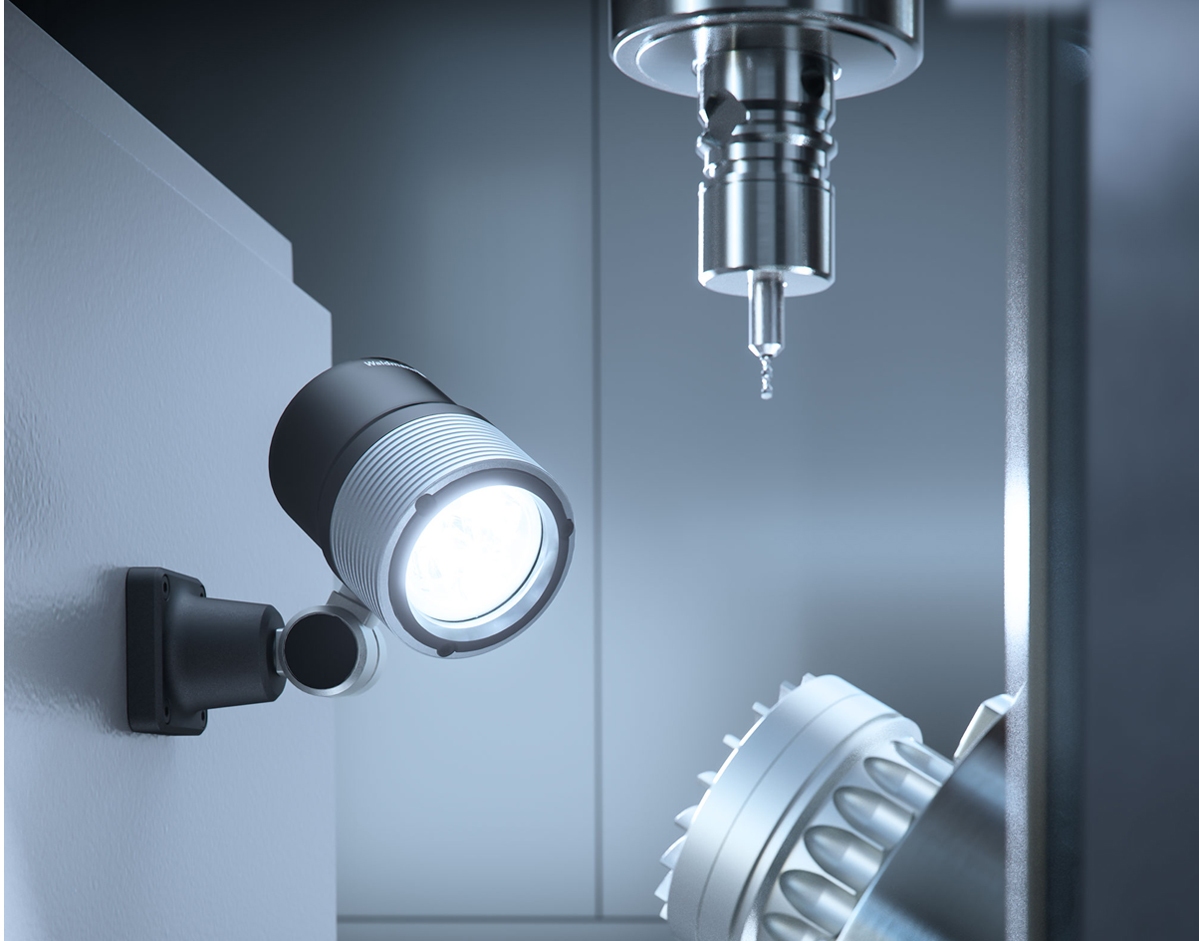

ROCIA.focus LED industrial-grade spot light is constructed from rugged anodized aluminum with completely sealed housing, handily preventing any intrusion of liquids, dust or foreign objects that are ever-present in machining environments. Specially designed optics and high-powered LEDs provide bright 5000K, glare-free lighting to the machine area.The continuous dimming function allows for adjustments of light level with flicker-free comfort. In addition, ROCIA.focus boasts up to 90% energy savings when compared to similar halogen machine lights.
- 60,000 hour maintenance-free operation
- Precision optics in 10° or 40° beam spreads
- 5000K color temperature
- 600 lumens
- Protection rating up to IP67
- Dimming-capable on arm versions
- High-resistance coating against heat, wear and corrosion
- No stroboscopic effect
- No heat generated in the direction of the light beam
- ETL/cETL approved
IP67-rated
IP67 stands for “Ingress Protection 67.” It is a standard rating that indicates the level of protection an electronic device or enclosure offers against the intrusion of solid particles (like dust) and liquids (such as water). The IP rating is followed by two numbers:
First Digit (6):
This digit represents the level of protection against solid particles. The “6” indicates that the device is dust-tight, meaning it offers complete protection against the entry of dust or other solid particles.
Second Digit (7):
This digit represents the level of protection against liquids. The “7” indicates that the device is capable of withstanding immersion in water up to 1 meter (about 3.3 feet) deep for at least 30 minutes without any harmful effects.
IP67-rated machine light is completely dust-tight and can be submerged in water for a limited time without being damaged. This rating is often used for devices that need to operate in challenging environments or conditions where exposure to dust and water is a concern.
Ordering Information
Images
Downloads
Accessories
Video
Ordering Information
| wdt_ID | Part No | Model | Voltage | Arm Style | Beam Angle | Switch | Spec Sheet |
|---|---|---|---|---|---|---|---|
| 1 | 113184000-00680272 | RFF 600/850/DS | 12-28VAC/12-40VDC | Gooseneck | 10° | Yes | Download |
| 2 | 113184000-00680285 | RFF 600/850/DS | 12-28VAC/12-40VDC | Gooseneck | 40° | Yes | Download |
| 3 | 113185000-00668613 | RFJ 600/850/DS | 12-28VAC/12-40VDC | Pivoting Head | 10° | No | Download |
| 4 | 113185000-00680293 | RFJ 600/850/DS | 12-28VAC/12-40VDC | Pivoting Head | 40° | No | Download |
| 5 | 113182000-00680110 | RFD 600/850/DS | 12-28VAC/12-40VDC | Double Arm | 10° | Yes | Download |
| 6 | 113182000-00680208 | RFD 600/850/DS | 12-28VAC/12-40VDC | Double Arm | 40° | Yes | Download |
| 7 | 113181000-00680172 | RFD600/850/D | 100-240VAC | Double Arm | 10° | Yes | Download |
| 8 | 113181000-00680185 | RFD600/850/D | 100-240VAC | Double Arm | 40° | Yes | |
| 9 | 113183000-00680254 | RFF 600/850/D | 100-240VAC | Gooseneck | 10° | Yes | |
| 10 | 113183000-00680258 | RFF 600/850/D | 100-240VAC | Gooseneck | 40° | Yes |
Images
Downloads
Accessories
| Description | Part Number | Image |
MOUNTING OPTION: Clamp, 0-2.75″ span | 190007019-00014904 |  |
MOUNTING OPTION: Clamp, 2.5″-5.4″ span | 190033019-00014950 |  |
MOUNTING OPTION: Wall Bracket for Universal Base | 300213018-00025178 |  |
| MOUNTING OPTION: Magnetic Base | 190058019-00807466 |  |
| OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz | 209585029 |  |
