MAGNIFICATION & INSPECTION LIGHT | RING LED

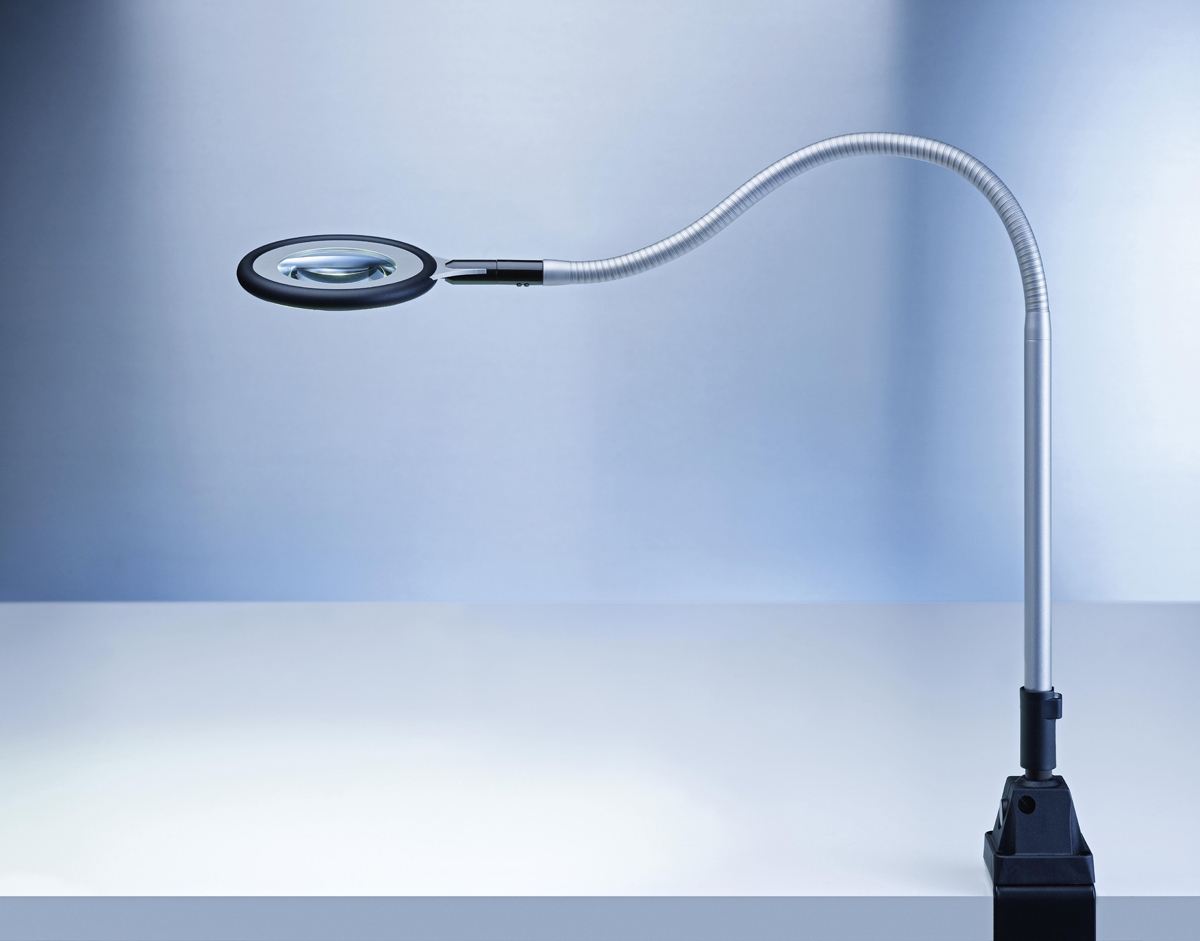

LED magnification lights, LED spot light  - RING LED



The RING LED is the lighting solution for the precise examination of parts for a number of fields of application – from mechanical engineering to research and development. The sleek design is minimal and fits easily into any workspace. The luminaire head is less than ½” thick and a mere 5” in diameter. 63 LEDs provide a minimum of 50,000 hours of operating life at 100% brightness level – maintenance free for over six years running 24/7!

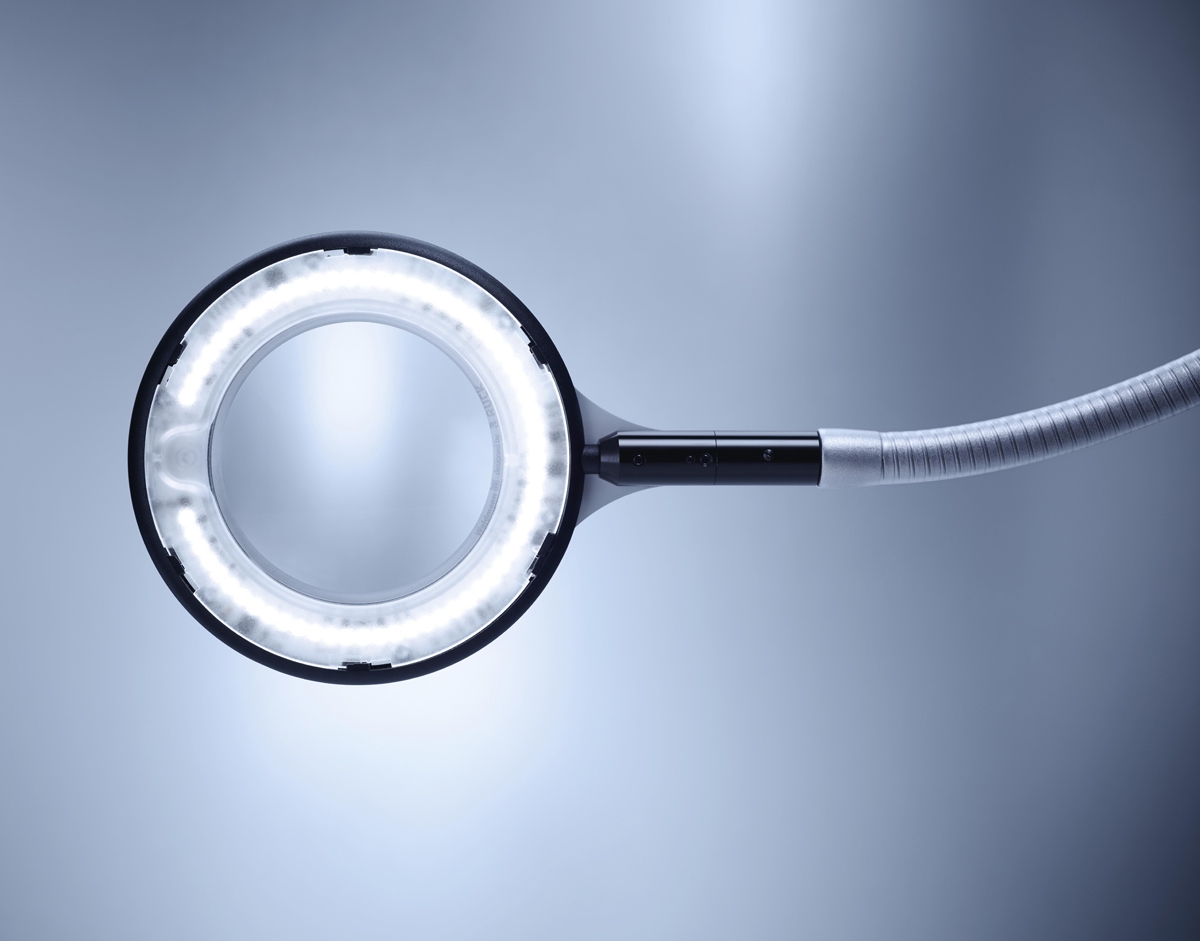

  • 63 bright glare-free LEDs surround the 6 diopter magnifier lens
  • Gooseneck arm is strong and flexible, even after 20,000 movements

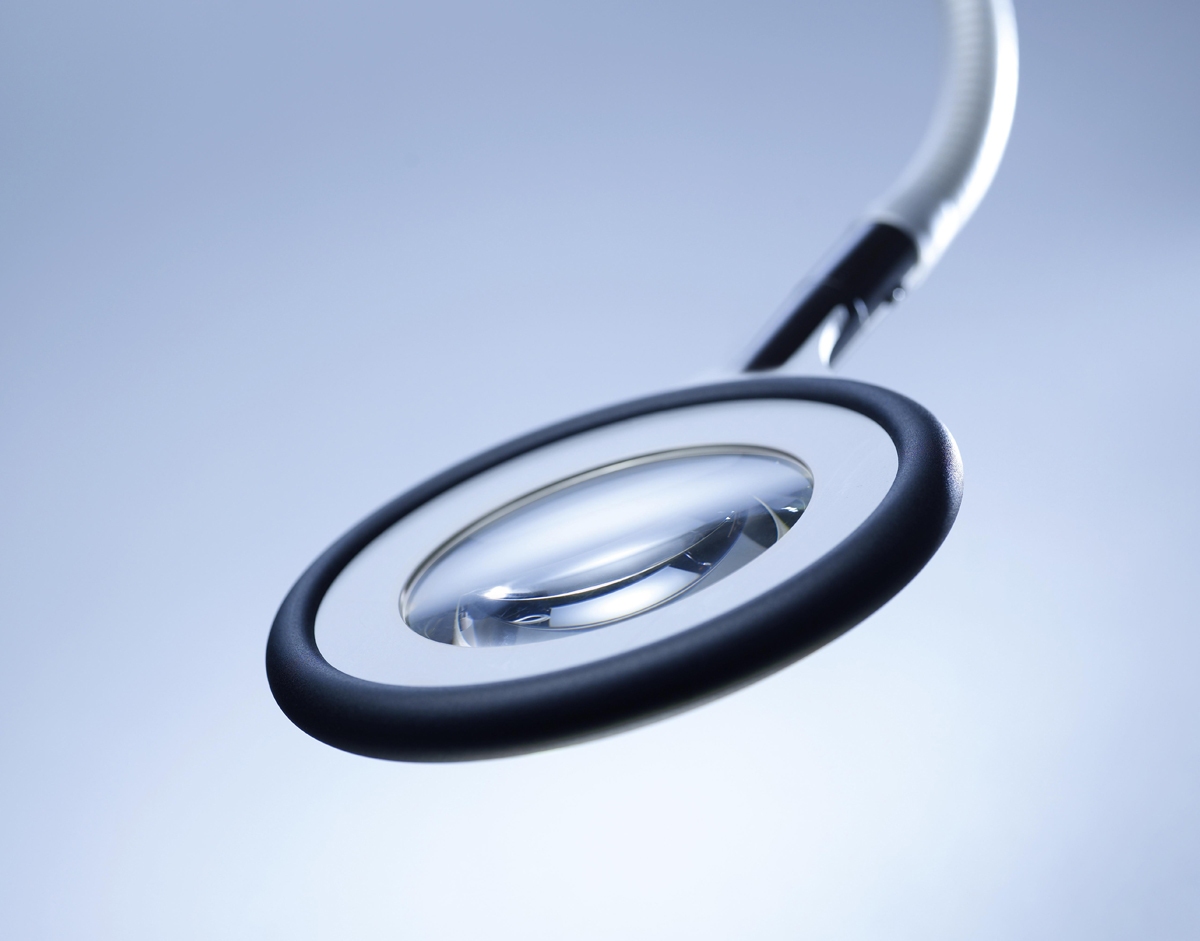

  • 2.8" diameter distortion-free lens specially hard-coated for scratch-resistance
  • Soft-touch sensor on luminaire head switches light on easily
  • Flexible gooseneck arm with 15.7" reach
  • Maintenance-free LEDs with over 50,000 hour lamp life

Part No: 113142000-00618824
Model: RLLQ 63
Magnification: 6 diopters
Voltage: 100-240V
Mounting: Univ. Fixed Base
Wattage: 6W
Spec Sheet:  113142000-00618824.pdf



Part No: 113142M10
Model: RLLQ 63
Magnification: 6 diopters
Voltage: 100-240V
Mounting: Table Clamp
Wattage: 6W
Spec Sheet:  113142M10.pdf



Part NoModelMagnificationVoltageMountingWattageSpec Sheet
113142000-00618824RLLQ 636 diopters100-240VUniv. Fixed Base 6W
113142M10 RLLQ 636 diopters100-240VTable Clamp6W



LED magnification lights - Ring LED
Ring LED - LED magnification lights
Ring LED - LED magnification lights
Ring LED - LED magnification lights





RING LED Video



Description Part Number Image
MOUNTING OPTION: Clamp, 0 - 2.75"
190007019-00014904
MOUNTING OPTION: Clamp 2.5" - 5.3"
190033019-00014950
 MOUNTING OPTION: Table Clamp (included with M10 version)) D14228000

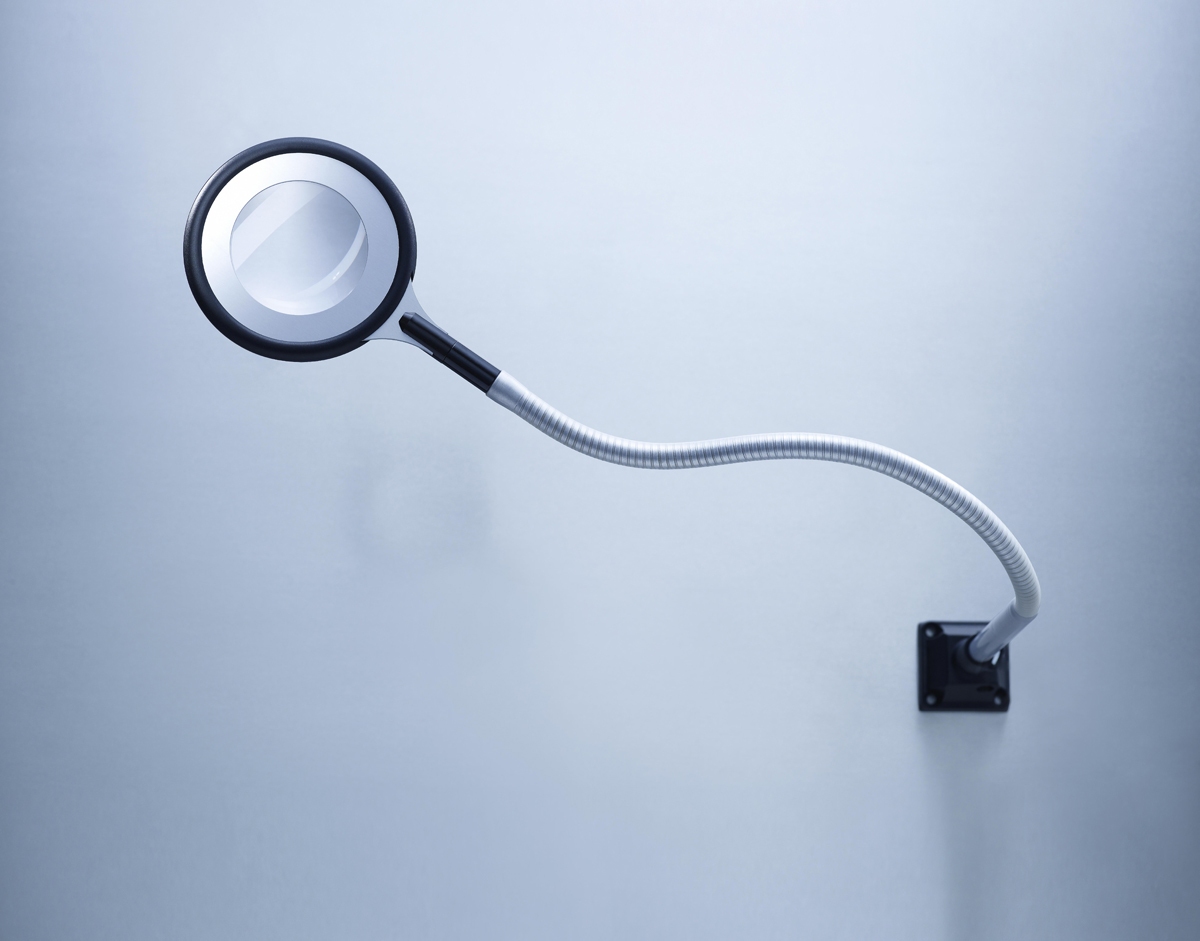

MOUNTING OPTION: Wall Bracket, L-type
300213018-00025178
MOUNTING OPTION: Table Base, Black
190036109-00058238
MOUNTING OPTION: Magnetic Base
190057019-00015056
