MACHINE LIGHT | HEAD LED



Head LED was designed to be easily integrated into machines and equipment - even when space is tight. Combining LED technology and specially designed Waldmann optics, this flood light provides a major light source with minor space requirements. Head LED can light up an entire machine with its 70- or 100-degree flood. It is also impact and vibration resistant, and waterproof. The utilitarian design lends itself well for easy integration into machines and equipment, supplying the most light available from a luminaire this size.

  • Flood light optics available in either 70° or 100° degree beam angles
  • Direct mounting - no need for brackets or other mounting accessories
  • Height = under 1".  Diameter - under 2"
  • LED impact and vibration resistant - ideal for use in machines and equipment

Part No: 113155000-00646485
Model: MCAYL 4 S
Beam Angle: 100°
Voltage: 24V DC
Lumens: 805
Wattage: 11W
Spec Sheet:  113155000-00646485.pdf



Part No: 113155000-00669609
Model: MCAYL 4 S
Beam Angle: 70°
Voltage: 24V DC
Lumens: 805
Wattage: 11W
Spec Sheet:  113155000-00669609.pdf



Part NoModelBeam AngleVoltageLumensWattageSpec Sheet
113155000-00646485MCAYL 4 S100°24V DC80511W
113155000-00669609MCAYL 4 S70°24V DC80511W

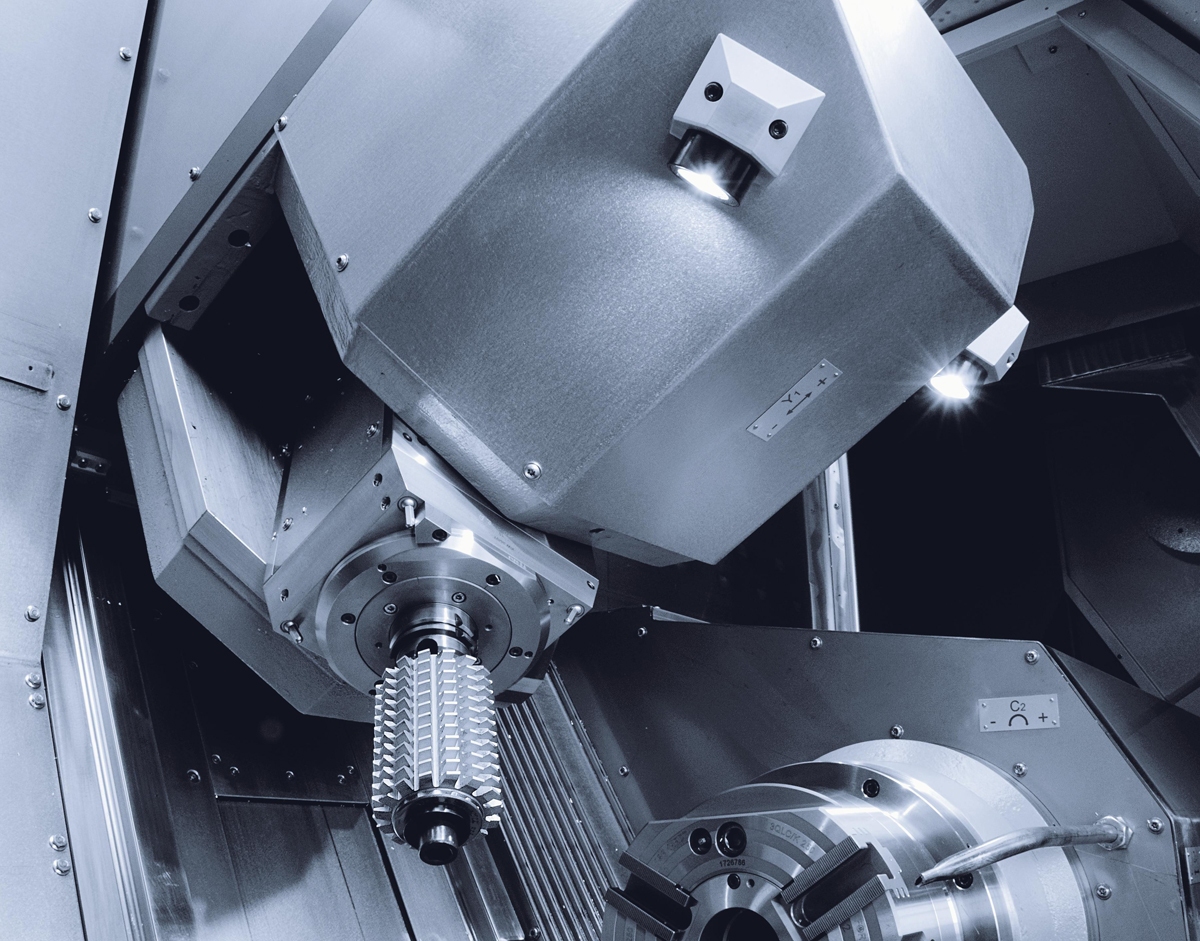

B-01_WFL___head-led_MCAYL-4S_MCAYL-6S

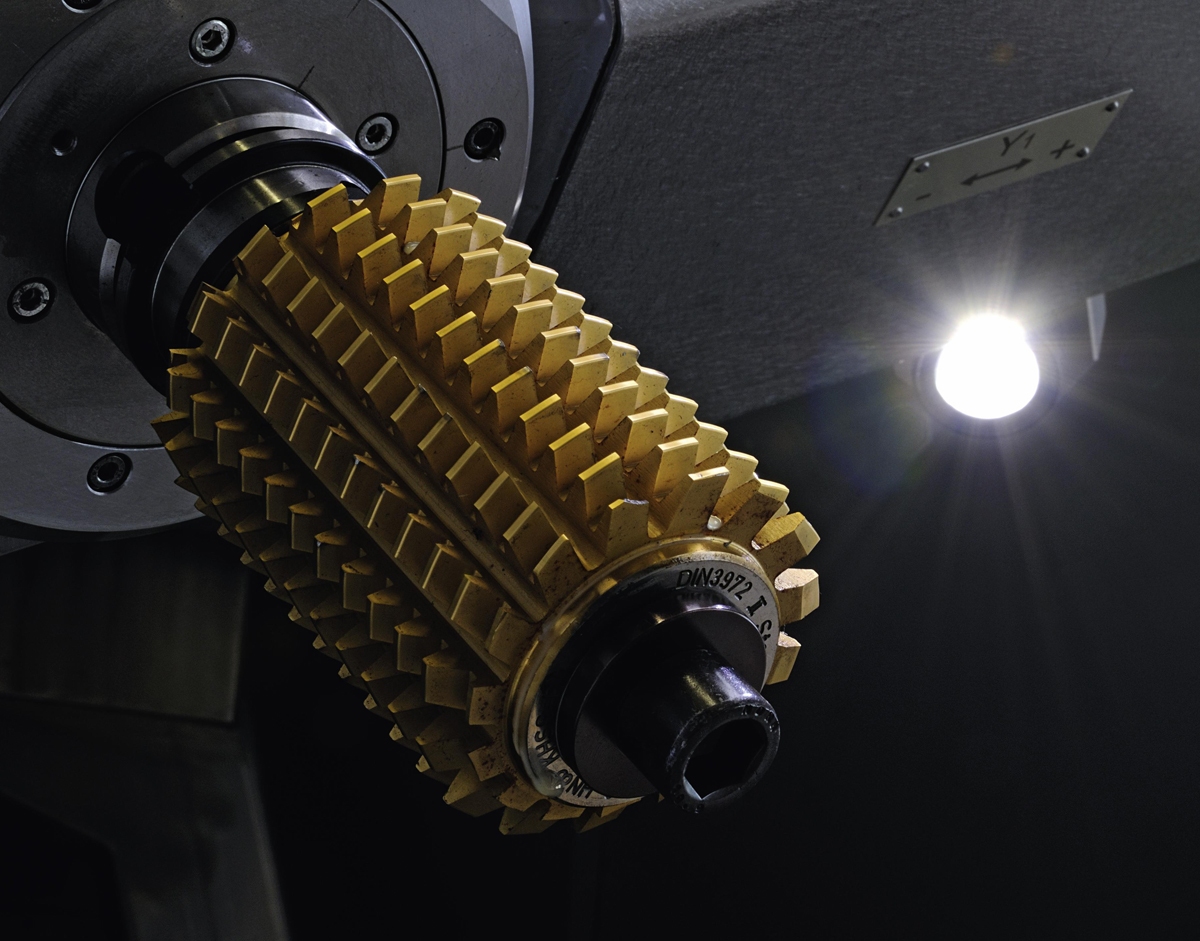

E-02_WFL_head-led_MCAYL-4S_MCAYL-6S

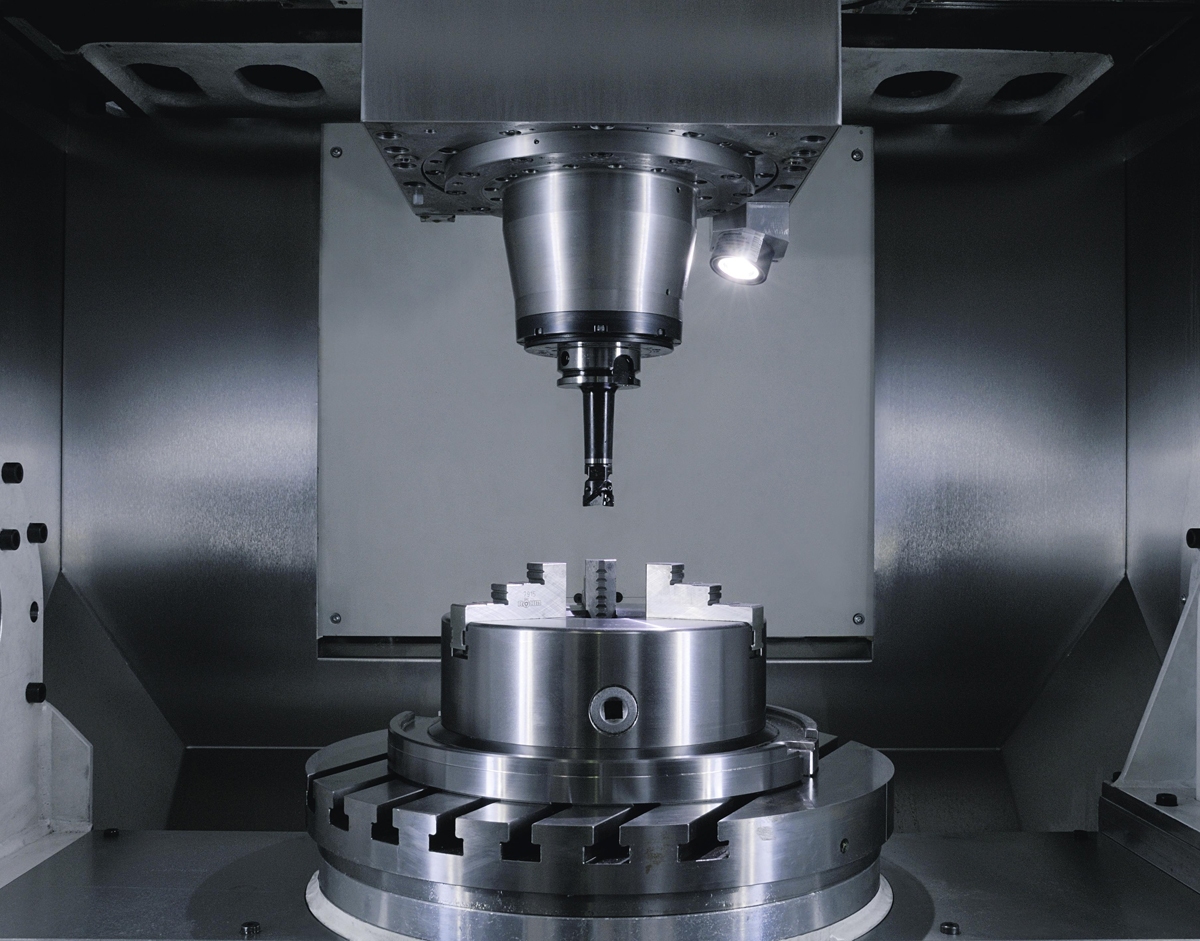

B-01_Hueller_Hille_head-led_MCAYL-4S_MCAYL-6S

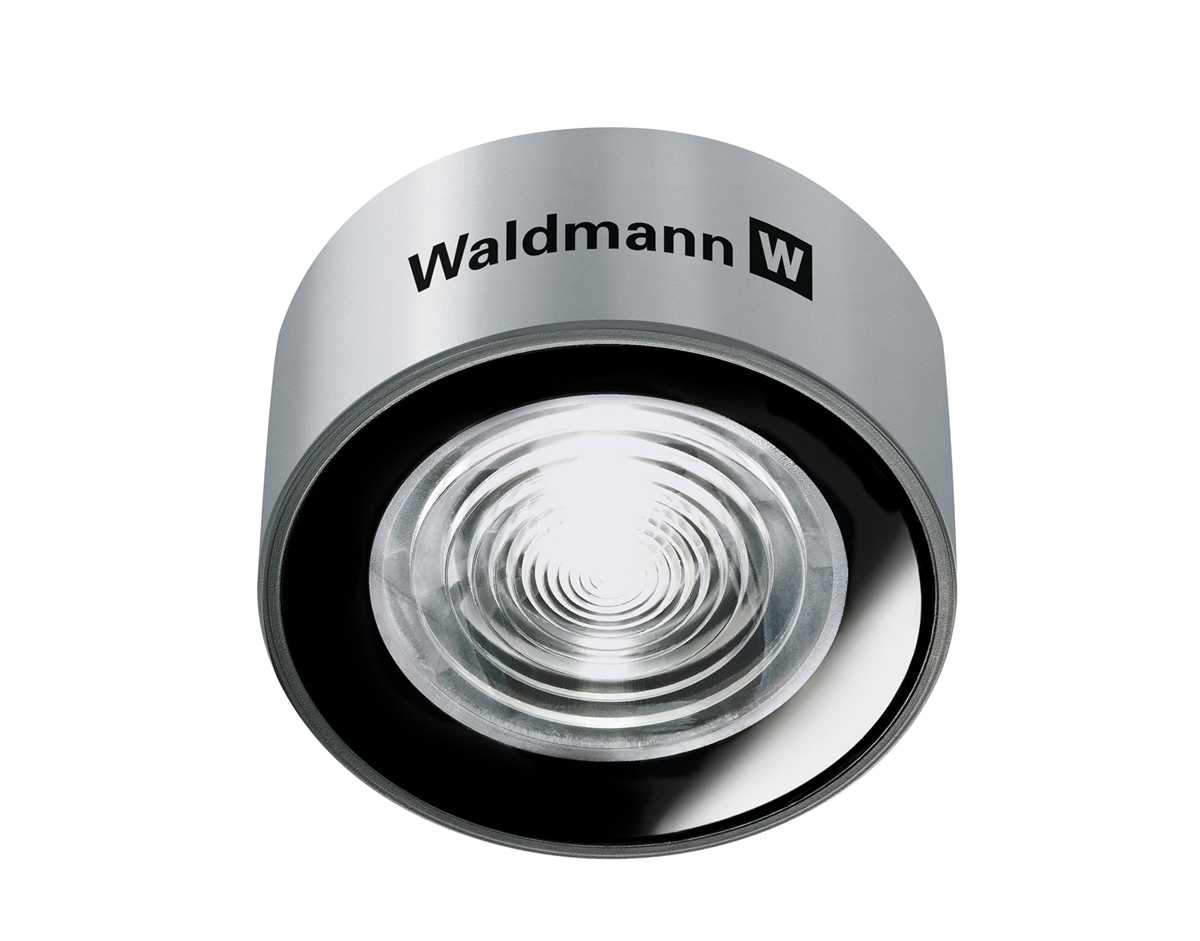

HEAD LED slvr wh bkgd

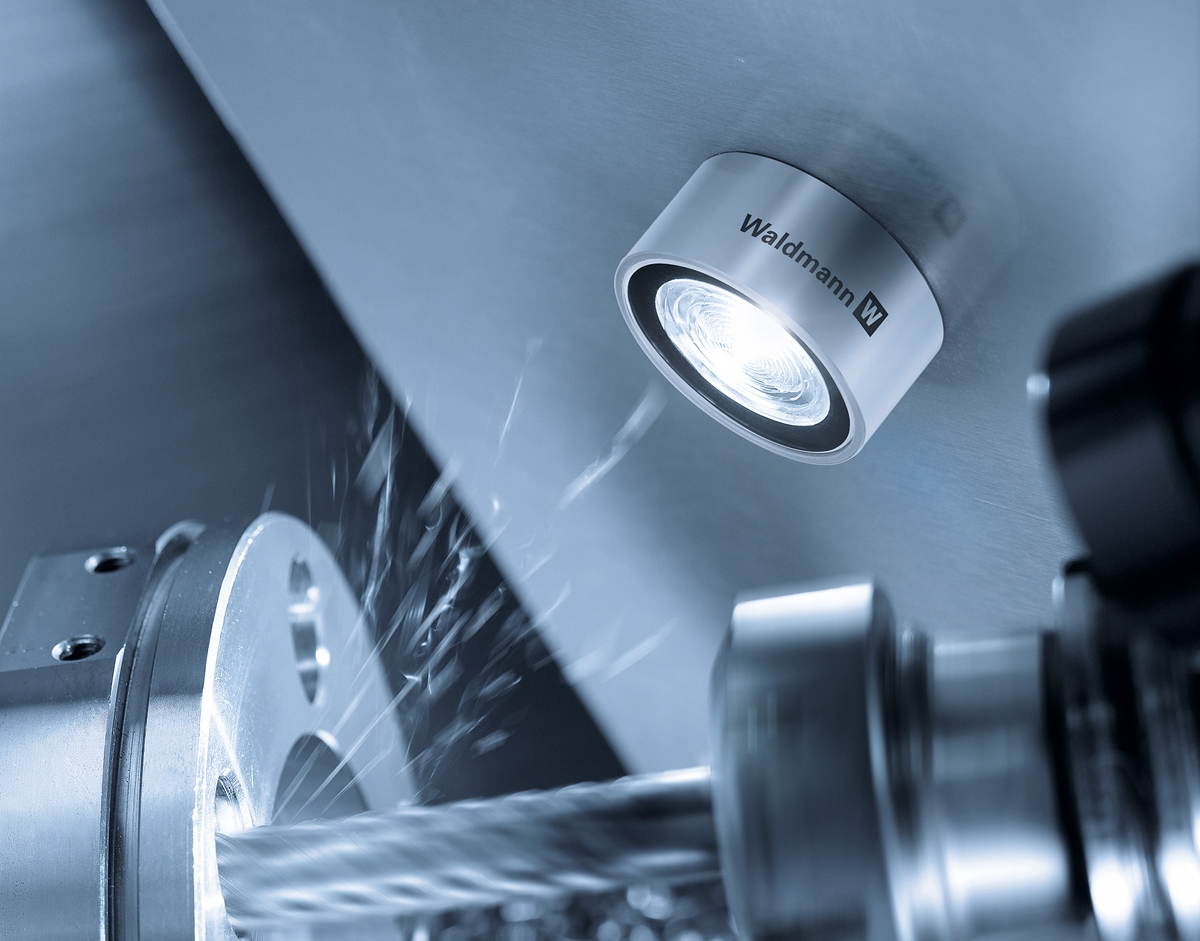

HEAD LED appl

HEAD LED

Description Part Number Image
 OPERATING DEVICE: Max. Wattage = 17W to run at 120-277V, 50/60Hz  209585039-  00004006
 M12 Connector Plug (included) 330603020-00002947
