MACHINE LIGHT | FLAT LED

FLAT LED - For industrial LED light, and linear LED lighting.

FLAT LED is designed for wide area illumination using state-of-the-art, high output LEDs and specially designed optics to produce intense, wide area illumination in confined spaces. With an overall depth of only 7/8”, the FLAT LED doesn’t cut into available space. And the IP67 protection rating assures that it is safe for use in conditions where equipment must be carefully sanitized – where water, chemicals, high pressures and temperatures can prove fatal for electronic circuits and instrumentation. Also available now, FLAT LED for Automated Manufacturing - a surface-mounted FLAT LED with even brighter 7000K - 10000K wide area illumination!

  • Six high-output LEDs
  • 50,000 hours maintenance-free operation
  • Low power consumption with intensely bright light
  • Precision optics provides 60° beam spread
  • Available as recessed or surface mount
  • Sealed IP67 protective rating
  • High-resistance coating against heat, wear and corrosion
  • No heat generated in the direction of the light beam
  • No stroboscopic effect

Part No: 112560000-00003069
Model: MYAL 6 S
Dimensions: 11.2" x 2.3"
Voltage: 10-40V DC
Mounting: Surface Mount
Color: Black
Color Temperature: 6500K
Spec Sheet:  112560000-00003069.pdf



Part No: 112560001-00003166
Model: MYEL 6 S
Dimensions: 11.2" x 2.3"
Voltage: 10-40V DC
Mounting: Recessed
Color: Black
Color Temperature: 6500K
Spec Sheet:  112560001-00003166.pdf



Part No: 112560002-00006272
Model: MYAL 6 S
Dimensions: 11.2" x 2.3"
Voltage: 10-30V AC
Mounting: Surface Mount
Color: Black
Color Temperature: 6500K
Spec Sheet:  112560002-00006272.pdf



Part No: 112560003-00006273
Model: MYEL 6 S
Dimensions: 11.2" x 2.3"
Voltage: 10-30V AC
Mounting: Recessed
Color: Black
Color Temperature: 6500K
Spec Sheet:  112560003-00006273.pdf



Part No: USF002000-00808278
Model: MYAL 6 S
Dimensions: 11.2" - 2.3"
Voltage: 23-25V DC
Mounting: Surface Mount
Color: Silver
Color Temperature: 7000K-10000K
Spec Sheet:  USF002000-00808278.pdf



Part NoModelDimensionsVoltageMountingColorColor TemperatureSpec Sheet
112560000-00003069MYAL 6 S11.2" x 2.3"10-40V DCSurface MountBlack6500K
112560001-00003166MYEL 6 S11.2" x 2.3"10-40V DCRecessedBlack6500K
112560002-00006272MYAL 6 S11.2" x 2.3"10-30V ACSurface MountBlack6500K
112560003-00006273MYEL 6 S11.2" x 2.3"10-30V ACRecessedBlack6500K
USF002000-00808278MYAL 6 S11.2" - 2.3"23-25V DCSurface MountSilver7000K-10000K

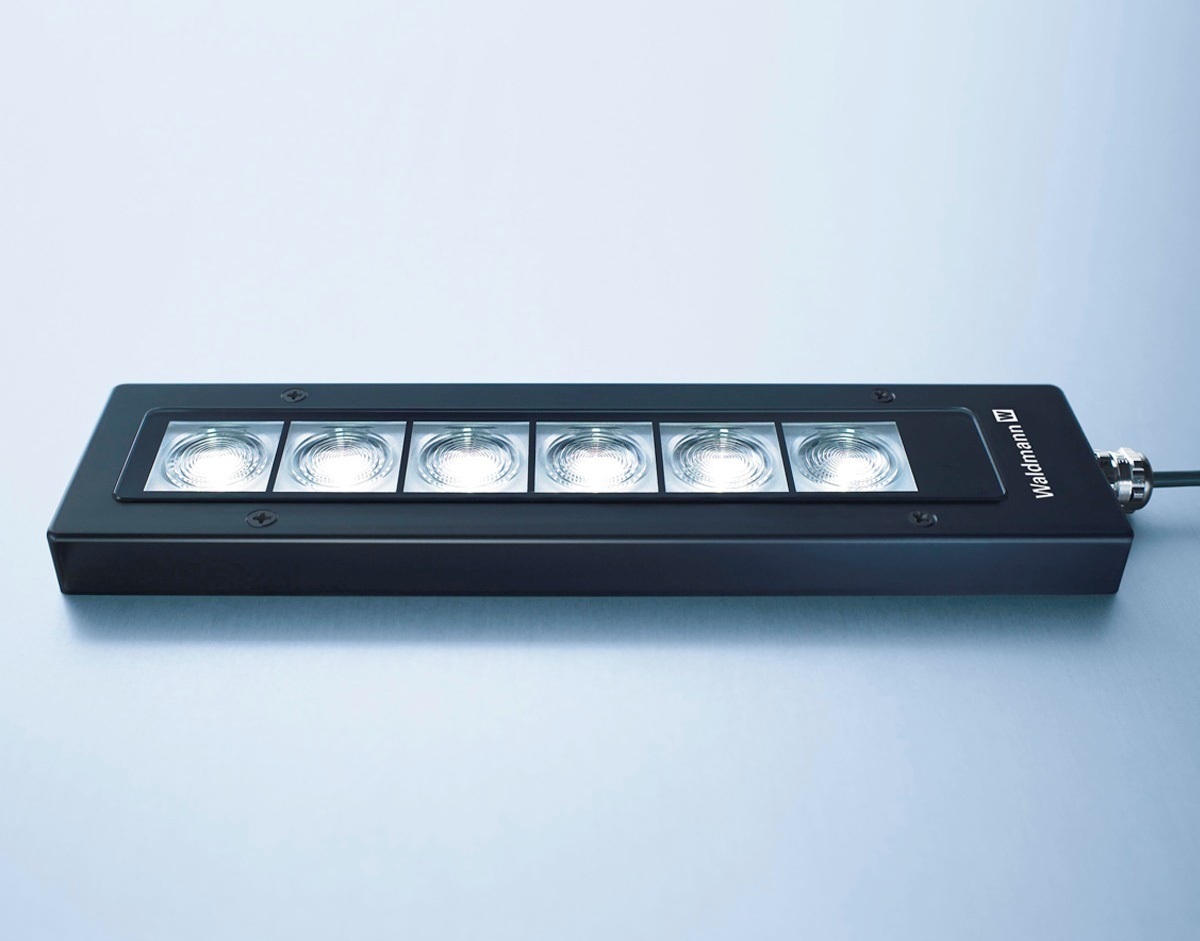

flatled_aufbauversion_07_bearbeitet_NEU_flat-led_MYAL-6-S

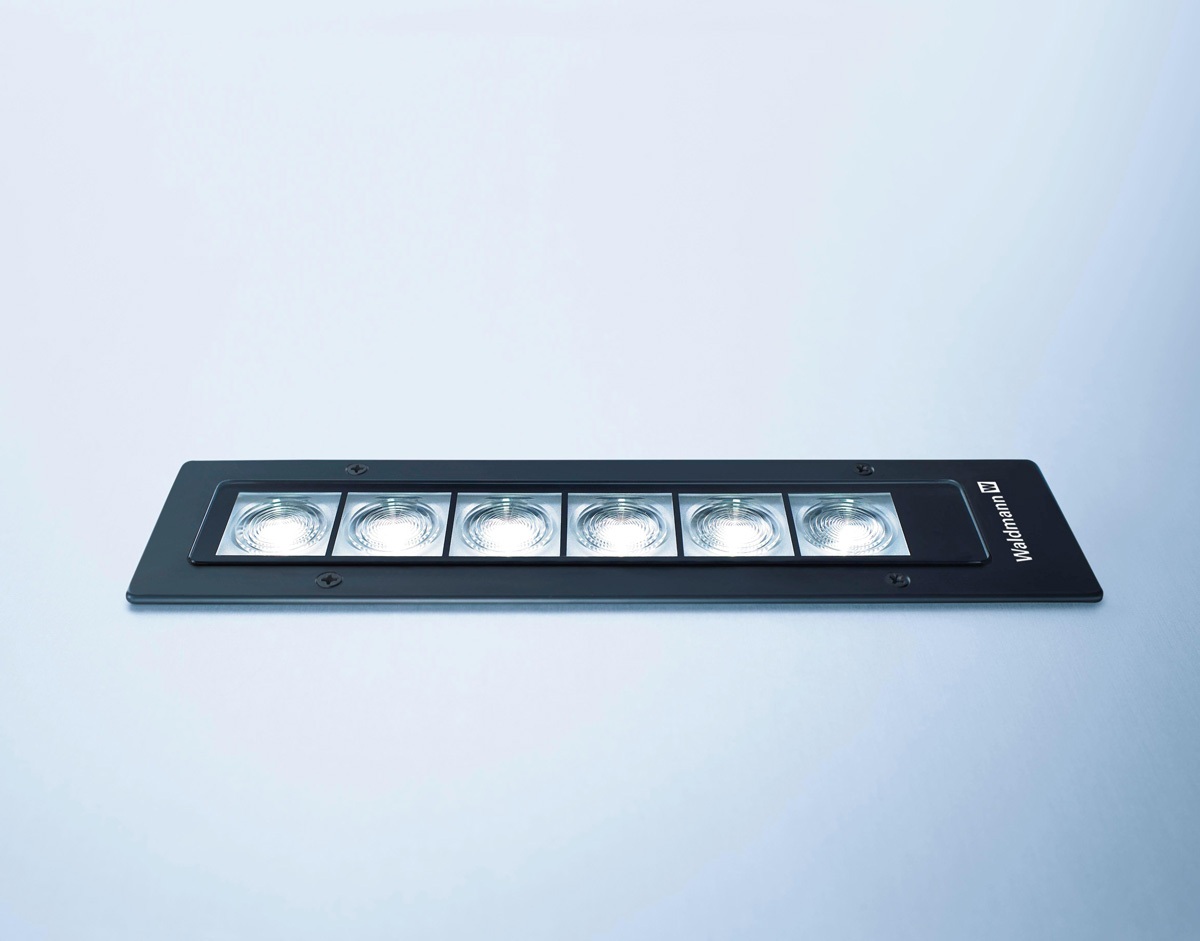

flatled_einbauversion_6_bearbeitet_flat-led_MYEL-6-S

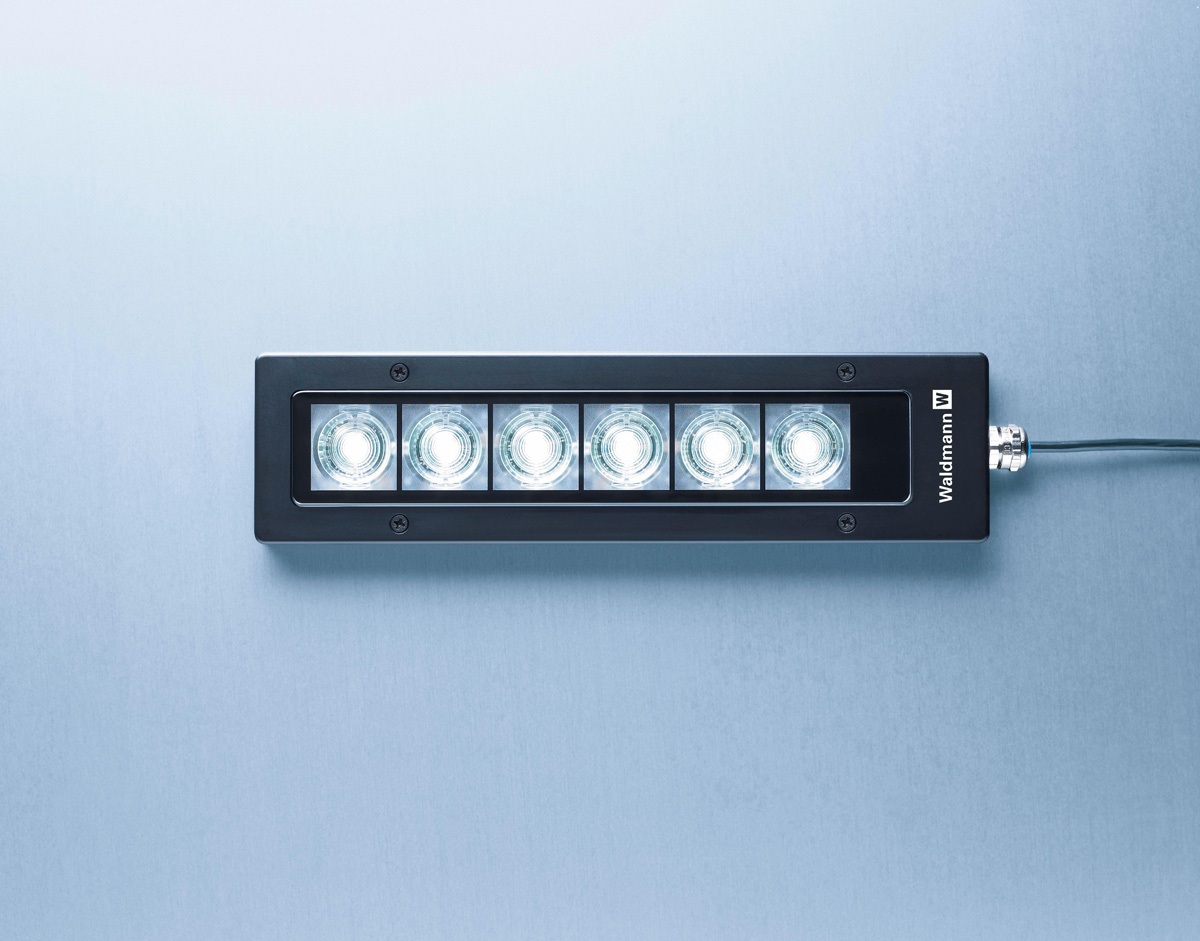

flatled_frontal_01_TITEL_bearbeitet_flat-led_MYAL-6-S

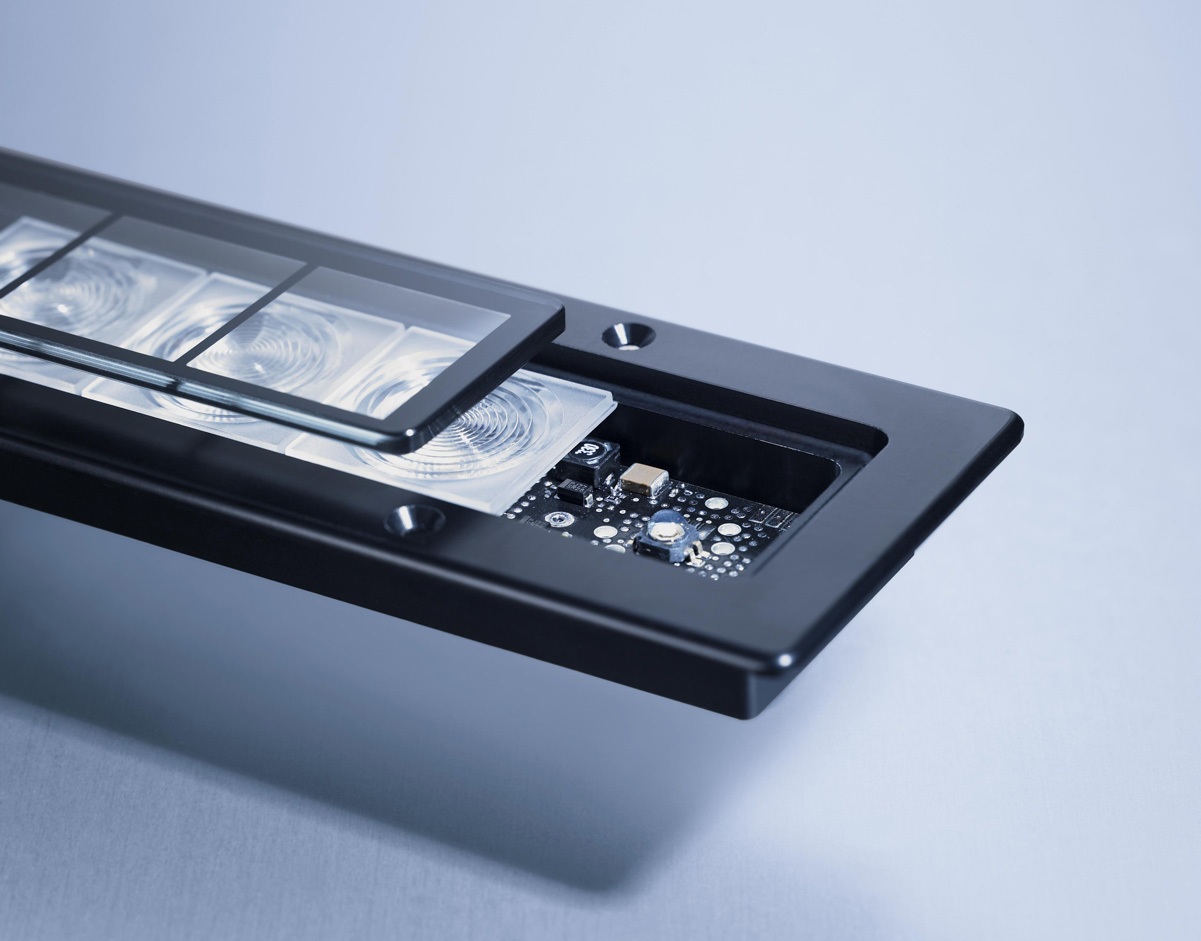

flatled_querschnitt_bearbeitet_flat-led_MYEL-6-S
Description Part Number Image
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz
209585029
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz
209585030
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz
209585032
MOUNTING OPTION: Swivel Bracket
203081019-00019478
