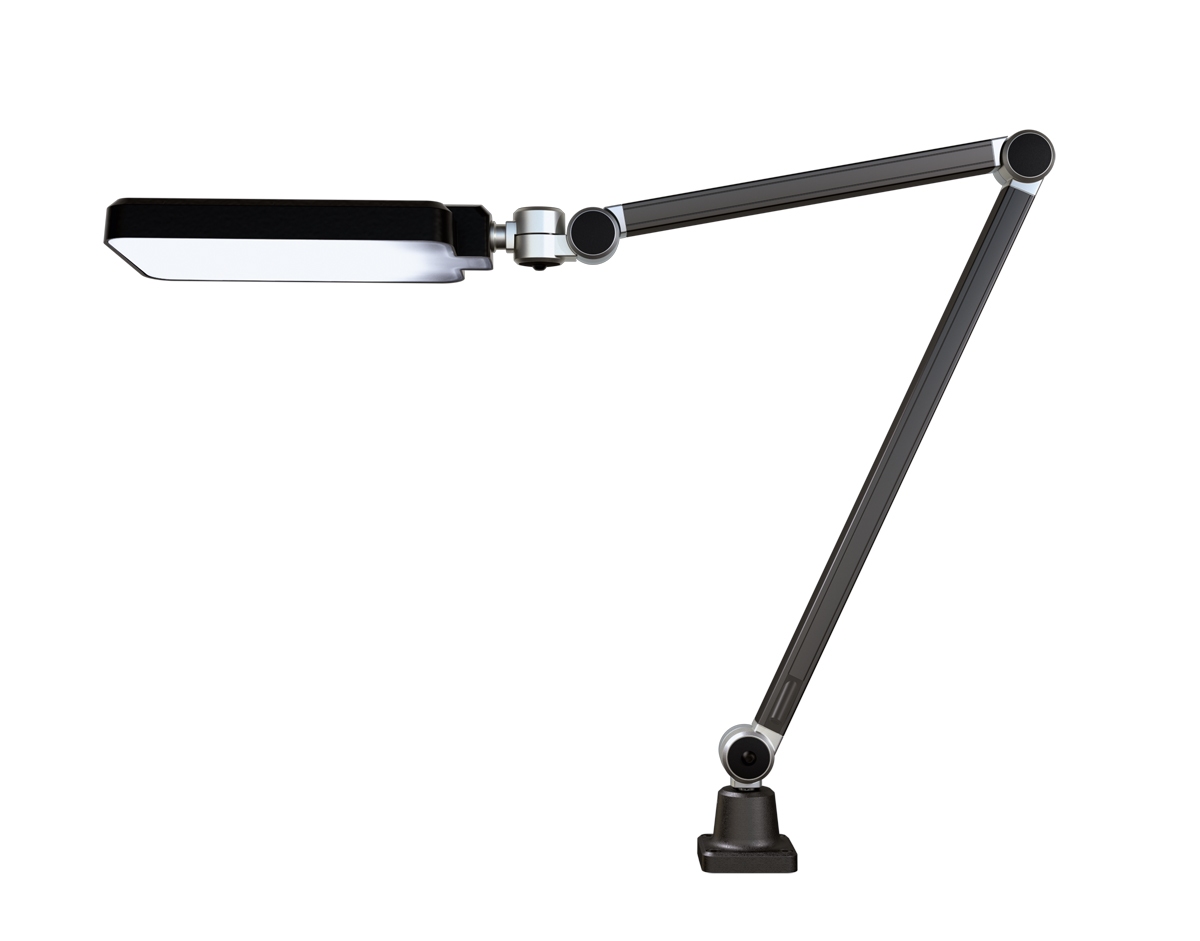

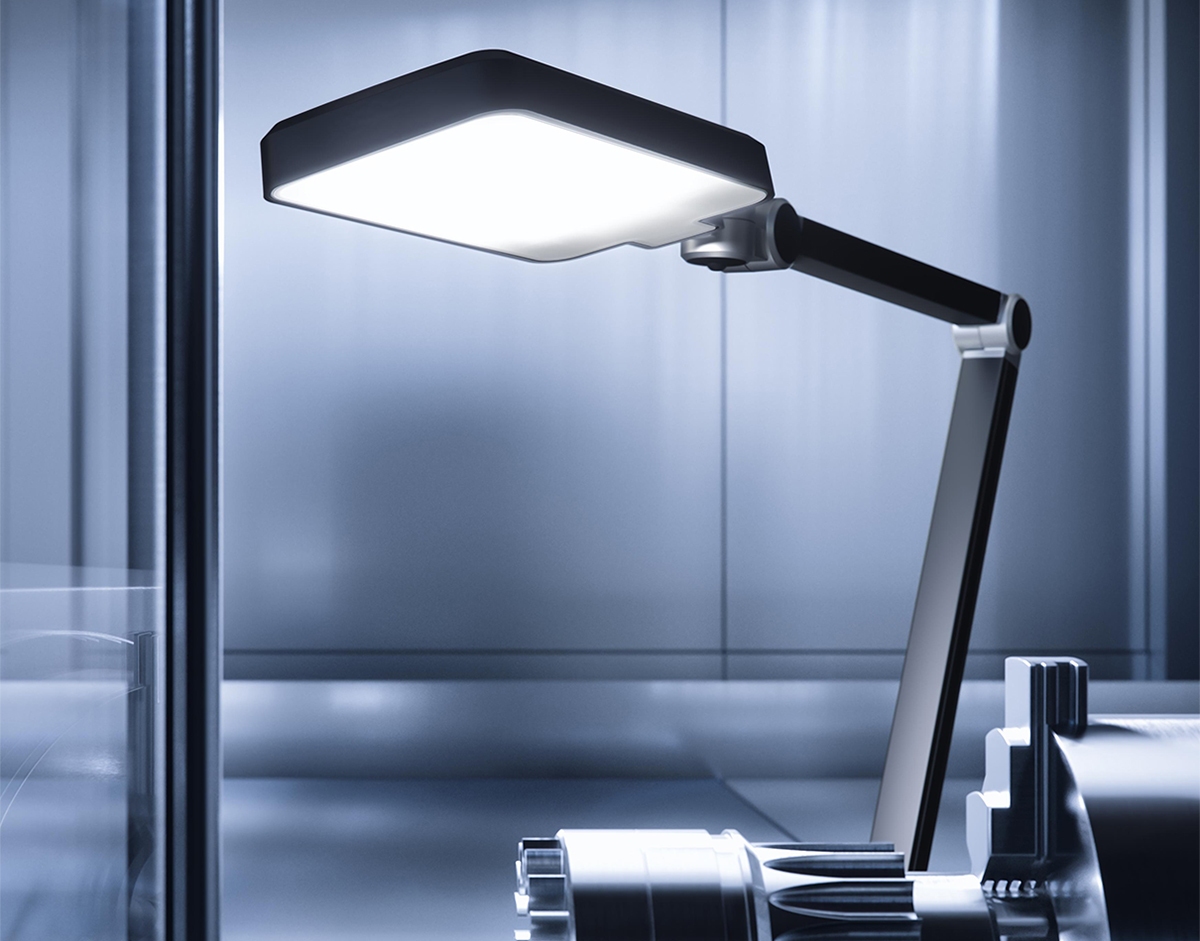

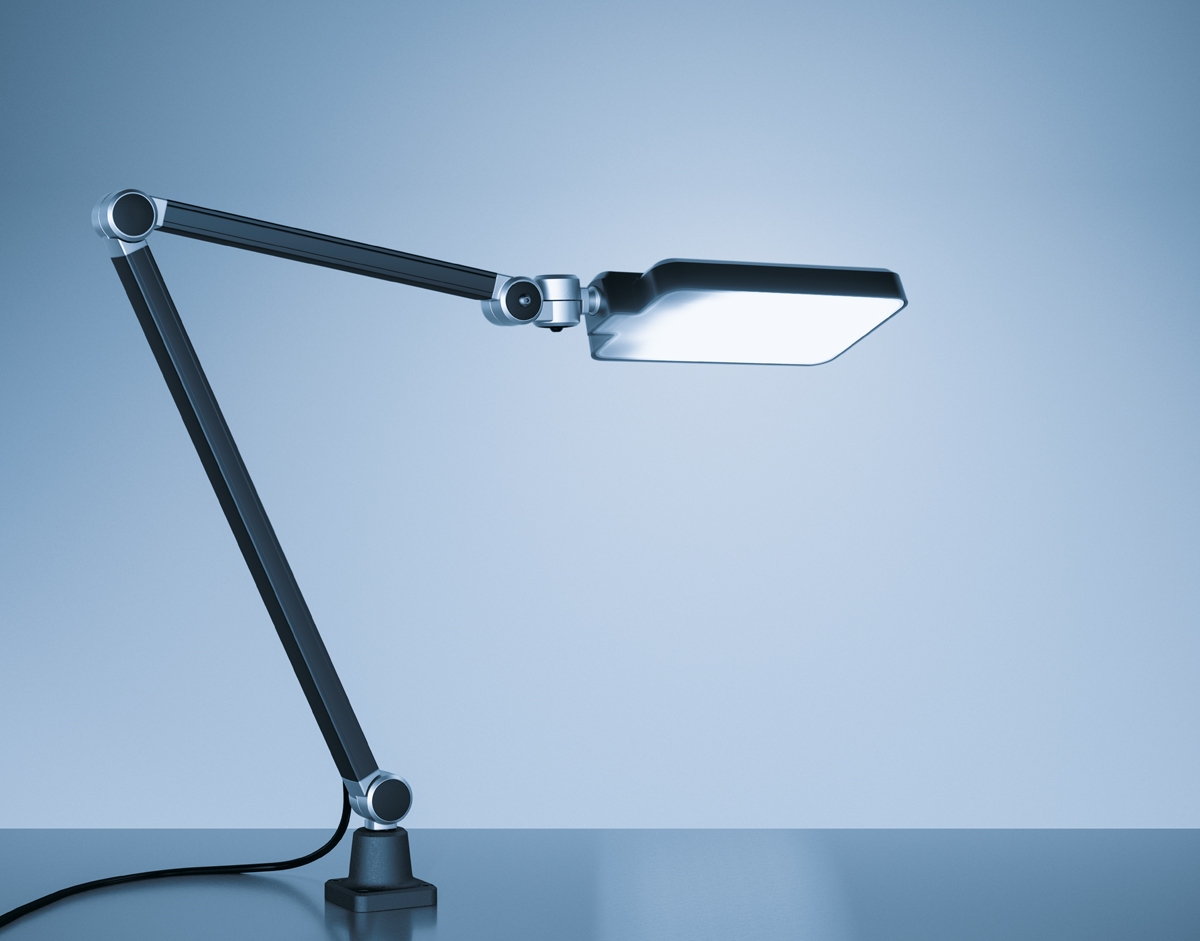

TASK & WORKBENCH LIGHT  | ROCIA.planar

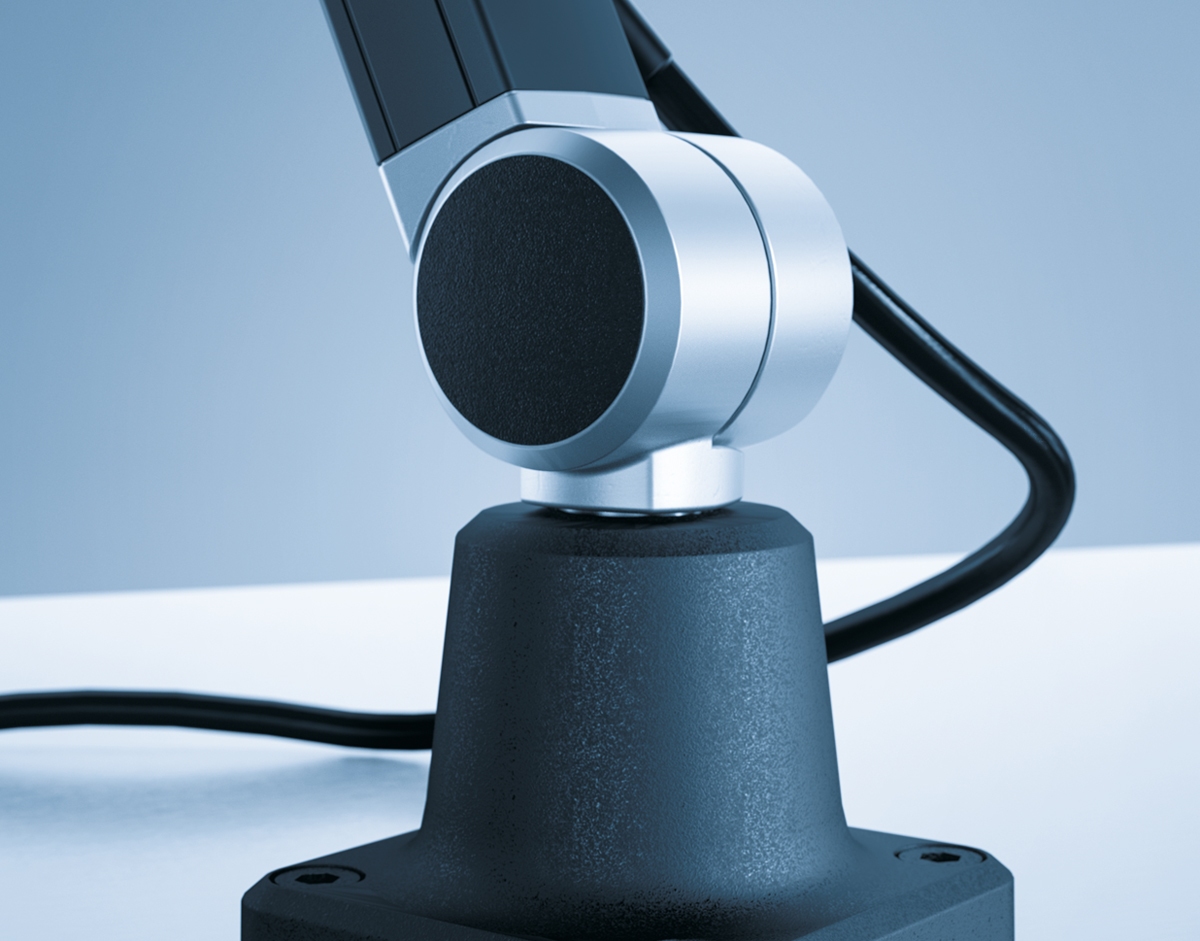

ROCIA.planar is a robust task light which lends itself specifically to industrial environments. The full-metal design protects the inside workings from dust, particles and moisture very often found in these types of areas. The 3D head joint and spring-balanced arm guarantee easy positioning and ergonomic comfort. Maintenance-free LED technology offers 50,000 hours of LED life. Wide area illumination lights up a sizeable area with 5000K neutral white light – an optional dimming function is also available.
  • Rugged aluminum housing for long life
  • 50,000 hour maintenance-free LED operation
  • 100-240V – Integrated power supply built in
  • 10-foot cord and plug included
  • Dimming function optional
  • High-resistance coating against heat, wear and corrosion
  • Switch conveniently located on luminaire head
  • IP67 protection against water, oil, etc.
  • 5000K color temperature

IP67-rated

IP67 stands for “Ingress Protection 67.” It is a standard rating that indicates the level of protection an electronic device or enclosure offers against the intrusion of solid particles (like dust) and liquids (such as water). The IP rating is followed by two numbers:

First Digit (6):

This digit represents the level of protection against solid particles. The “6” indicates that the device is dust-tight, meaning it offers complete protection against the entry of dust or other solid particles.

Second Digit (7):

This digit represents the level of protection against liquids. The “7” indicates that the device is capable of withstanding immersion in water up to 1 meter (about 3.3 feet) deep for at least 30 minutes without any harmful effects.

IP67-rated machine light is completely dust-tight and can be submerged in water for a limited time without being damaged. This rating is often used for devices that need to operate in challenging environments or conditions where exposure to dust and water is a concern.

Waldmann Lighting
9 Century Drive
Wheeling, IL 60090
USA
waldmann@waldmannlighting.com
Phone: (847) 520-1060
Toll Free: (800) 634-0007
Fax: (847) 520-1730

Linkedin Twitter Youtube Instagram Facebook
wdt_ID Part No Light Output Base Style Dimmable Color Temp Spec Sheet
1 D15949000 direct/indirect wood tripod yes 3000K
2 D15950000 direct/indirect metal yes 3000K
