TASK & WORKBENCH LIGHT  | ROCIA.planar

ROCIA.planar - LED industrial task lighting, industrial workbench lighting, LED workstation lighting

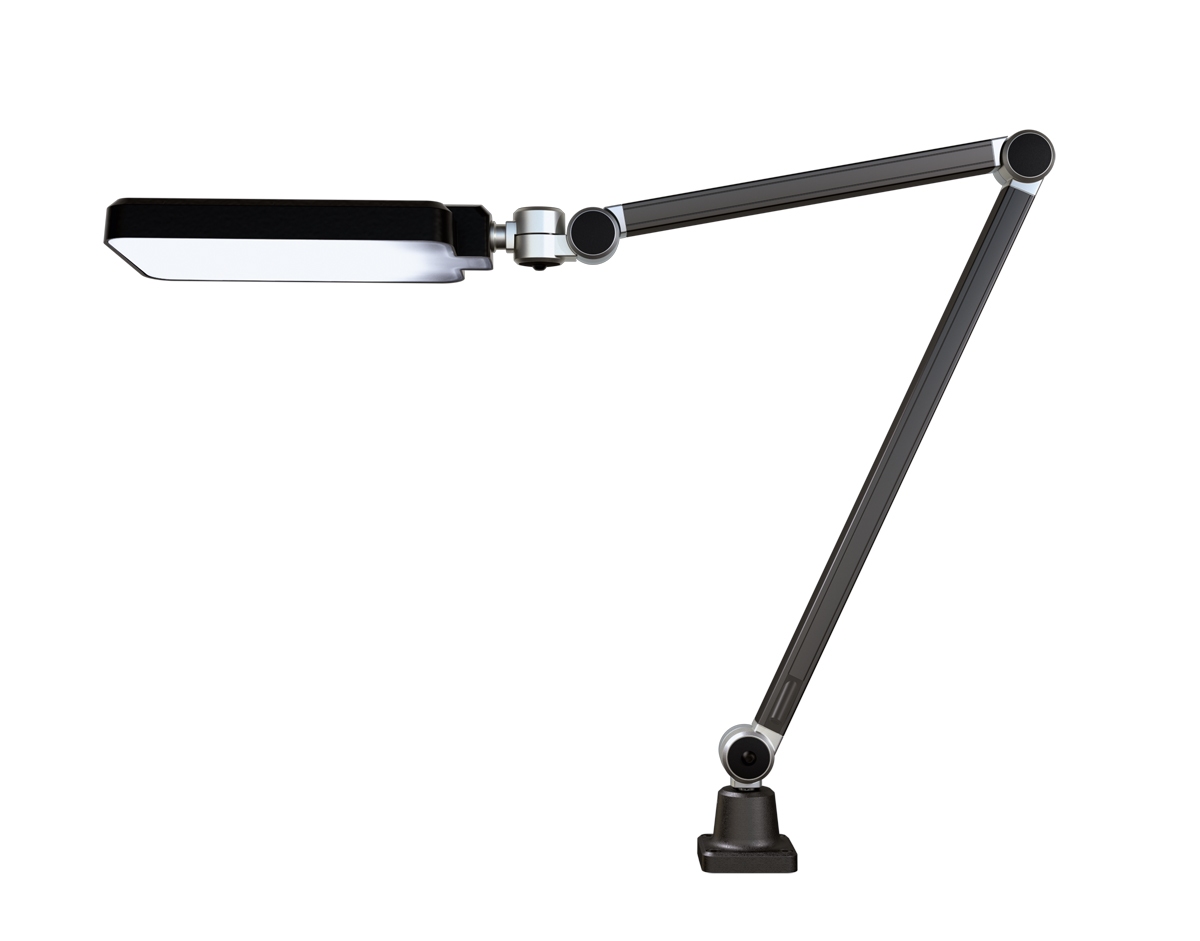

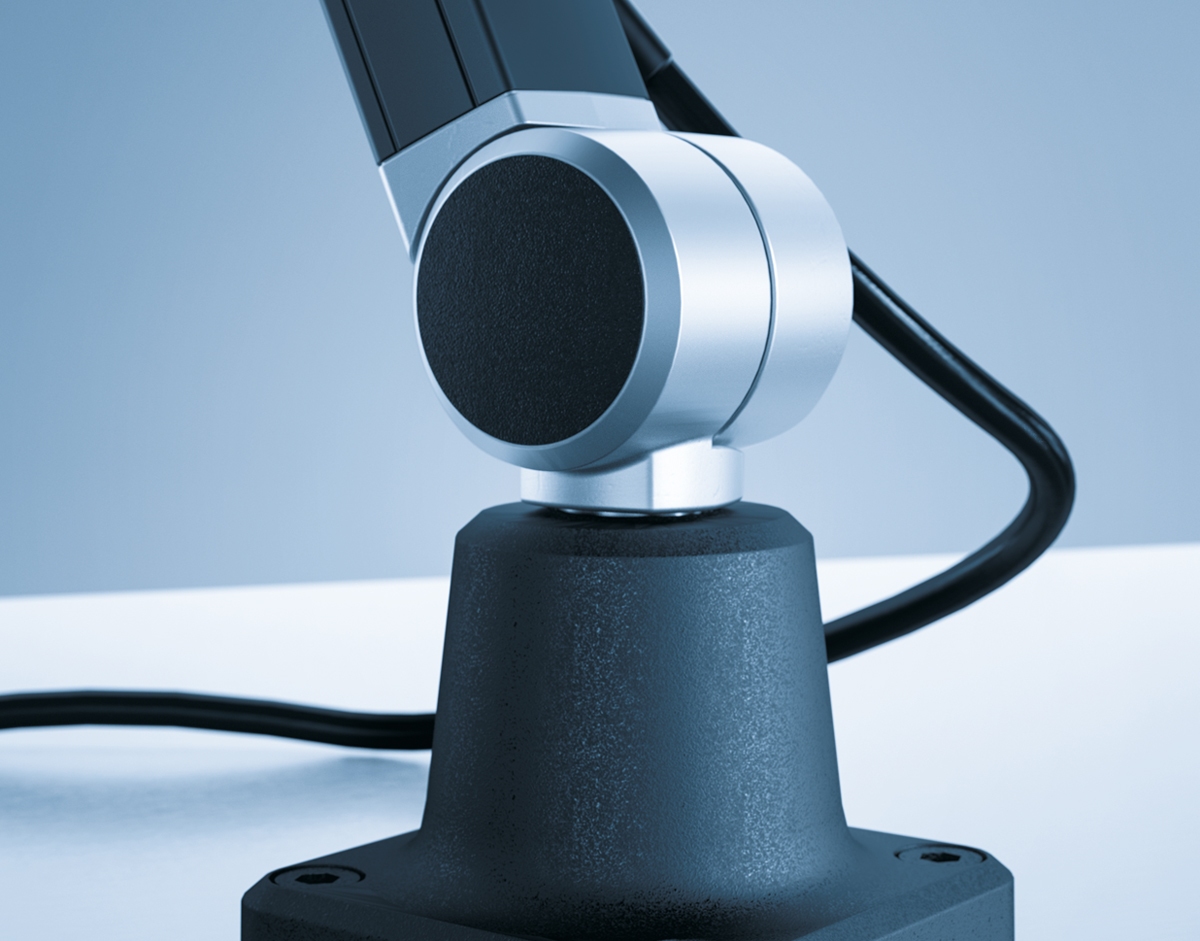

ROCIA.planar is a robust task light which lends itself specifically to industrial environments. The full-metal design protects the inside workings from dust, particles and moisture very often found in these types of areas. The 3D head joint and spring-balanced arm guarantee easy positioning and ergonomic comfort. Maintenance-free LED technology offers 50,000 hours of LED life. Wide area illumination lights up a sizeable area with 5000K neutral white light - an optional dimming function is also available.

  • Rugged aluminum housing for long life
  • 50,000 hour maintenance-free LED operation
  • 100-240V - Integrated power supply built in
  • 10-foot cord and plug included
  • Dimming function optional
  • High-resistance coating against heat, wear and corrosion
  • Switch conveniently located on luminaire head
  • IP67 protection against water, oil, etc.
  • 5000K color temperature


Part No: 113458000-00699752
Model: RPD 1700/850
Arm Style: Articulating Arm
Wattage: 18W
Dimming: No
Voltage: 100-240V
IP Rating: IP67
Spec Sheet:  113458000-00699752.pdf



Part No: 113688000-00803484
Model: RPD 1700/850/D
Arm Style: Articulating Arm
Wattage: 18W
Dimming: Yes
Voltage: 100-240V
IP Rating: IP67
Spec Sheet:  113688000-00803484.pdf



Part NoModelArm StyleWattageDimmingVoltageIP RatingSpec Sheet
113458000-00699752RPD 1700/850Articulating Arm18WNo100-240VIP67
113688000-00803484RPD 1700/850/DArticulating Arm18WYes100-240VIP67



ROCIA.planar - LED industrial task lighting, industrial workbench lighting, industrial workstation lighting
ROCIA.planar - QC LED lighting, QC lighting, quality control LED lighting, inspection lighting
ROCIA.planar - LED workstation lighting, LED workbench lighting, LED industrial task lighting, LED industrial workbench lighting
Rocia.planar appl



 ROCIA.planar

Description Part Number Image
MOUNTING OPTION: Clamp, 0-2.75" span
190007019-00014904
MOUNTING OPTION: Clamp, 2.5"-5.4" span
190033019-00014950
MOUNTING OPTION: Wall Bracket for Universal Base
300213018-00025178
 OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz   209585029
