MACHINE LIGHT | ONE LED

ONE LED - Industrial, linear LED lighting by Waldmann Lighting

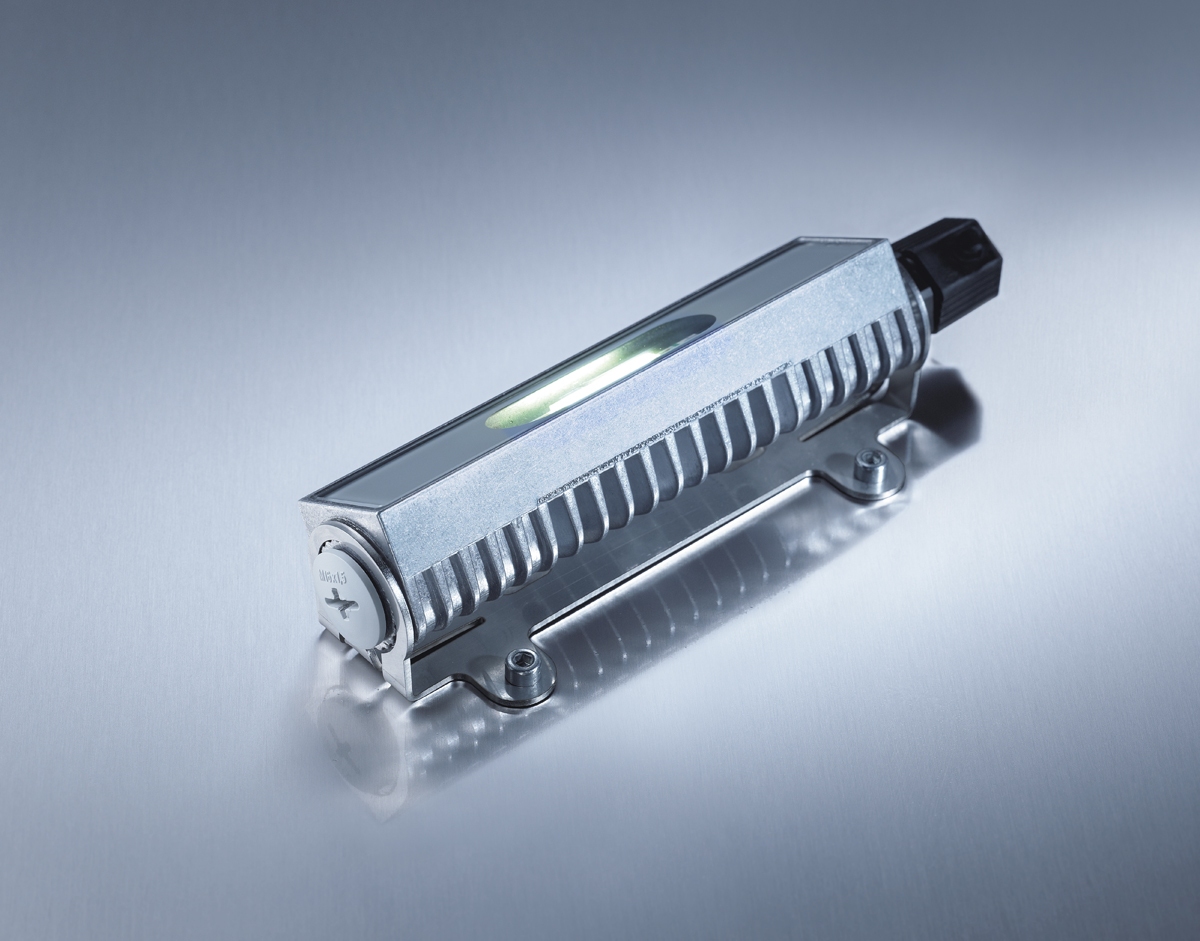

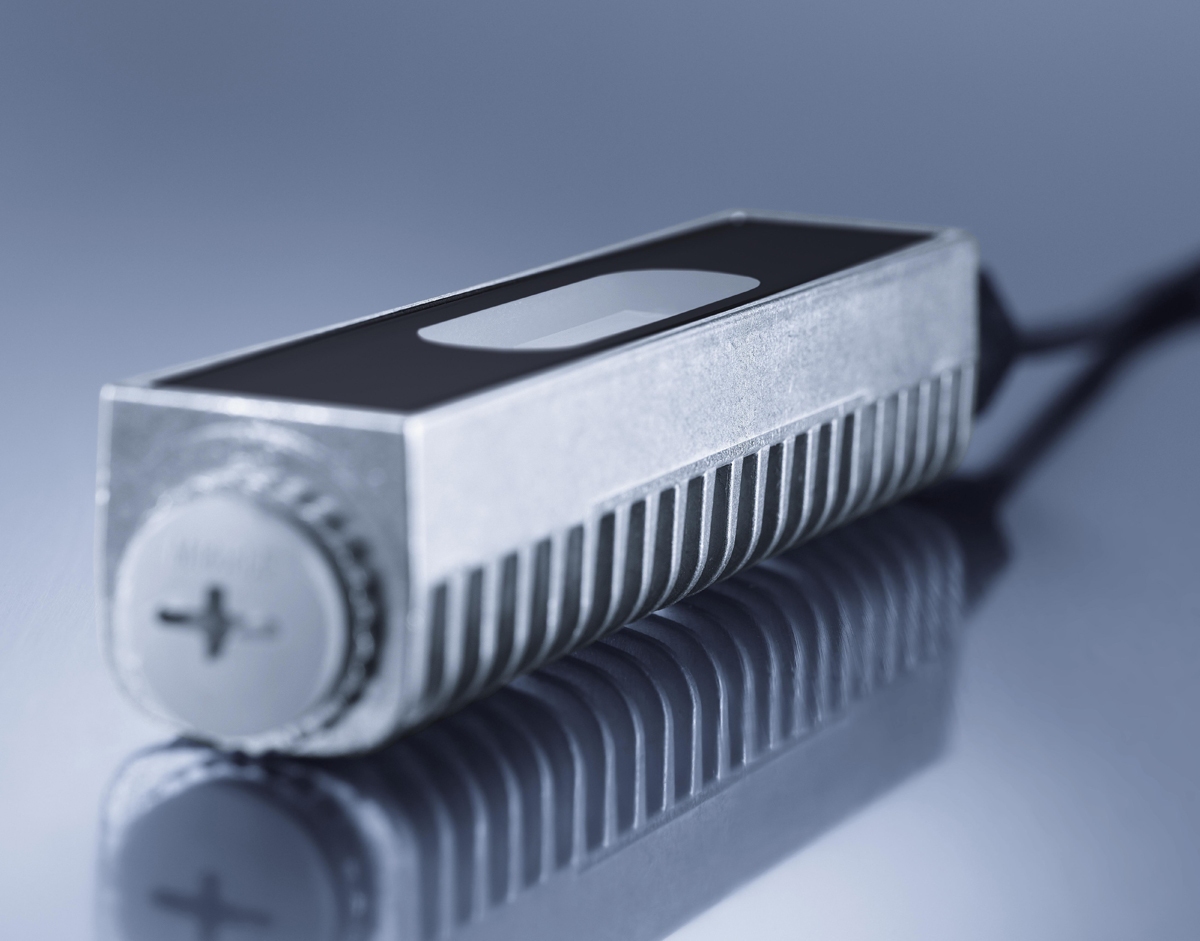

ONE LED was designed with the purpose of providing maximum light inside machines of any size, with a no frills, small housing. This 170º flood light is available with or without a mounting bracket and with an acrylic or borosilicate glass lens. 50,000 hours of maintenance-free LED service life saves time and money. ONE LED is ideal for use in printing presses, drill presses, textile machines, etc.
  • All-purpose, no-frills LED machine light for confined spaces

  • Housing size: H 1.4" x W 1.2" x L 6.4"
  • Latest LED chip-array technology
  • Easy to install and connect
  • 50,000 hours maintenance-free operation
  • Ideal for small machining compartments
  • Die-cast, heat-sink housing




111
Part No: 112887024-00076049
Model: MVAL 1 S
Lens Material: PMMA Acrylic
Mounting Bracket: Not Included
Protection Rating: IP54
Lumens: 400
Spec Sheet:  112887024-00076049.pdf



11
Part No: 112887027-00076050
Model: MVAL 1 S
Lens Material: PMMA Acrylic
Mounting Bracket: Included
Protection Rating: IP54
Lumens: 400
Spec Sheet:  112887027-00076050.pdf



111
Part No: 112887034-00076059
Model: MVAL 1 S
Lens Material: Borosilicate Glass
Mounting Bracket: Not Included
Protection Rating: IP67
Lumens: 400
Spec Sheet:  112887034-00076059.pdf



111
Part No: 112887037-00076065
Model: MVAL 1 S
Lens Material: Borosilicate Glass
Mounting Bracket: Included
Protection Rating: IP67
Lumens: 400
Spec Sheet:  112887037-00076065.pdf



Part NoModelLens MaterialMounting BracketProtection RatingLumensSpec Sheet
112887024-00076049MVAL 1 S PMMA AcrylicNot IncludedIP54400
112887027-00076050MVAL 1 S PMMA AcrylicIncludedIP54400
112887034-00076059MVAL 1 S Borosilicate GlassNot IncludedIP67400
112887037-00076065MVAL 1 S Borosilicate GlassIncludedIP67400
ONE LED 1
ONE LED 2
ONE LED 3
Description Part Number  Image
Max Wattage = 20W to run at 100-277V, 50/60Hz 209585029
Max Wattage = 50W to run at 120V, 50/60Hz 209585030
Max Wattage = 96W to run at 120-277V, 50/60Hz 209585032
