    THE LIGHT FOR OPTIMAL PRODUCTION

    ACURIA

ACURIA is built with precision which delivers state of the art efficient lighting technology, along with the safest protection against high temperatures, including coolant and lubricant-resistant materials.  The ACURIA can withstand even the harshest environmental conditions.  There are multiple sizes to fit all machine requirements.  This powerful machine light includes a simple control and the most seamless integration that guarantees easy installation. The light was designed by the renowned Product Designer, Dominic Schindler, offering the perfect combination with Waldmann’s industrial lighting expertise.

OPTIMAL SEALING:


ACURIA is milled from a solid billet without unnecessary seals. This means the luminaire withstands even the harshest environmental conditions and virtually any temperature. ACURIA passes the long-term tightness test thanks to outstanding impermeability.

  • Quality that’s made to last
  • Minimal downtime due to moisture or dust ingress
  • Safer conditions for people, equipment and the company as a whole
  • IP67 protection rating

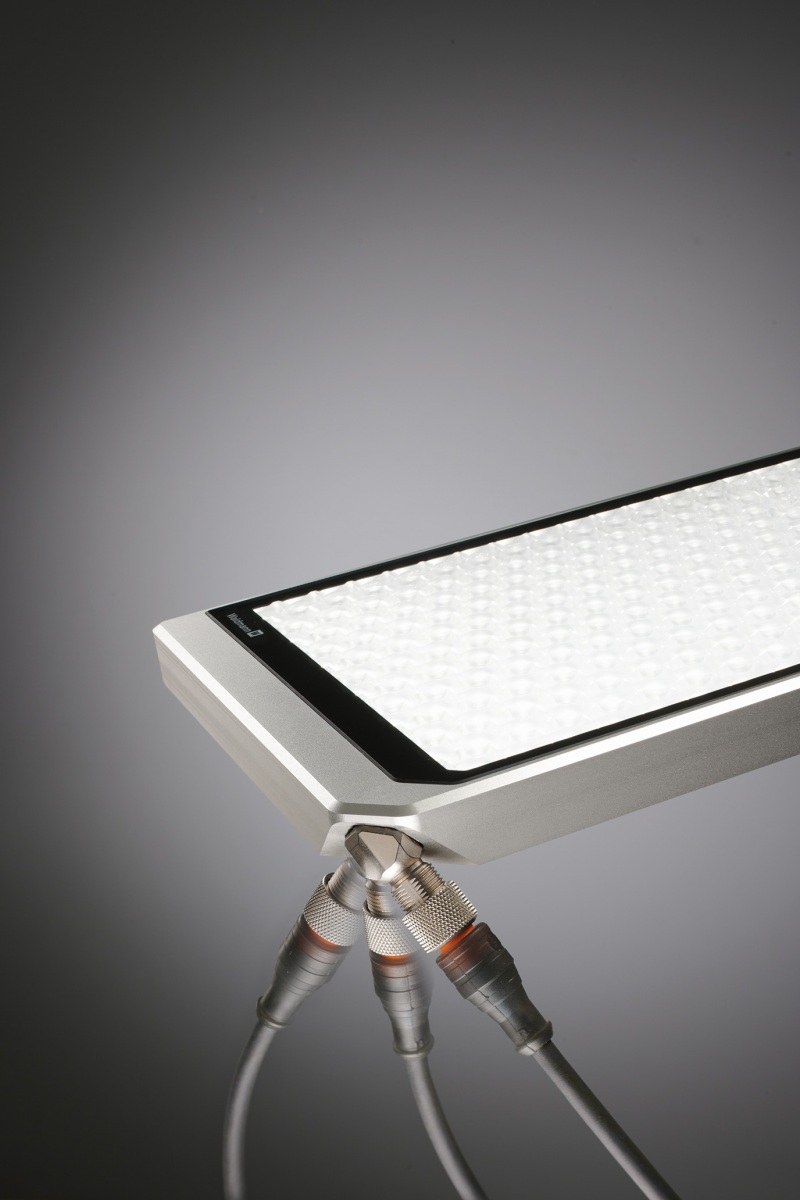

OPTIMAL FLEXIBILITY:


ACURIA’s innovative, rotatable M12 connector plug ensures maximum flexibility and a safer cable run. This means the cables of surface-mounted luminaires can be better protected against damage from chips

  • Sustained cable integrity
  • Simple, flexible connection options
  • Safer conditions for people, equipment and the company as a whole (something we don’t mind repeating here)
OPTIMAL RESILIENCE:


With the use of coolant and lubricant-resistant materials, luminaire degradation is a thing of the past

  • Less downtime due to luminaires affected by lubricants
  • Reduced degradation and lower replacement rates
  • Maximum planning certainty
OPTIMAL PROTECTION:


ACURIA’s shock and vibration-resistant design makes it ideally suited to withstand extreme stresses.

  • Damage-free operation even when jolted
  • Lower life time costs due to minimized replacements following jarring or vibration damage
  • Reduced downtime due to shocks or vibration

OPTIMAL SIZE:

In true Waldmann style, the wide range of luminaire sizes ensures there’s an ACURIA for everyone

  • The clear choice that truly fits  every machine
  • One-stop delivery saves time and money
  • The right luminaire for your space and lighting needs



TECHNICAL DATA AT A GLANCE



Light source: LED
LED service life: > 60,000 h (L70)
Beam angle: 90°
Glare control: Focusing Honeycomb Optics
UGR rating: ≤ 22
Color temperature: 5,000 K (neutral white)
Color rendering Ra: ≥ 80
Connection: M12 connector plug, A-coded, rotatable 360°, 6 x 60° snap-in
Connection voltage: 24 V DC
Protection class: III
Advanced Feature: Digital inputs for on/off and step dimming
Housing/Exterior Material: Colourless anodised aluminium
Lens: 4 mm thick safety glass (ESG)
Mounting: Via spring clips integrated into the rear. No tools required.
Vibration resistance:

10-55 Hz (amplitude 0.35 mm)

Shock proof: ≤ 10 g
Tamax: 50°C (thermal protection at Ta > 50°C)
Protection Class: IP67
Certfication: CE, cETLus

Part No: 114310000-00806651
Length: 8.46"
Width: 2.75"
Wattage: 7
Lumens: 700
Mounting Options: Surface
Spec Sheet:  114310000-00806651.pdf



Part No: 114310000-00806668
Length: 8.46"
Width: 2.75"
Wattage: 12
Lumens: 1400
Mounting Options: Surface
Spec Sheet:  114310000-00806668.pdf



Part No: 114311000-00806645
Length: 15.35"
Width: 2.75"
Wattage: 12
Lumens: 1400
Mounting Options: Surface
Spec Sheet:  114311000-00806645.pdf



Part No: 114312000-00806647
Length: 22.24"
Width: 2.75"
Wattage: 17
Lumens: 2100
Mounting Options: Surface
Spec Sheet:  114312000-00806647.pdf



Part No: 114313000-00806649
Length: 29.13"
Width: 2.75"
Wattage: 22
Lumens: 2800
Mounting Options: Surface
Spec Sheet:  114313000-00806649.pdf



Part No: 114314000-00806633
Length: 8.46"
Width: 6.69"
Wattage: 14
Lumens: 1900
Mounting Options: Surface
Spec Sheet:  114314000-00806633.pdf



Part No: 114315000-00806635
Length: 15.35"
Width: 6.69"
Wattage: 28
Lumens: 3800
Mounting Options: Surface
Spec Sheet:  114315000-00806635.pdf



Part No: 114316000-00806638
Length: 22.24"
Width: 6.69"
Wattage: 42
Lumens: 5700
Mounting Options: Surface
Spec Sheet:  114316000-00806638.pdf



Part No: 114317000-00806643
Length: 29.13"
Width: 6.69"
Wattage: 56
Lumens: 7600
Mounting Options: Surface
Spec Sheet:  114317000-00806643.pdf



Part No: 114318000-00806667
Length: 8.78"
Width: 3.07"
Wattage: 7
Lumens: 700
Mounting Options: Recessed
Spec Sheet:  114318000-00806667.pdf



Part No: 114318000-00806669
Length: 8.78"
Width: 3.07"
Wattage: 12
Lumens: 1400
Mounting Options: Recessed
Spec Sheet:  114318000-00806669.pdf



Part No: 114319000-00806661
Length: 15.67"
Width: 3.07"
Wattage: 12
Lumens: 1400
Mounting Options: Recessed
Spec Sheet:  114319000-00806661.pdf



Part No: 114320000-00806663
Length: 22.56"
Width: 3.07"
Wattage: 17
Lumens: 2100
Mounting Options: Recessed
Spec Sheet:  114320000-00806663.pdf



Part No: 114321000-00806665
Length: 29.45"
Width: 3.07"
Wattage: 22
Lumens: 2800
Mounting Options: Recessed
Spec Sheet:  114321000-00806665.pdf



Part No: 114322000-00806653
Length: 8.78"
Width: 7.01"
Wattage: 14
Lumens: 1900
Mounting Options: Recessed
Spec Sheet:  114322000-00806653.pdf



Part No: 114323000-00806655
Length: 15.67"
Width: 7.01"
Wattage: 28
Lumens: 3800
Mounting Options: Recessed
Spec Sheet:  114323000-00806655.pdf



Part No: 114324000-00806657
Length: 22.56"
Width: 7.01"
Wattage: 42
Lumens: 5700
Mounting Options: Recessed
Spec Sheet:  114324000-00806657.pdf



Part No: 114325000-00806659
Length: 29.45"
Width: 7.01"
Wattage: 56
Lumens: 7600
Mounting Options: Recessed
Spec Sheet:  114325000-00806659.pdf



Part NoLengthWidthWattageLumensMounting OptionsSpec Sheet
114310000-008066518.46"2.75"7700Surface
114310000-008066688.46"2.75"121400Surface
114311000-0080664515.35"2.75"121400Surface
114312000-0080664722.24"2.75"172100Surface
114313000-0080664929.13"2.75"222800Surface
114314000-008066338.46"6.69"141900Surface
114315000-0080663515.35"6.69"283800Surface
114316000-0080663822.24"6.69"425700Surface
114317000-0080664329.13"6.69"567600Surface
114318000-008066678.78"3.07"7700Recessed
114318000-008066698.78"3.07"121400Recessed
114319000-0080666115.67"3.07"121400Recessed
114320000-0080666322.56"3.07"172100Recessed
114321000-0080666529.45"3.07"222800Recessed
114322000-008066538.78"7.01"141900Recessed
114323000-0080665515.67"7.01"283800Recessed
114324000-0080665722.56"7.01"425700Recessed
114325000-0080665929.45"7.01"567600Recessed

ACURIA



Description
Part Number
Capacitive contact sensor with M12 plug connectors
114129000-00805353
Laser-based time-of-flight sensor with M12 plug connectors
114128000-00805352
5-pin A-coded 5 m; 5 x 0.34 mm² Cable diam. 5 mm
Note: Cable included with light
 US0009001
5-pin A-coded 5 m; 5 x 0.34 mm² Cable diam. 5 mm 90° Angle
Note: Cable for the light sold separately
 US0009011




ACURIA IMPACT PROTECTION
ACURIA HEAT PROTECTED
ACURIA LUBRICANT PROTECTED
ACURIA FLEXIBLE CONNECTOR
